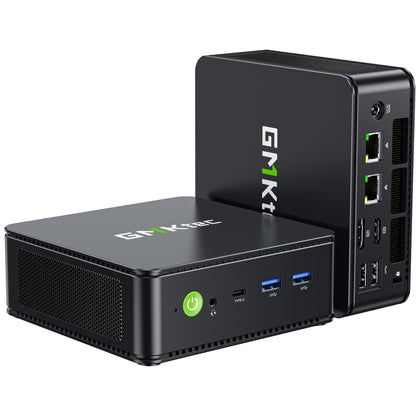

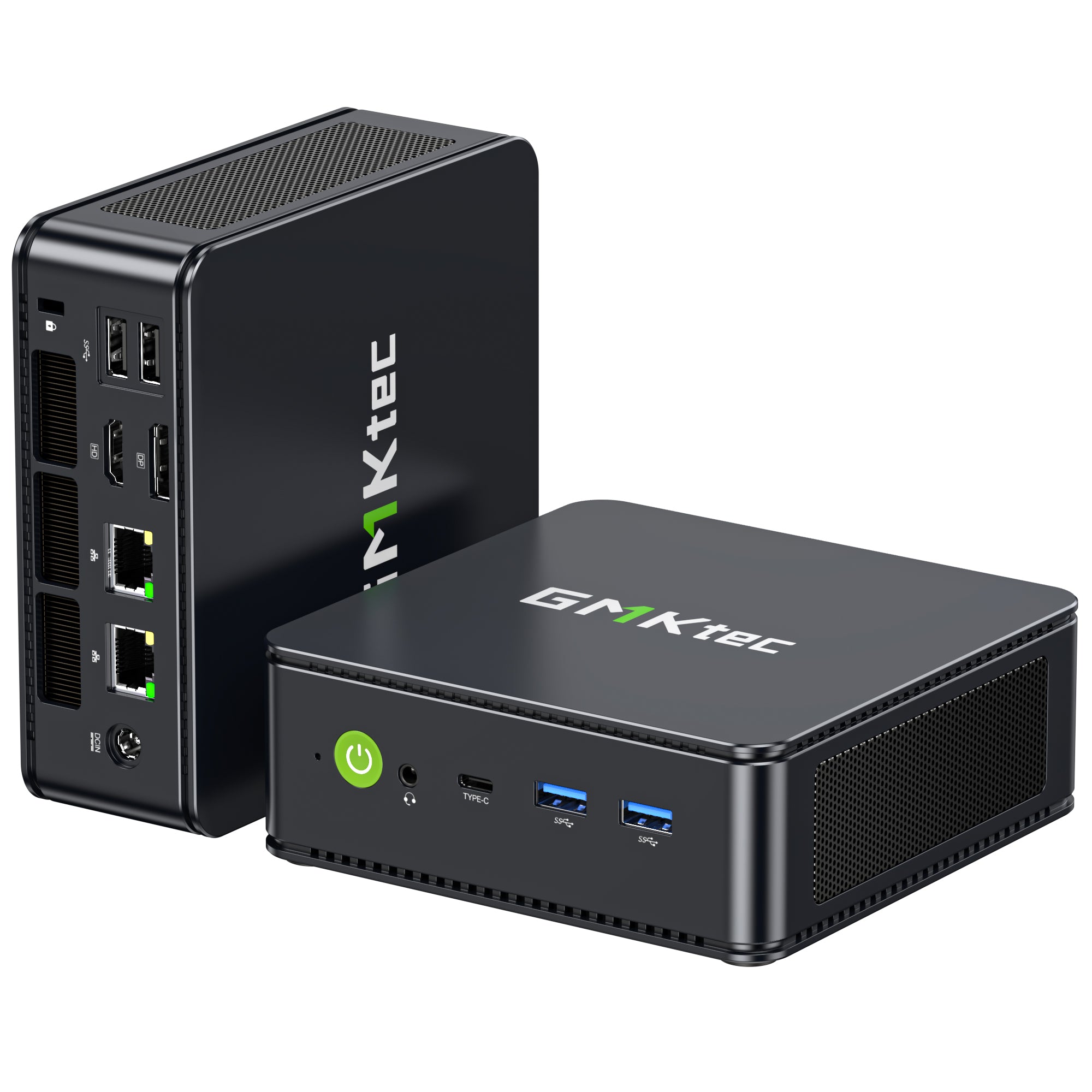

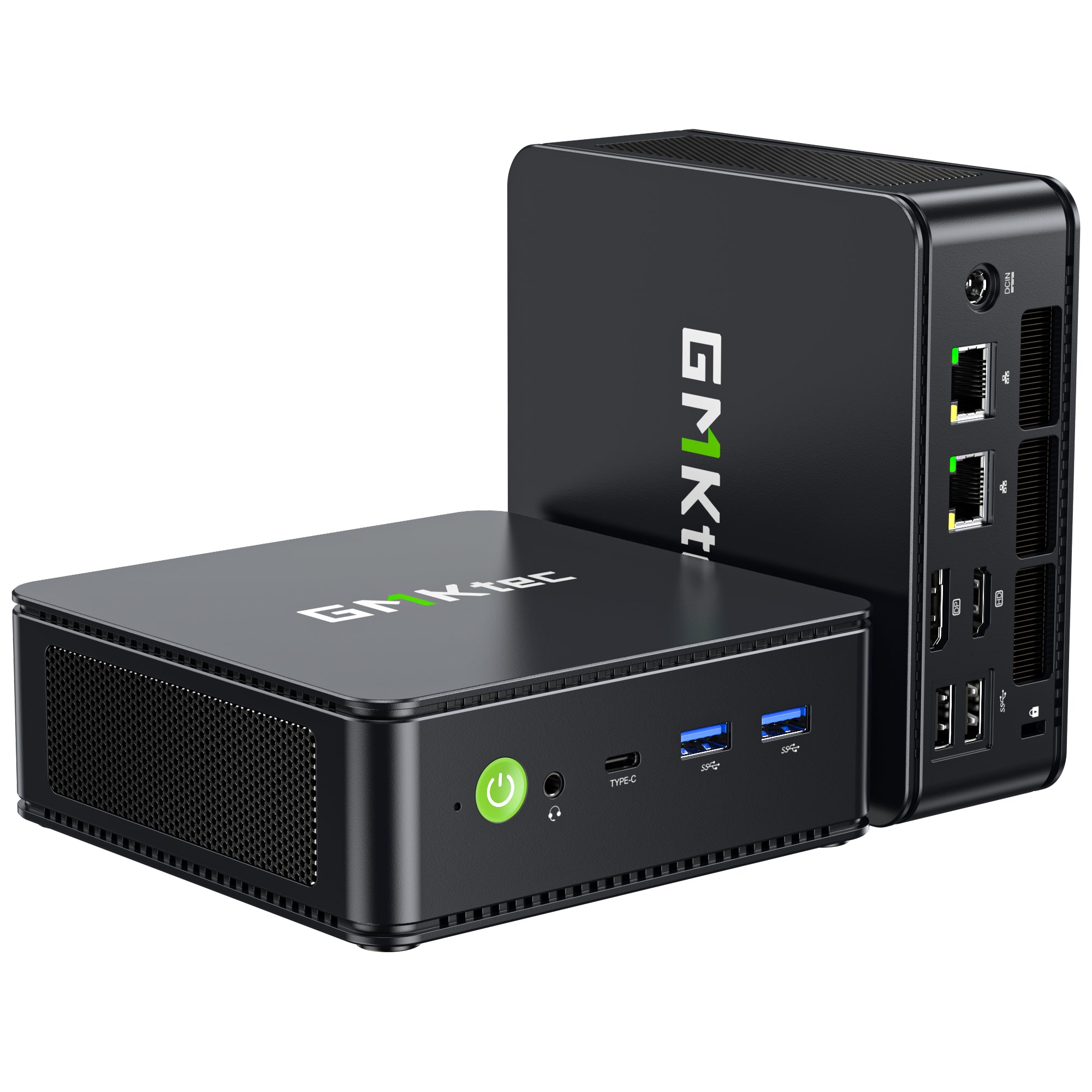

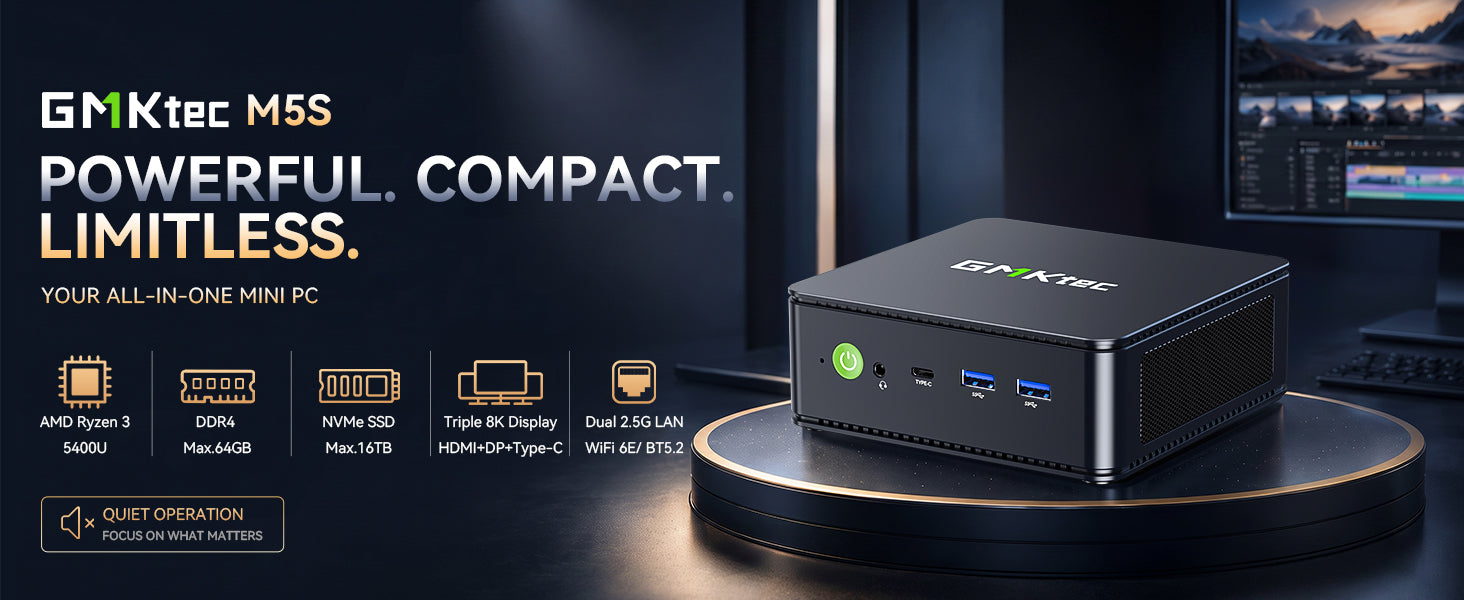

GMKtec NucBox M5S AMD Ryzen™ 3 5400U Mini PC
£239.99
£329.99
- Processor: Powered by AMD Ryzen™ 3 5400U with 4 cores, 8 threads, a 2.6GHz base clock and up to 4.0GHz boost for responsive everyday computing.
- Graphics & Display: Features AMD Radeon™ Graphics with 6 graphics cores at up to 1600MHz, supporting three displays via HDMI 2.0, DisplayPort 1.4 and USB-C, with up to 8K@60Hz output through DisplayPort.

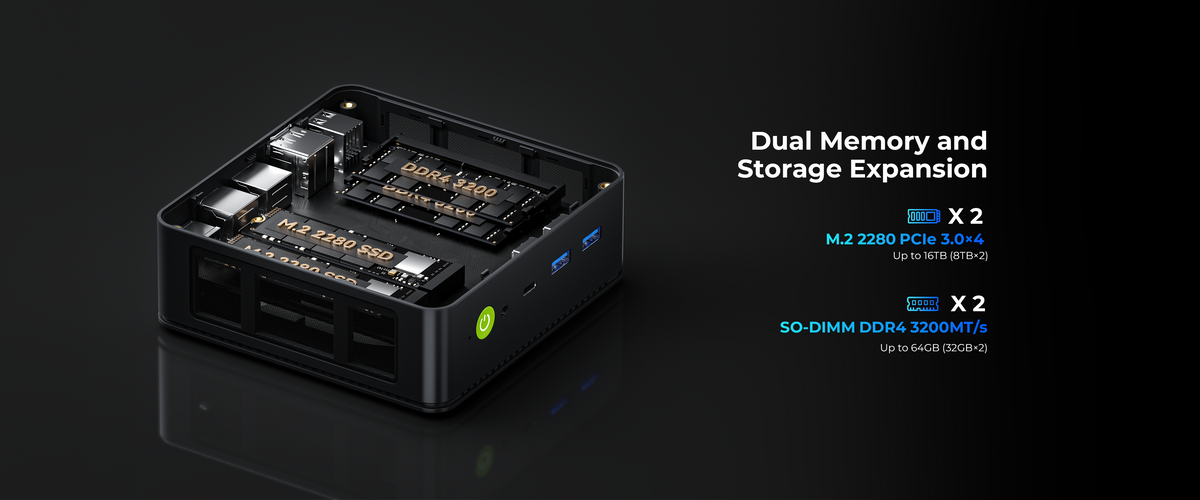

- Memory & Storage: Supports dual-channel DDR4-3200 memory across two SO-DIMM slots, expandable up to 64GB, plus two M.2 2280 PCIe 3.0 x4 SSD slots supporting up to 16TB total storage.
- Connectivity: Includes WiFi 6E, Bluetooth 5.2, dual 2.5G LAN, two USB 3.2 Gen 2 ports, two USB 2.0 ports and a multifunction USB-C port supporting data, PD power and video output.

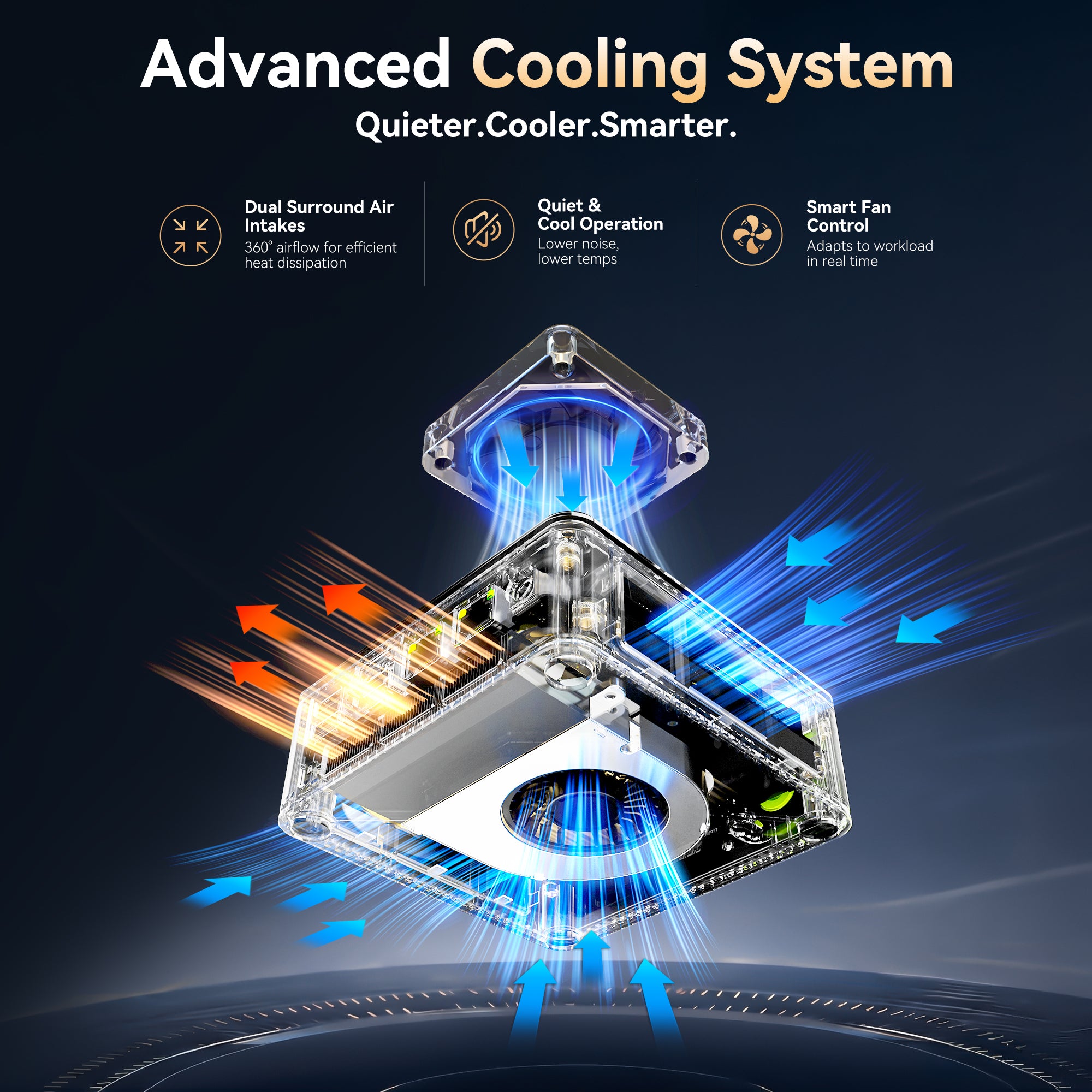

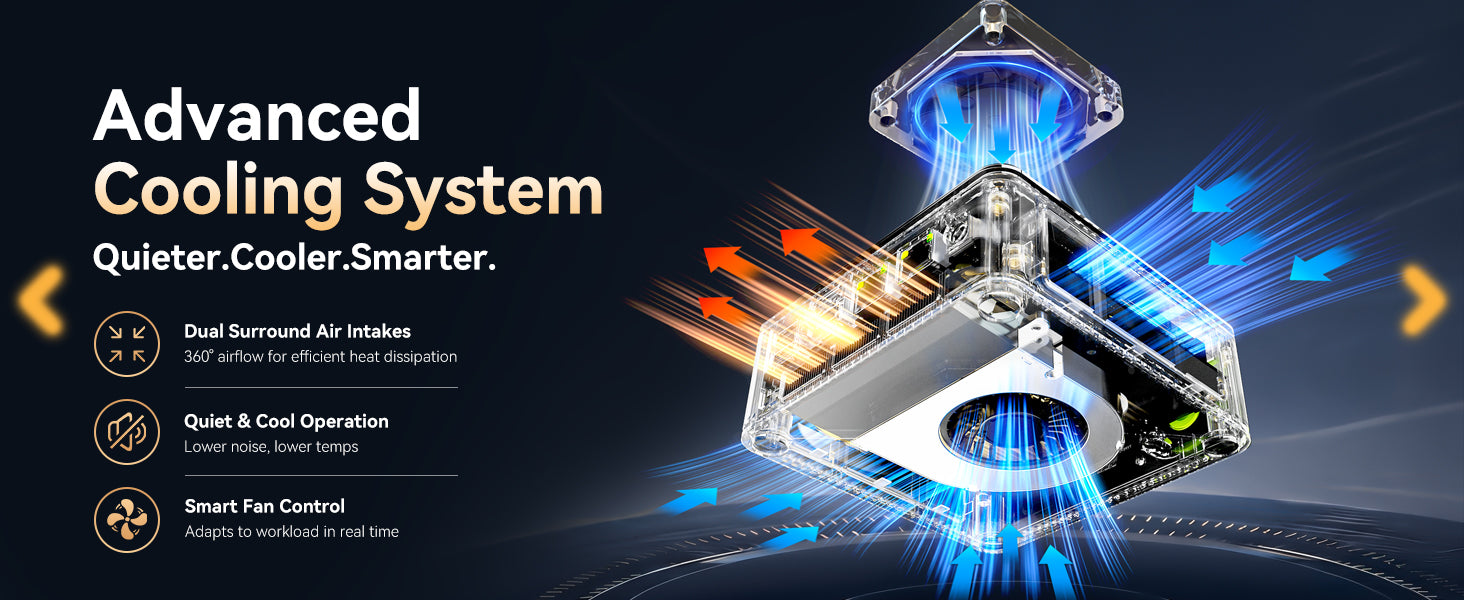

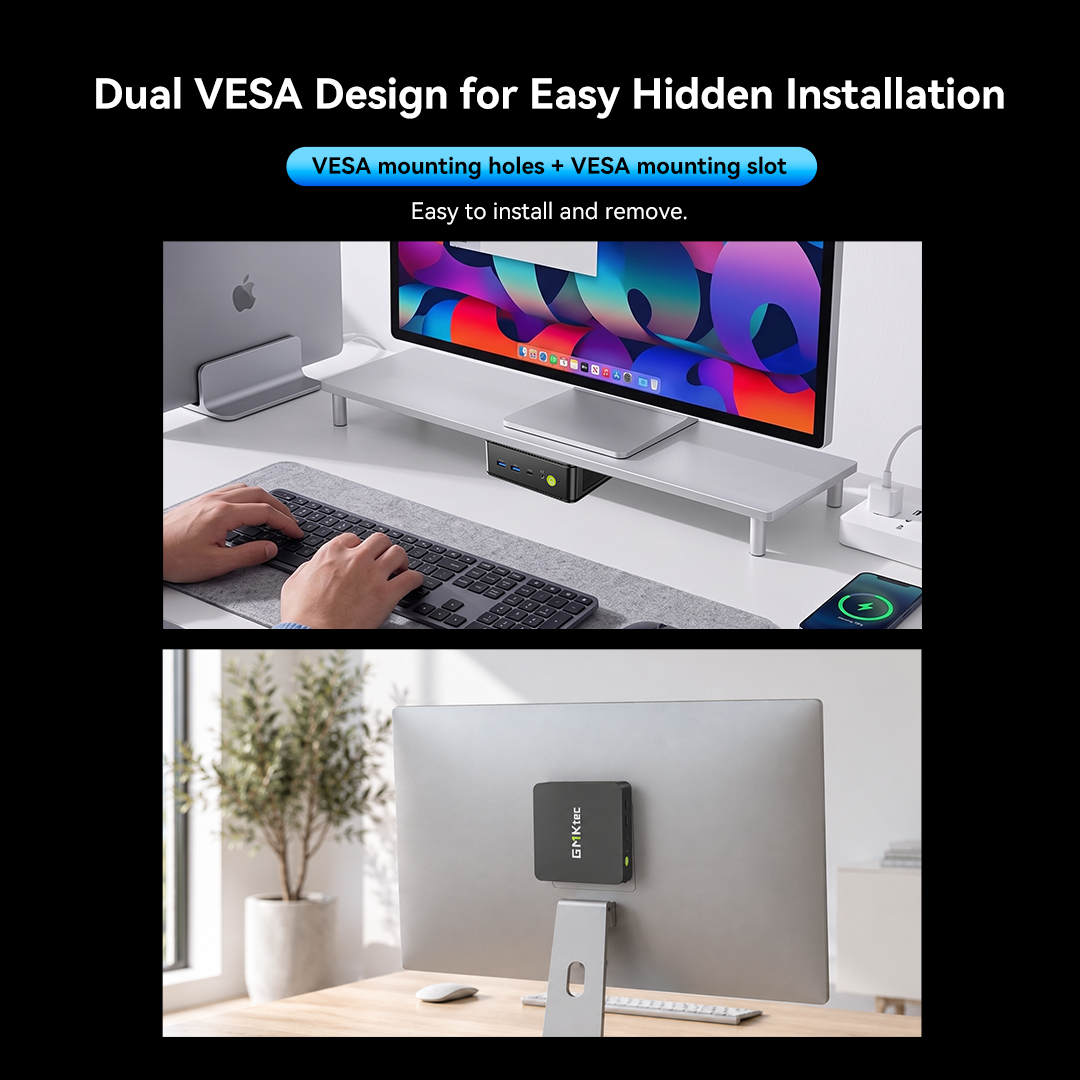

- Compact Cooling Design: Features a copper heat pipe, dual-fan cooling, quick-access memory and storage expansion, and VESA mounting support in a compact 128.8 × 127 × 47.8mm chassis.
GMKtec NucBox M5S AMD Ryzen™ 3 5400U Mini PC
£239.99
£329.99
Specification
General
CPU

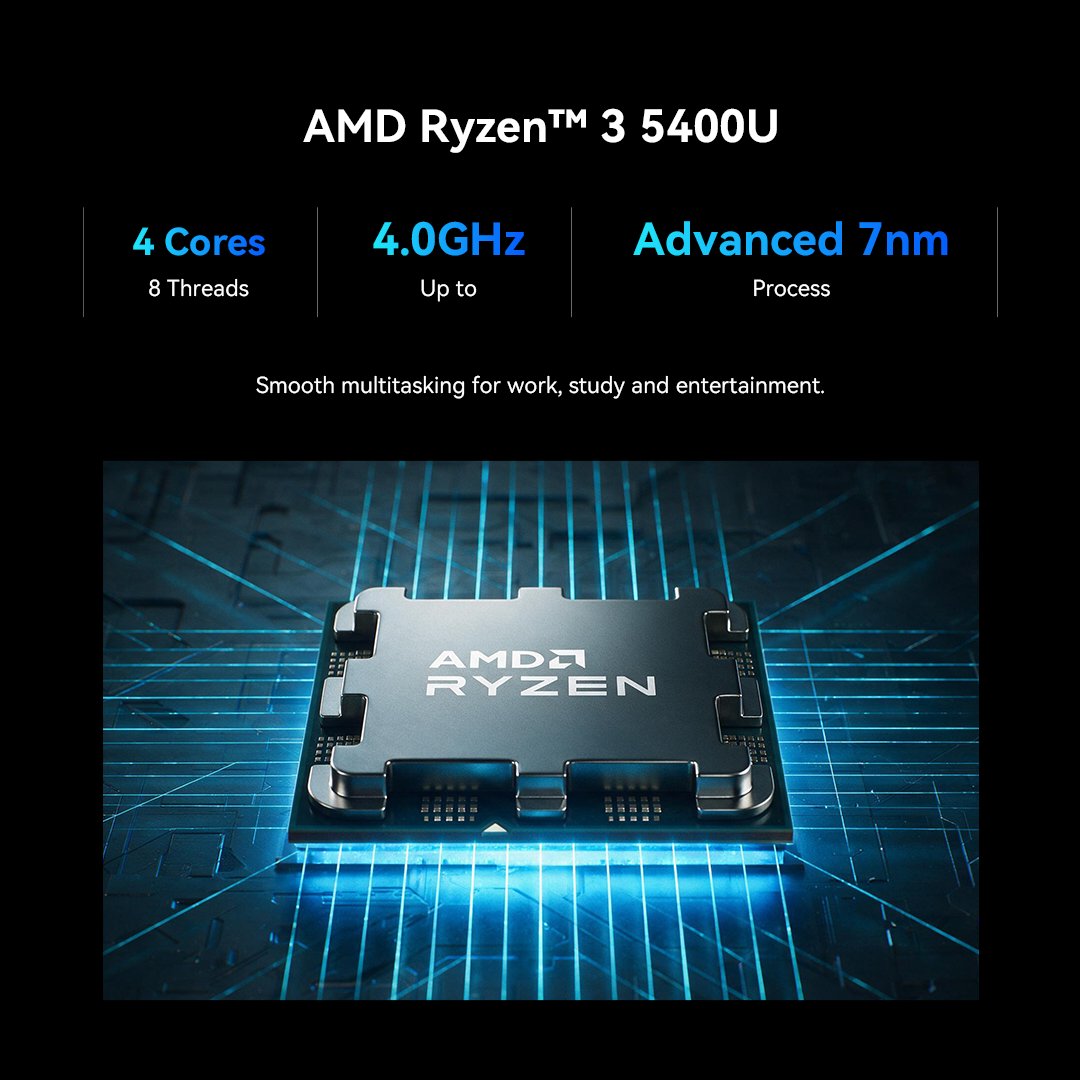

AMD Ryzen™ 3 5400U Processor
Ryzen™ 5000 Series
4 Cores / 8 Threads
TSMC 7nm FinFET Process, FP6 Package
Base Clock: 2.6GHz
Max Boost Clock: Up to 4.0GHz
Cache: 2MB L2 / 8MB L3
Default TDP: 15W

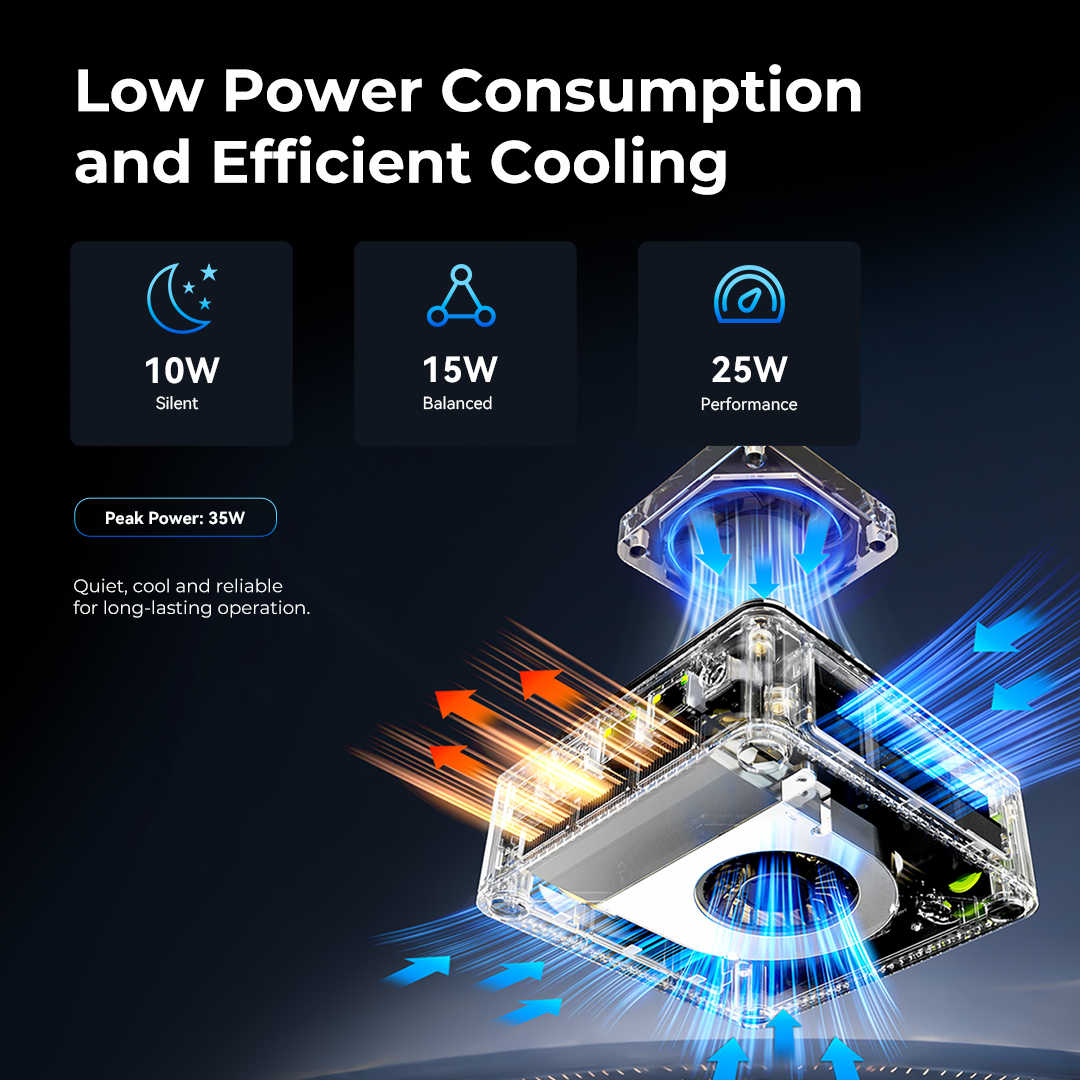

GMKtec Power Modes: Silent 10W / Balanced 15W / Performance 25W / Peak 35W
Ryzen™ 5000 Series
4 Cores / 8 Threads
TSMC 7nm FinFET Process, FP6 Package
Base Clock: 2.6GHz
Max Boost Clock: Up to 4.0GHz
Cache: 2MB L2 / 8MB L3
Default TDP: 15W
GMKtec Power Modes: Silent 10W / Balanced 15W / Performance 25W / Peak 35W
GPU
AMD Radeon™ Graphics
6 Graphics Cores
Graphics Frequency: 1600MHz
6 Graphics Cores
Graphics Frequency: 1600MHz

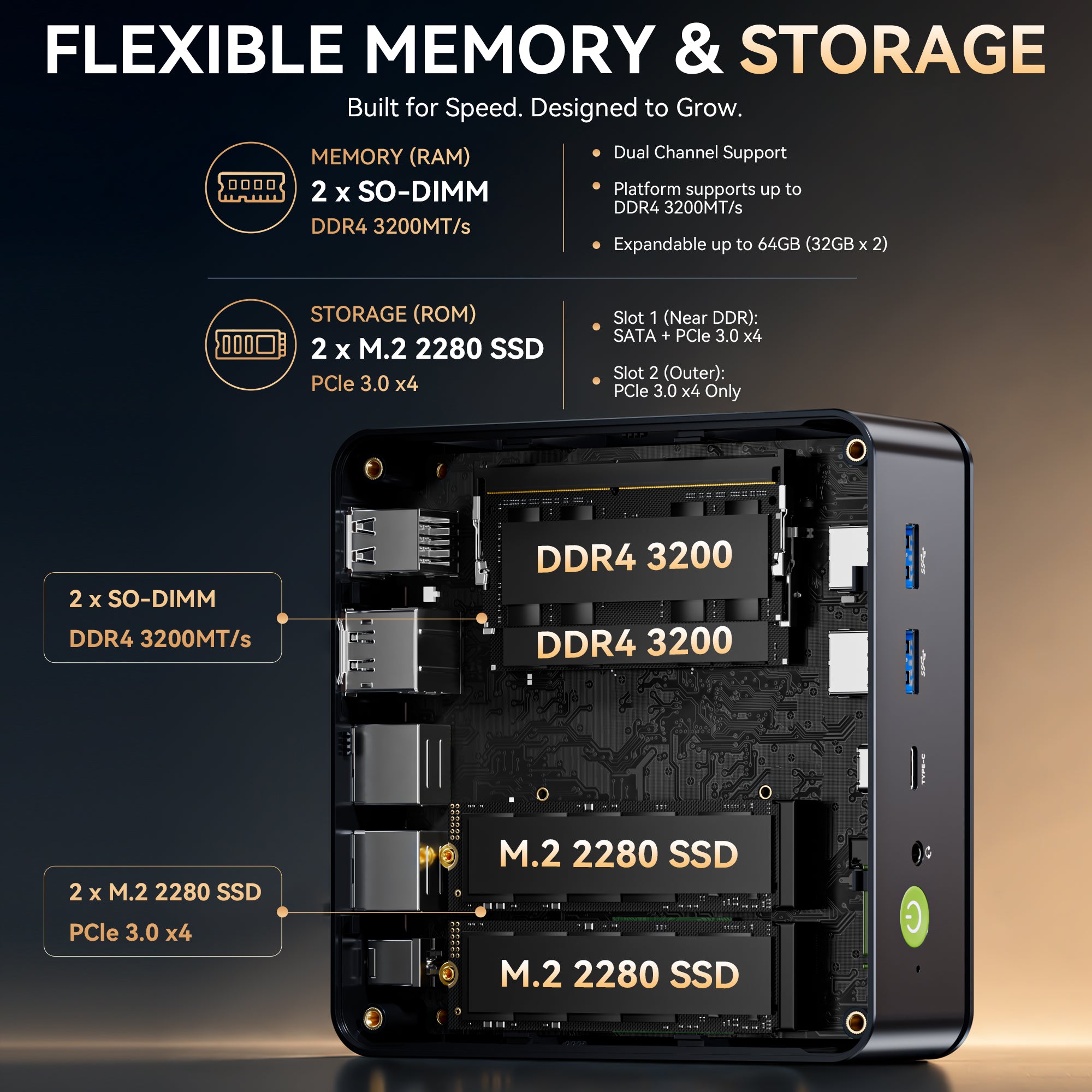

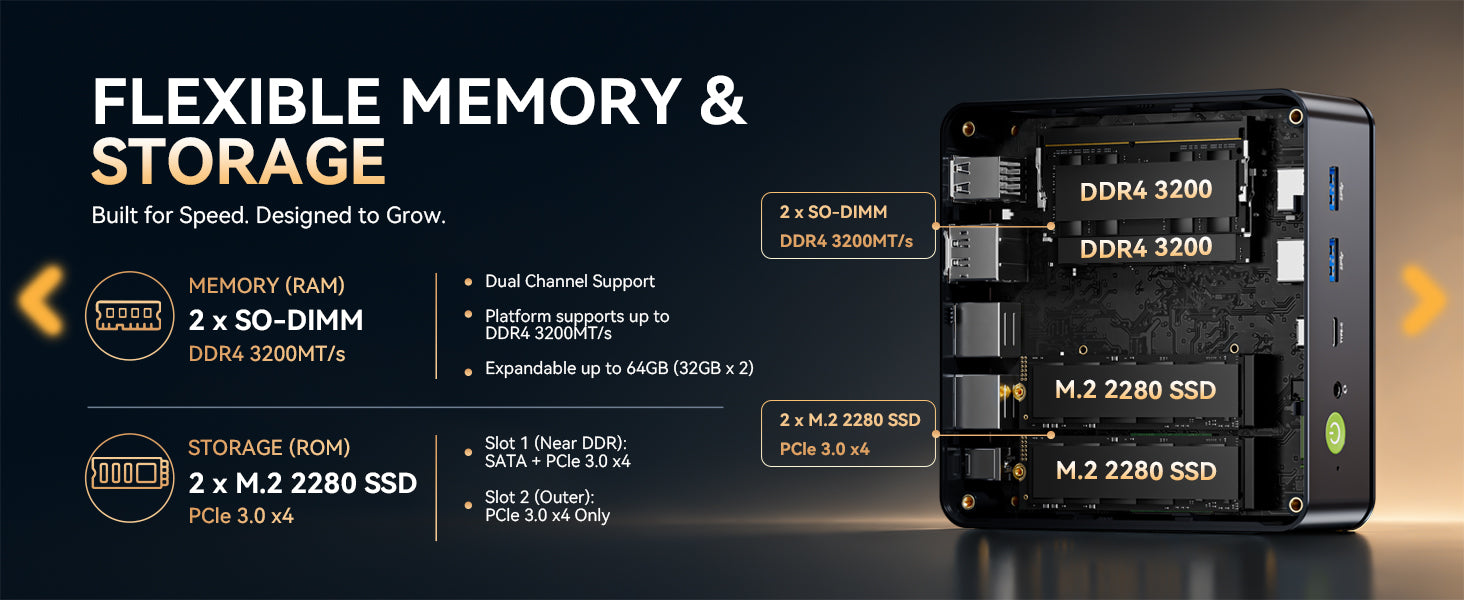

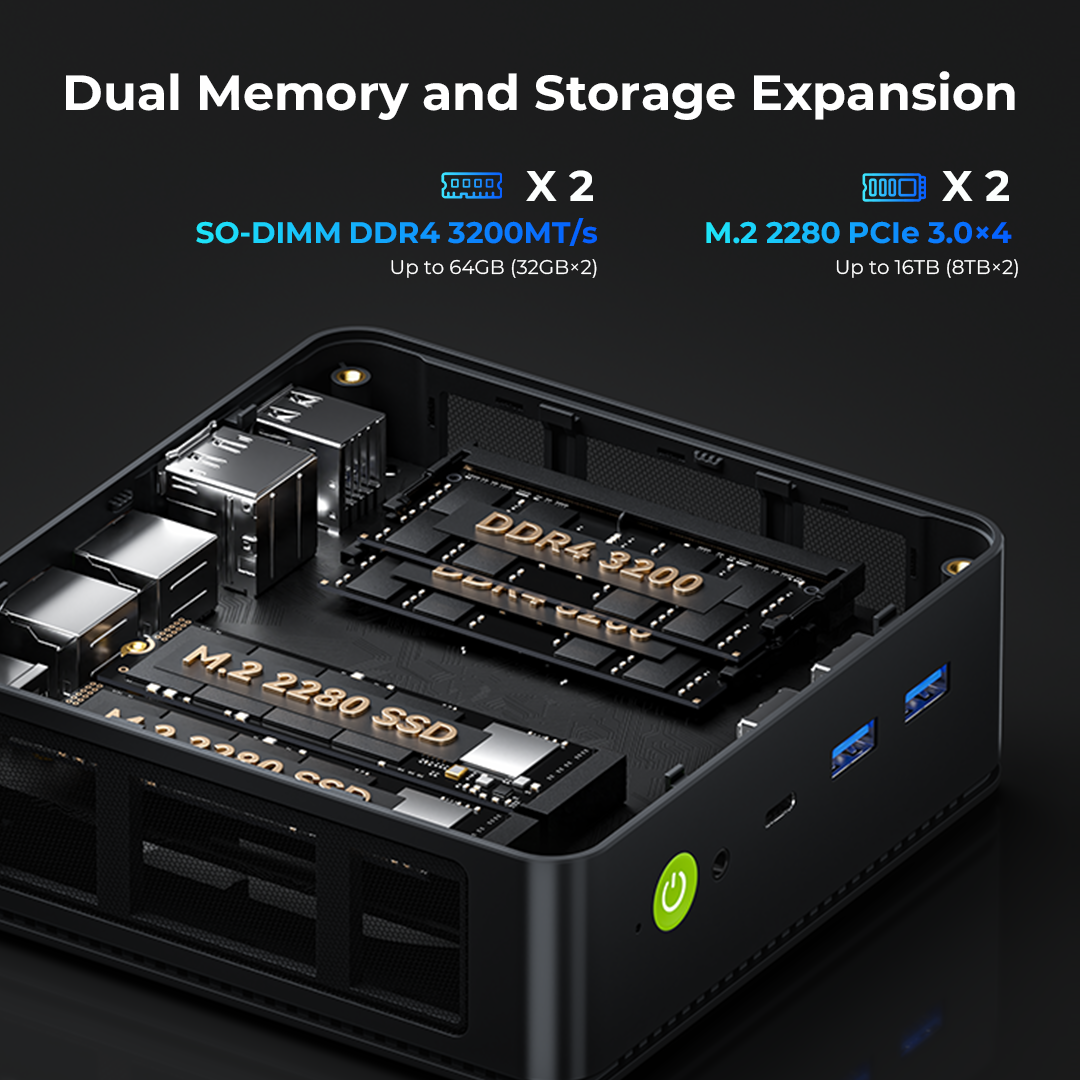

RAM
2 × SO-DIMM Slots
DDR4 3200 MT/s, Dual-Channel
16GB / 32GB Options
Expandable up to 64GB
DDR4 3200 MT/s, Dual-Channel
16GB / 32GB Options
Expandable up to 64GB
Storage
2 × M.2 2280 SSD Slots
PCIe 3.0 ×4
512GB / 1TB Options
Maximum Expansion: 16TB (8TB × 2)
Slot 1 (Near RAM): SATA + PCIe 3.0 ×4
Slot 2 (Outer): PCIe 3.0 ×4 Only
PCIe 3.0 ×4
512GB / 1TB Options
Maximum Expansion: 16TB (8TB × 2)
Slot 1 (Near RAM): SATA + PCIe 3.0 ×4
Slot 2 (Outer): PCIe 3.0 ×4 Only
Graphics Output
1 × HDMI 2.0 (4K@60Hz)
1 × DisplayPort 1.4 (Up to 8K@60Hz)
1 × Type-C DisplayPort (4K@60Hz)

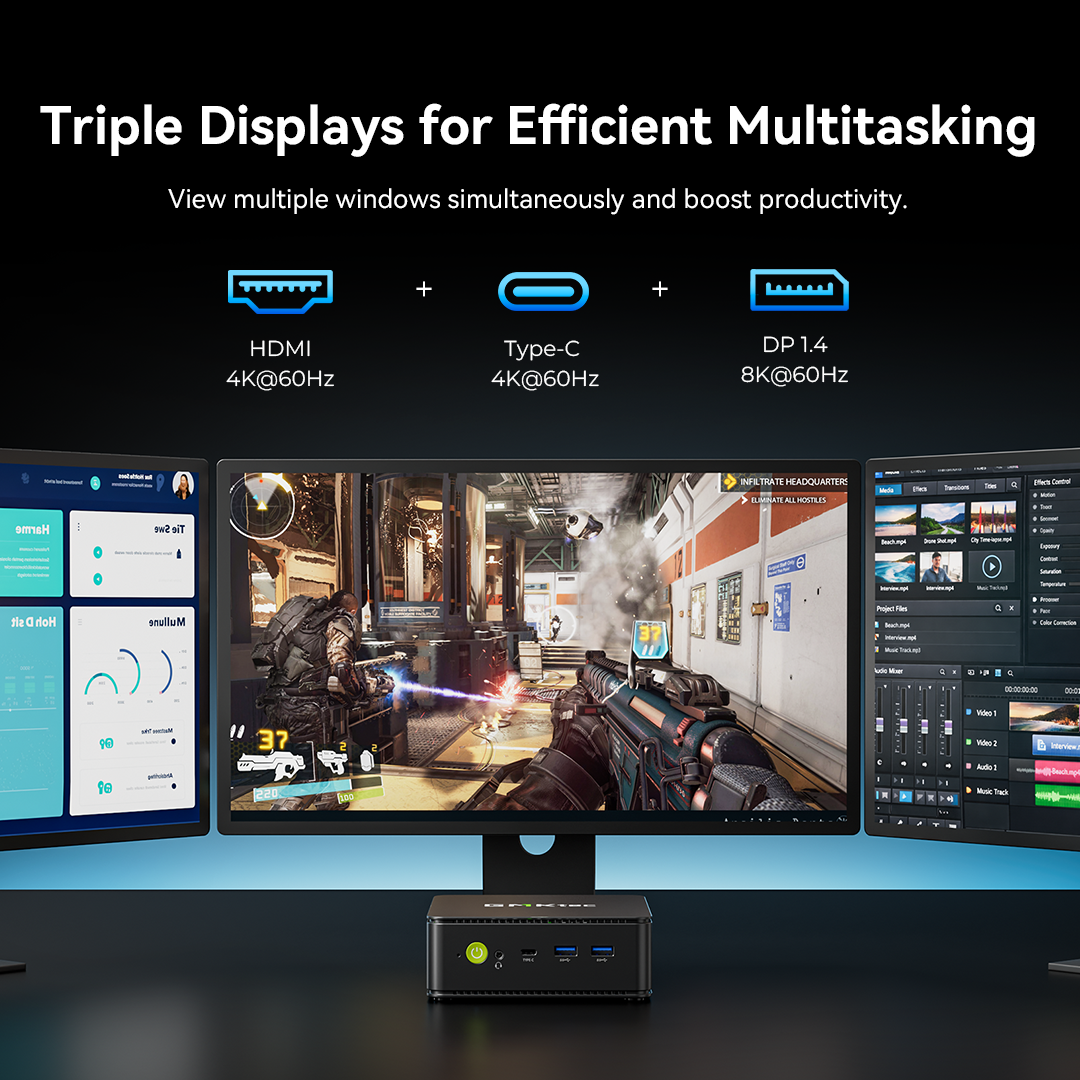

Supports Triple-Display Output
Maximum Resolution: Up to 8K@60Hz via DisplayPort
1 × DisplayPort 1.4 (Up to 8K@60Hz)
1 × Type-C DisplayPort (4K@60Hz)
Supports Triple-Display Output
Maximum Resolution: Up to 8K@60Hz via DisplayPort
Wireless Connectivity
WiFi 6E (RZ616, Up to 2.4Gbps)
Bluetooth 5.2
Bluetooth 5.2

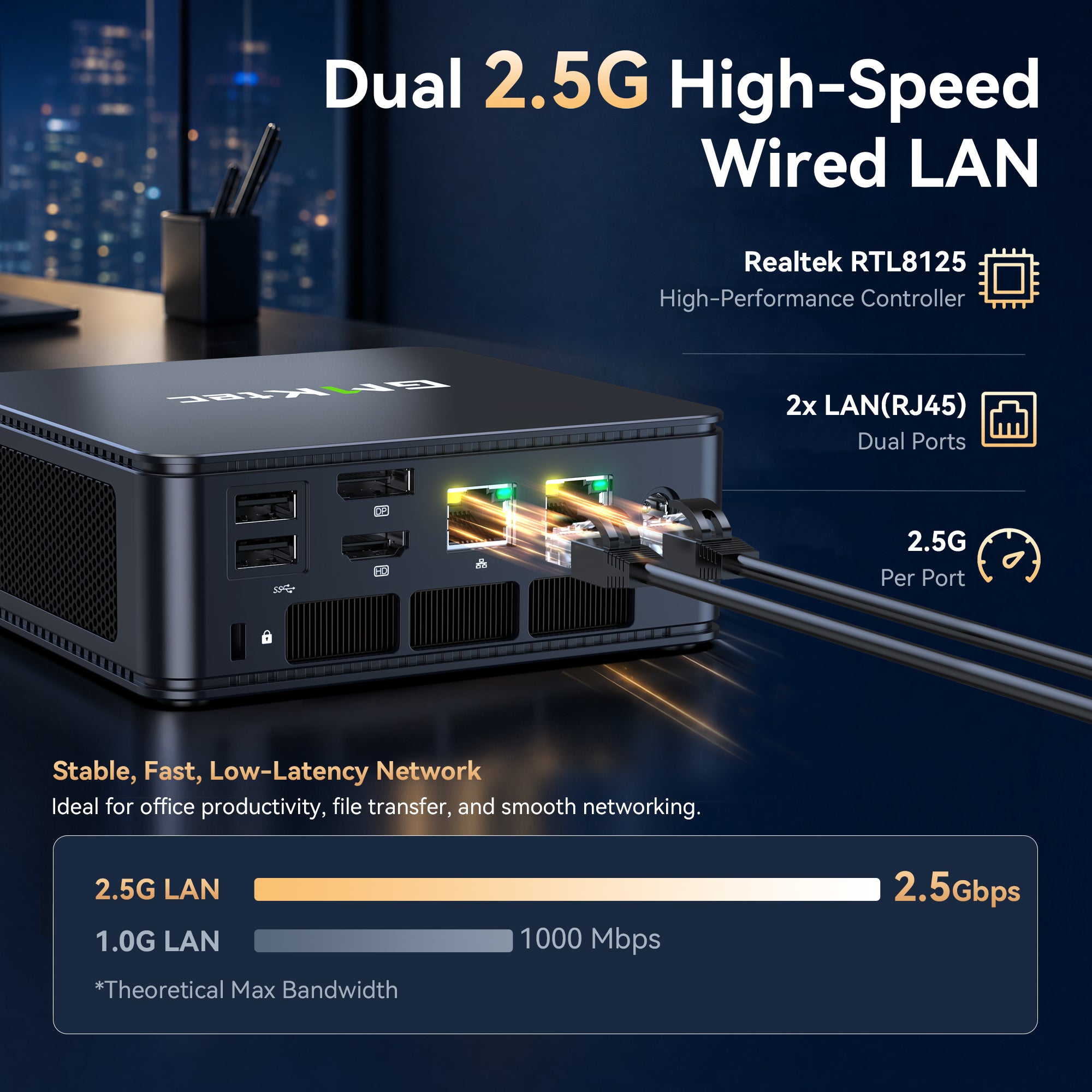

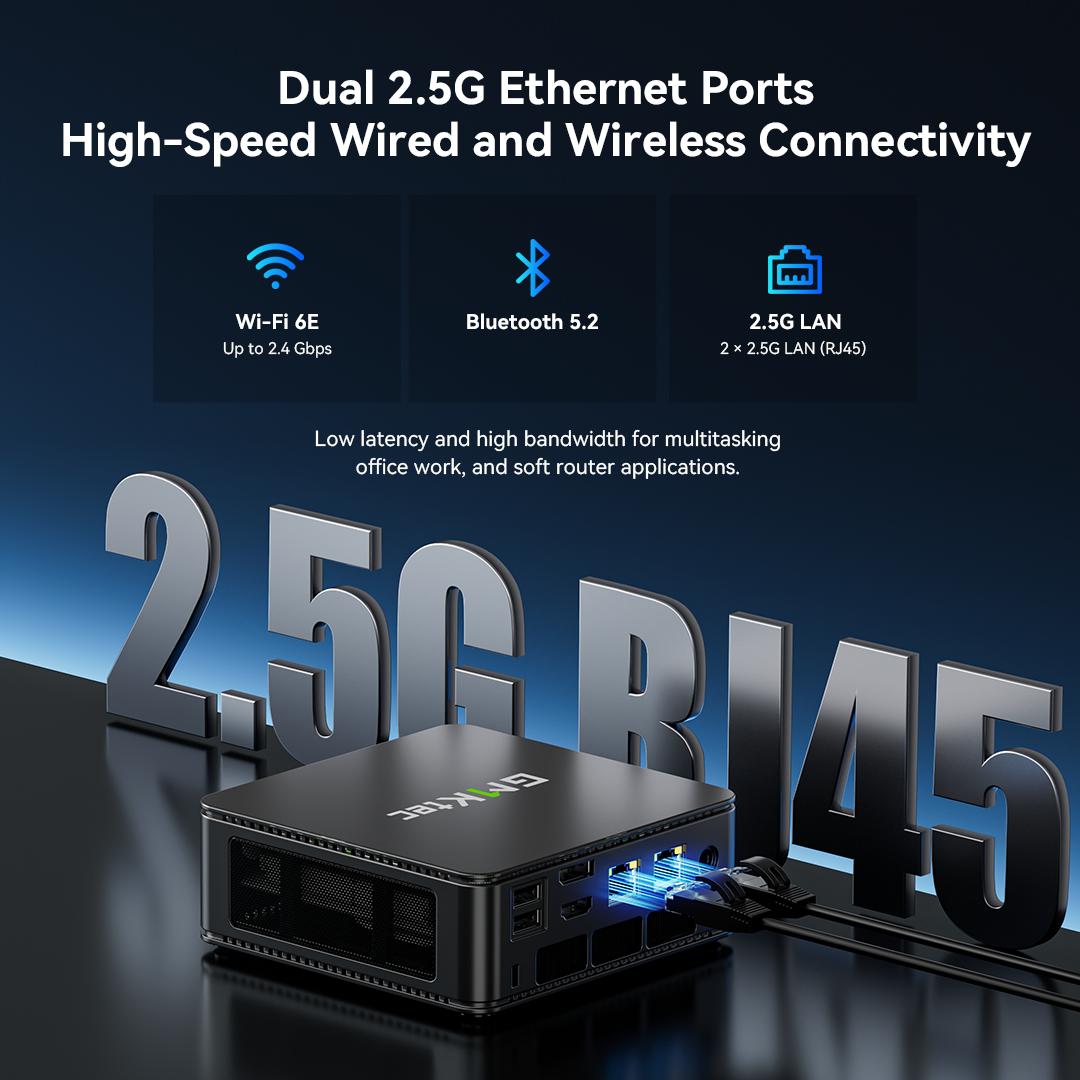

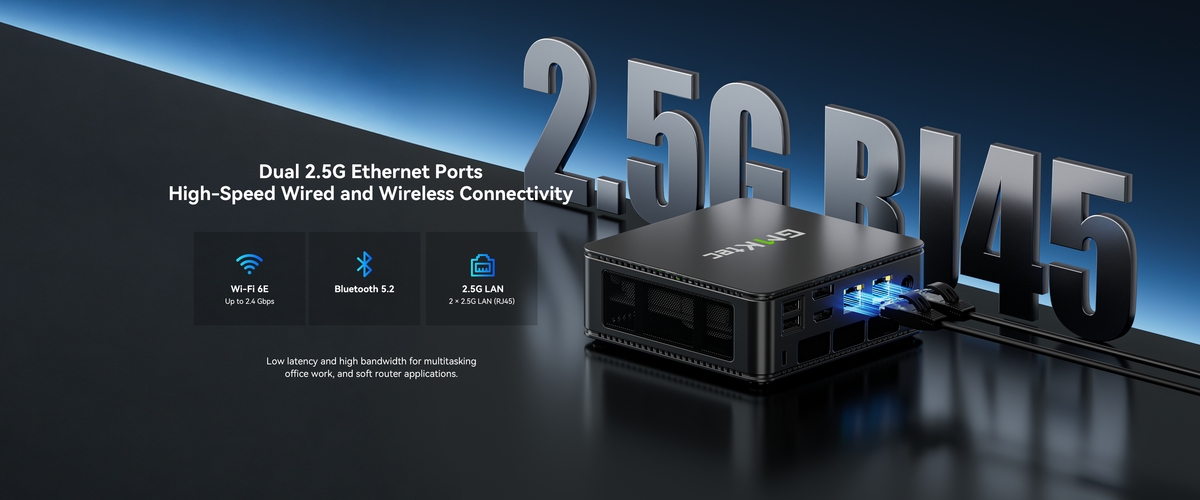

Wired Network
Dual 2.5G Ethernet
2 × RJ45 Ports
Realtek RTL8125 Controller
2 × RJ45 Ports
Realtek RTL8125 Controller

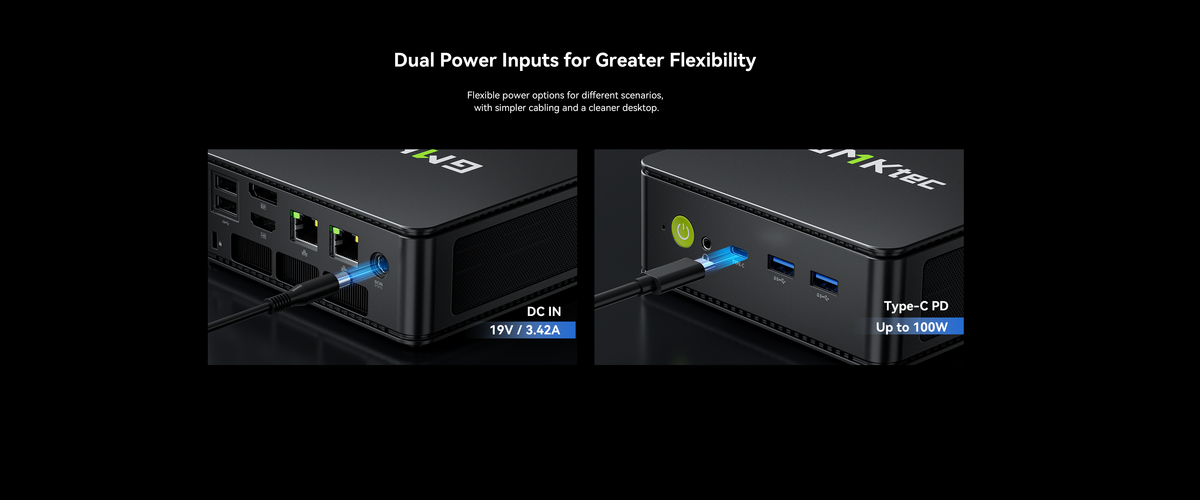

Power Supply

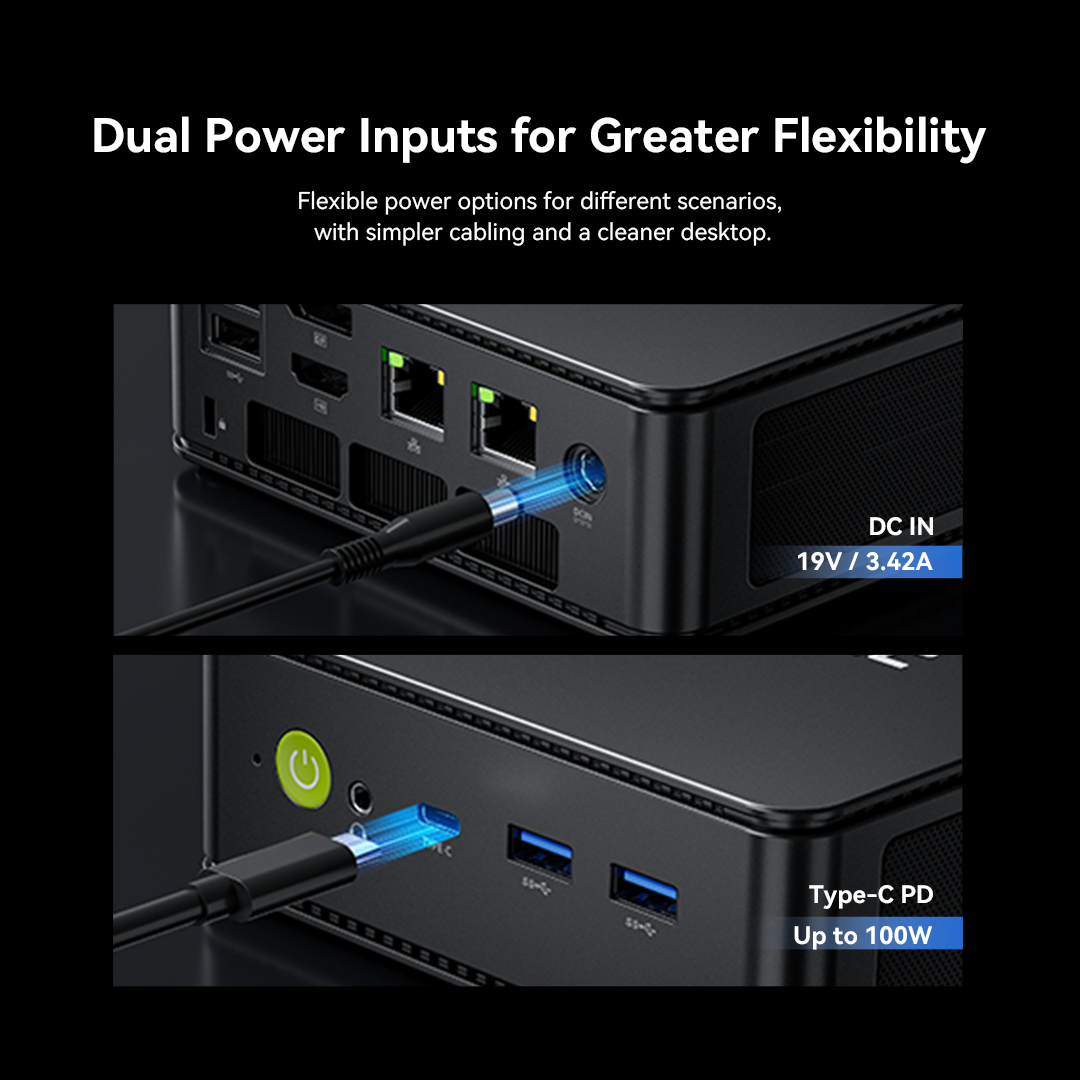

DC IN: 19V / 3.42A
DC Connector: 5.5 × 2.5mm
Built-in CMOS Button Battery
DC Connector: 5.5 × 2.5mm
Built-in CMOS Button Battery

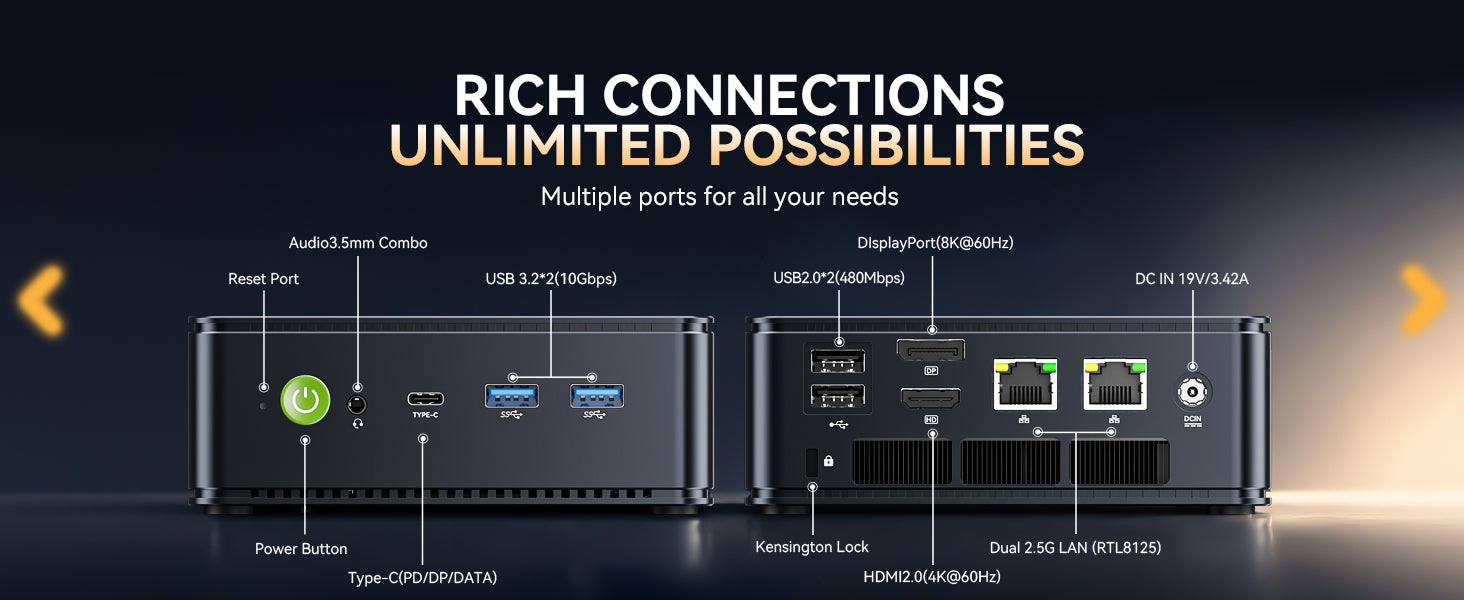

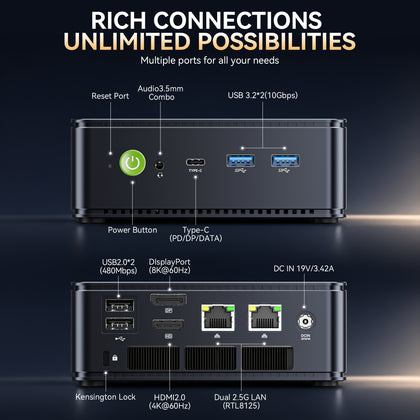

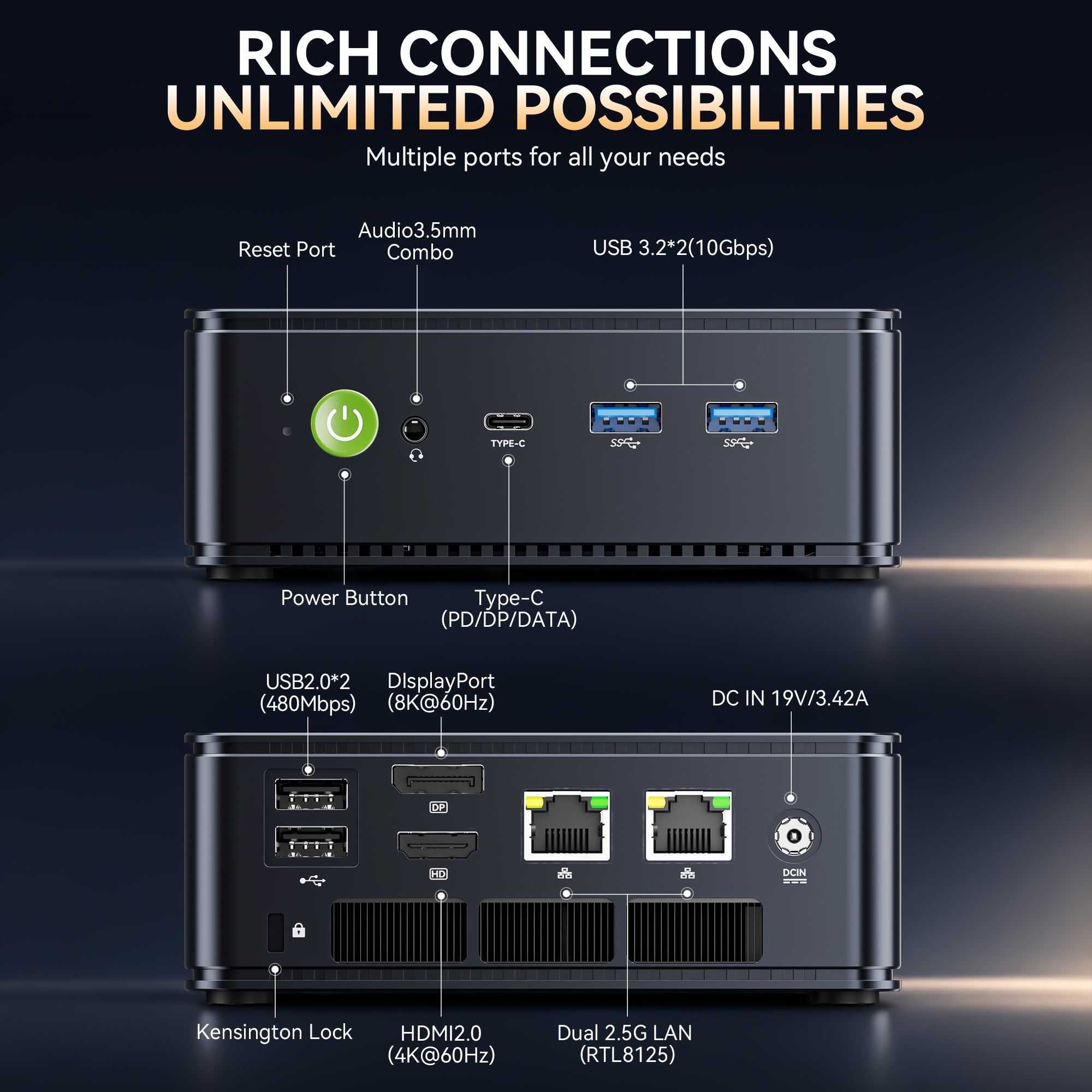

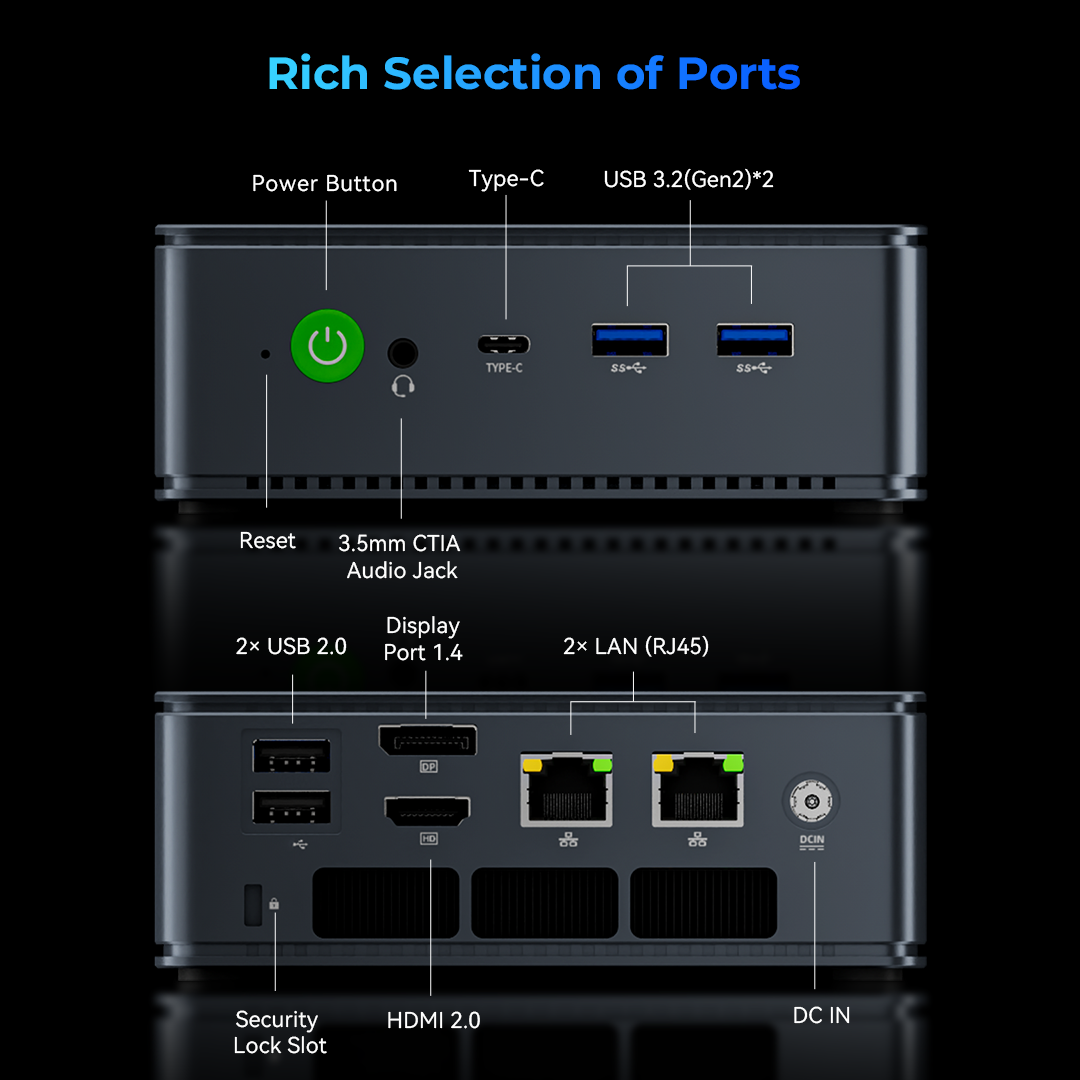

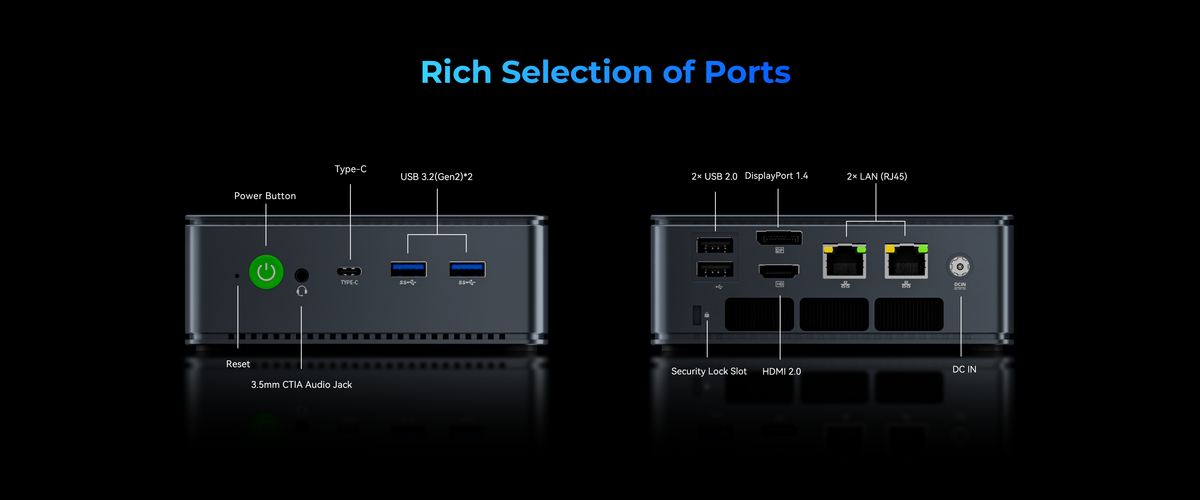

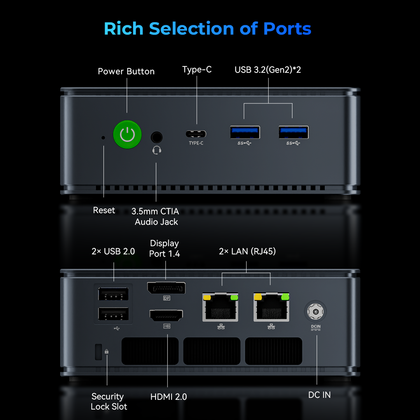

Interfaces
2 × USB 3.2 Gen2 Type-A (10Gbps, Front)
2 × USB 2.0 Type-A (480Mbps, Rear)
1 × Type-C (USB 3.2 Gen2, DP/PD, 10Gbps, Front)
1 × HDMI 2.0 (4K@60Hz)
1 × DisplayPort 1.4 (Up to 8K@60Hz)
1 × 3.5mm Audio Jack, CTIA (Front)
2 × 2.5G Ethernet Ports
1 × Kensington Lock Slot
1 × Reset Button
2 × USB 2.0 Type-A (480Mbps, Rear)
1 × Type-C (USB 3.2 Gen2, DP/PD, 10Gbps, Front)
1 × HDMI 2.0 (4K@60Hz)
1 × DisplayPort 1.4 (Up to 8K@60Hz)
1 × 3.5mm Audio Jack, CTIA (Front)
2 × 2.5G Ethernet Ports
1 × Kensington Lock Slot
1 × Reset Button
Operating System
Supports Windows 11 Pro
Supports 14 Languages
Default Language: English
Supports 14 Languages
Default Language: English

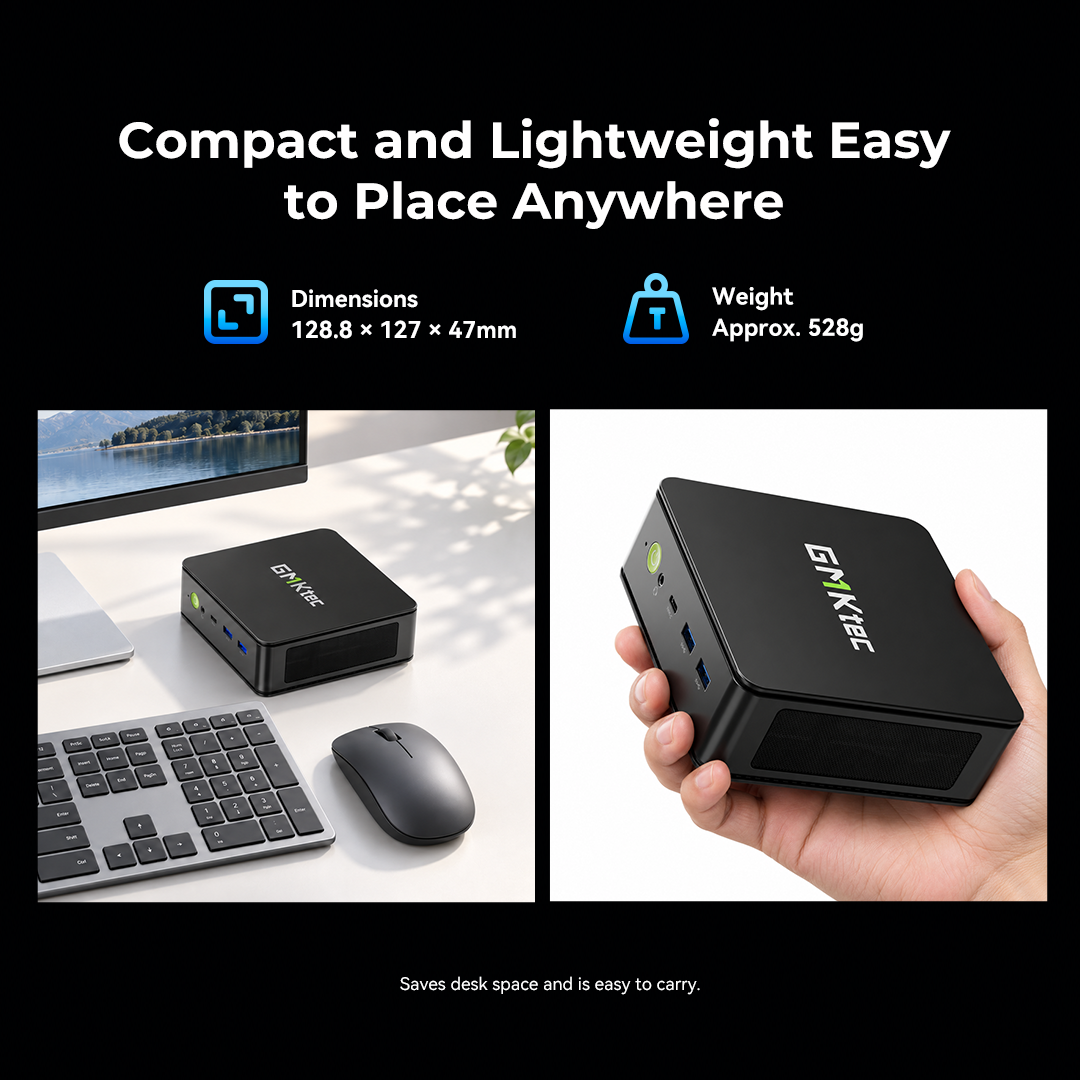

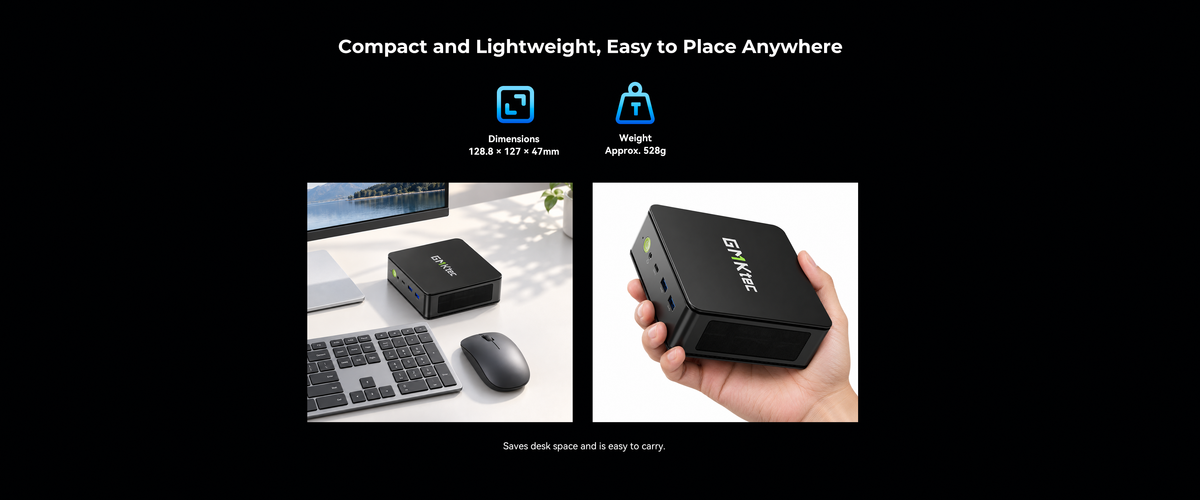

Weight
Bare Unit: Approx. 528g
Full Package: Approx. 1,440g
Full Package: Approx. 1,440g

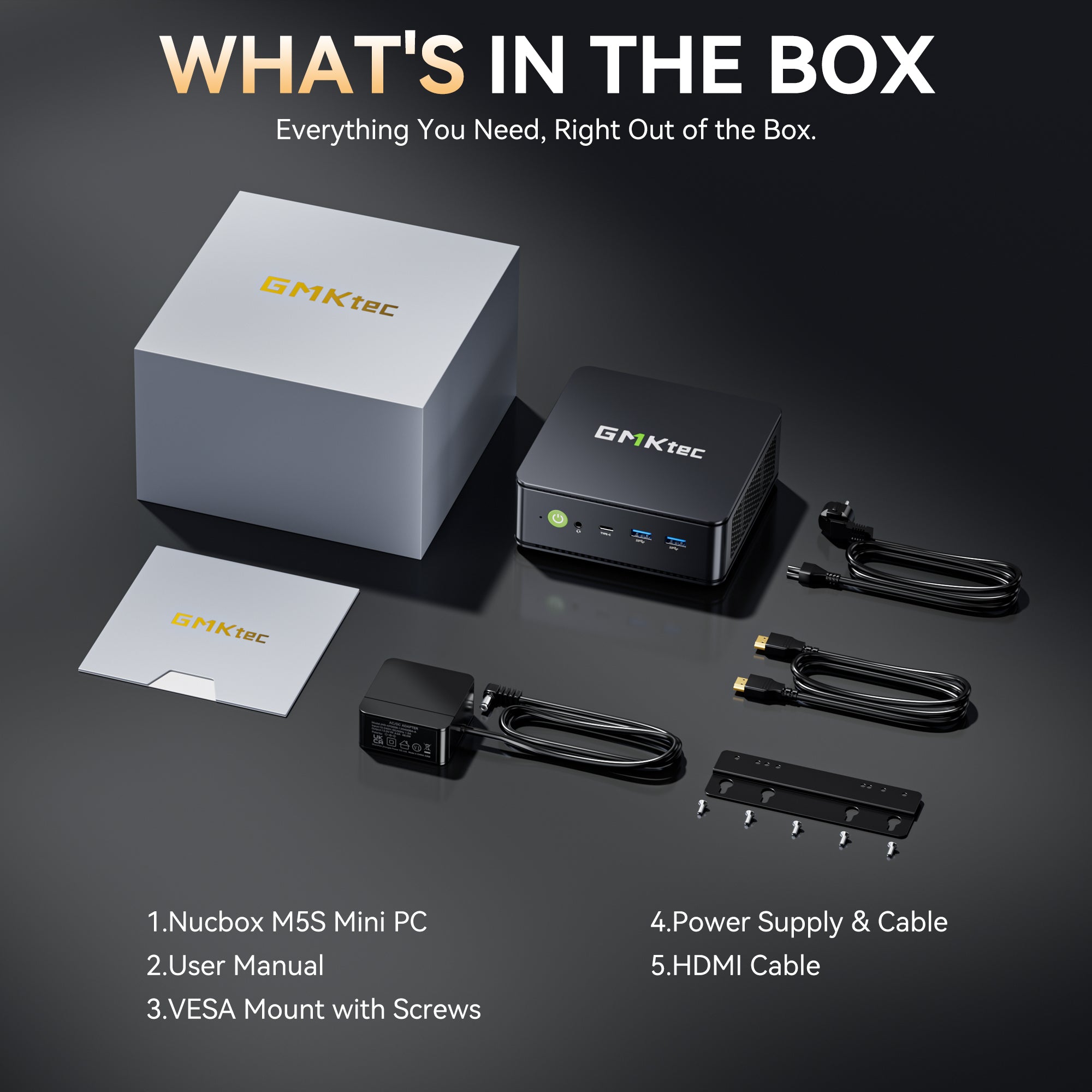

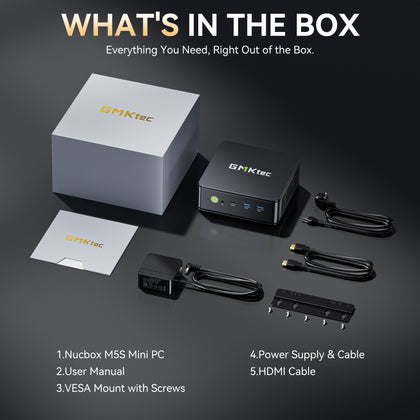

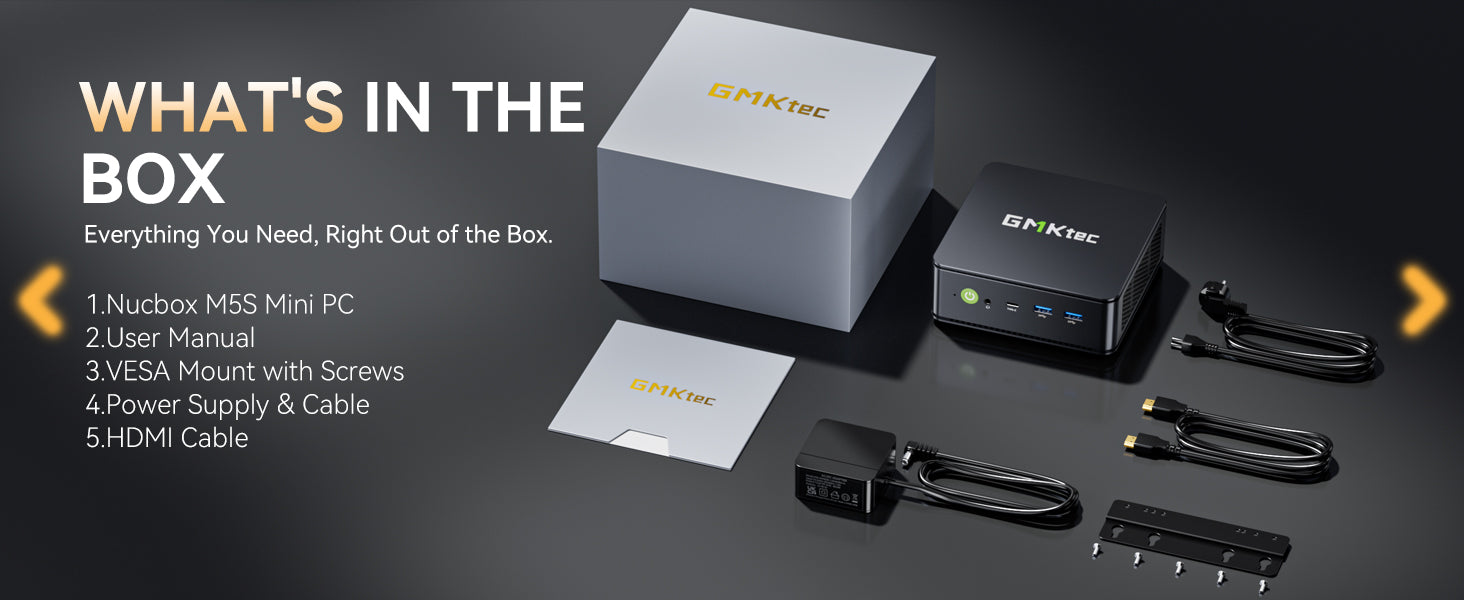

Included Accessories
Power Adapter
HDMI Cable

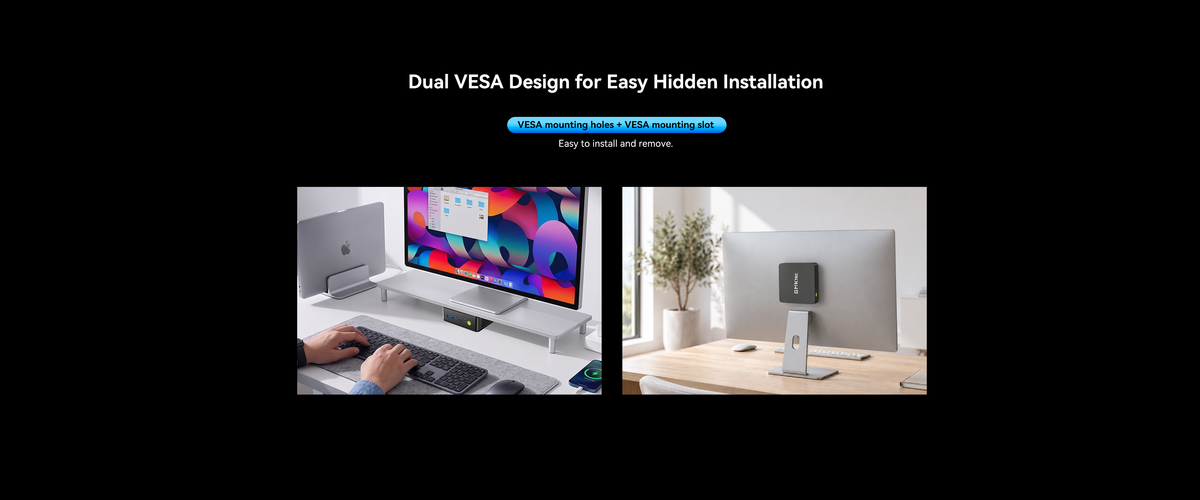

VESA Mount
User Manual
Warranty Card
HDMI Cable
VESA Mount
User Manual
Warranty Card
Dimensions
128.8 × 127 × 47.8mm
Packaging
Single Box: 190 × 190 × 110mm
Carton: 8 Units
Carton Dimensions: 400 × 390 × 240mm
Carton Weight: Approx. 12.2kg
Carton: 8 Units
Carton Dimensions: 400 × 390 × 240mm
Carton Weight: Approx. 12.2kg
