In Stock

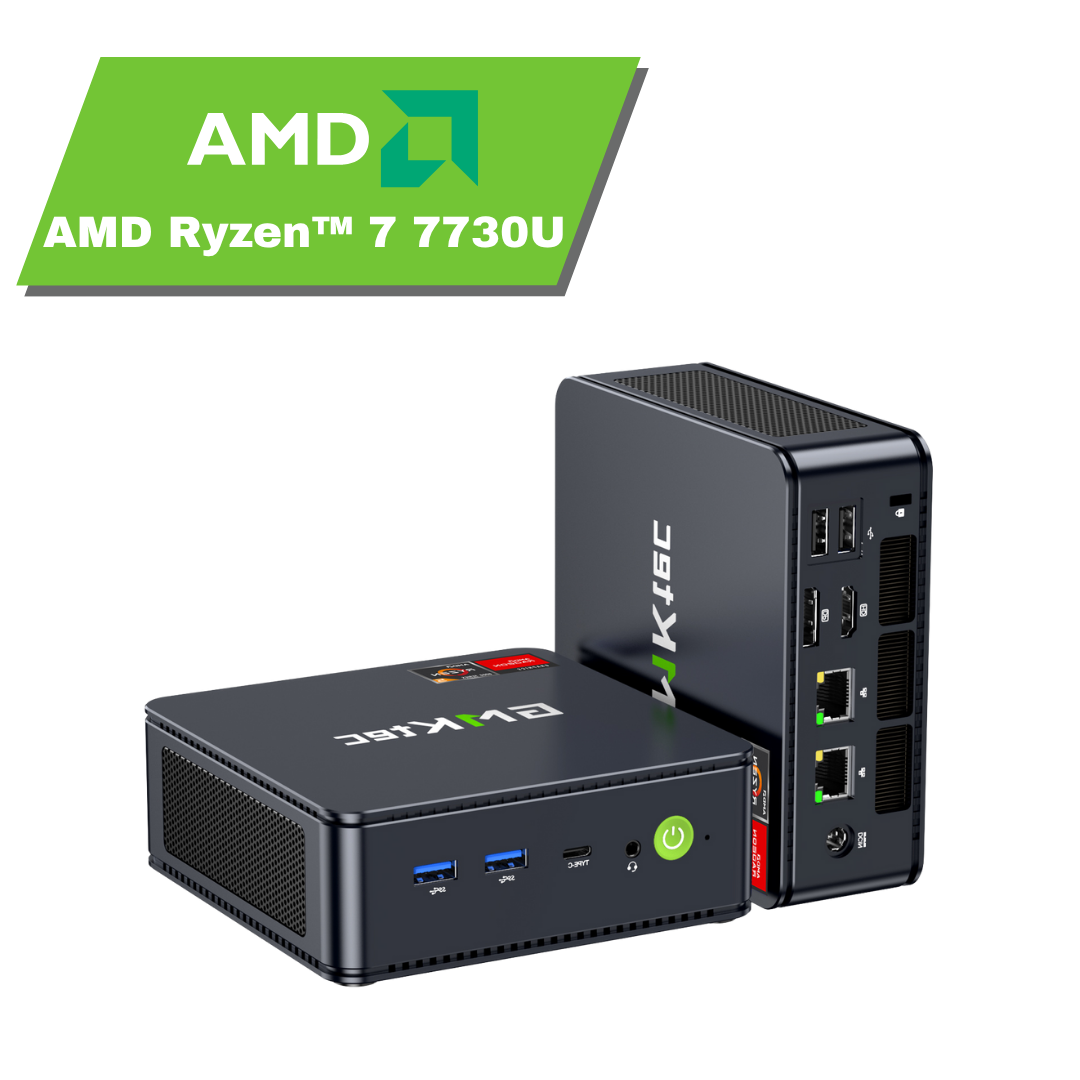

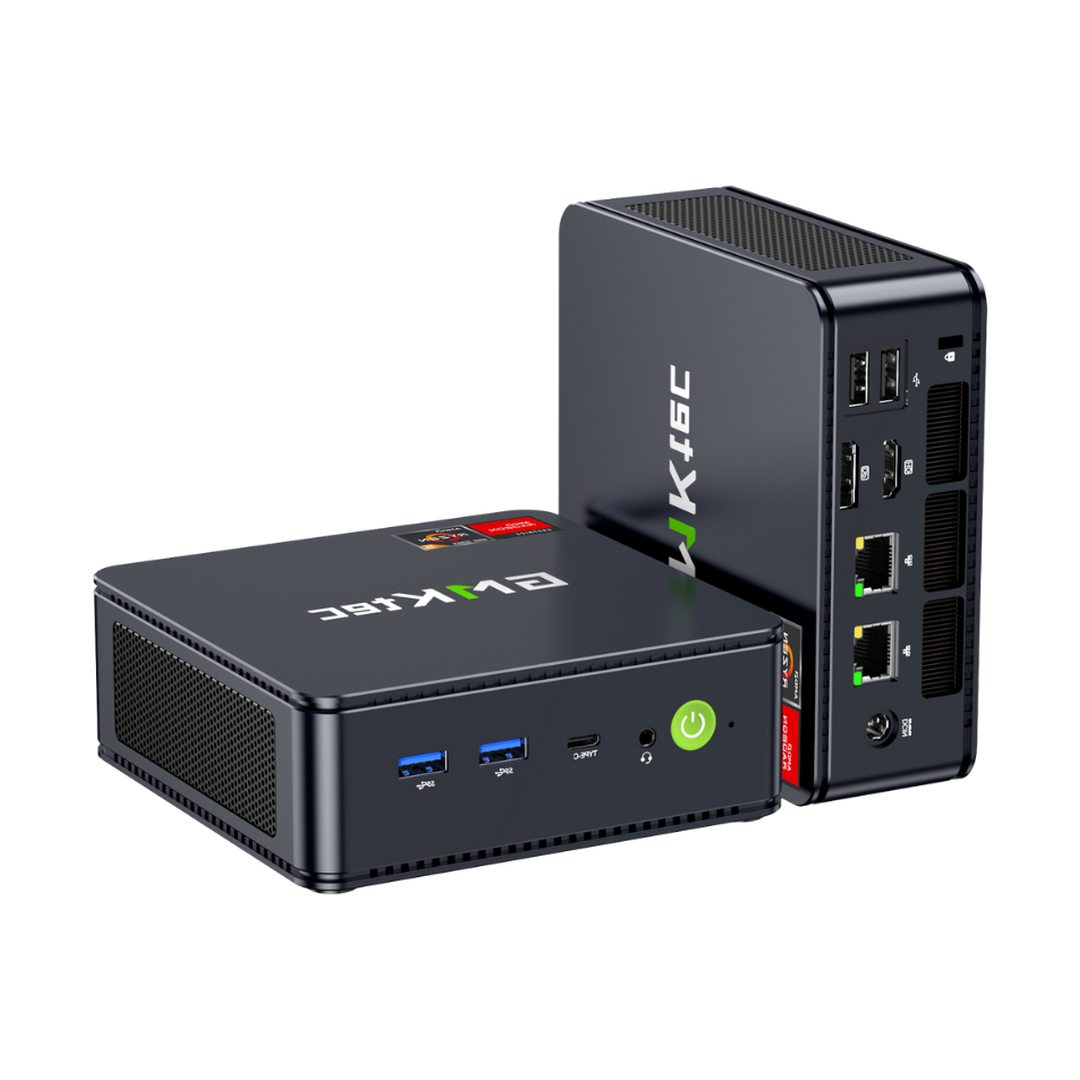

GMKtec NucBox M5 Ultra AMD Ryzen™ 7 7730U Mini PC
£259.99
£299.99
VAT included where applicable. If customs charges occur, please pay first and contact us for reimbursement.
- CPU: AMD Ryzen™ 7 7730U processor with 8 cores, 16 threads and boost speeds of up to 4.5 GHz
- Memory & Storage: Up to 64 GB DDR4 memory with dual M.2 SSD slots, supporting up to 8 TB per slot and up to 16 TB total storage
- Display & Connectivity: Wi-Fi 6E, Bluetooth 5.2, and HDMI, DisplayPort and USB-C output with support for up to 8K display
- Ideal For: Home office, everyday computing, multimedia and multitasking
GMKtec NucBox M5 Ultra AMD Ryzen™ 7 7730U Mini PC
£259.99
£299.99
Specification
General
CPU
AMD Ryzen™ 7 7730U Processor
8 Cores / 16 Threads
Zen 3 Architecture, TSMC 7nm, FP6 Package
Base Clock: 2.0GHz
Max Boost Clock: Up to 4.5GHz
Cache: 4MB L2 / 16MB L3
TDP: 10W (Silent) / 15W (Balanced) / 35W (Performance, Peak 35W)
8 Cores / 16 Threads
Zen 3 Architecture, TSMC 7nm, FP6 Package
Base Clock: 2.0GHz
Max Boost Clock: Up to 4.5GHz
Cache: 4MB L2 / 16MB L3
TDP: 10W (Silent) / 15W (Balanced) / 35W (Performance, Peak 35W)
GPU
AMD Radeon™ Graphics
8 Cores
Graphics Frequency: 2000MHz
Max Shared VRAM: 2GB
8 Cores
Graphics Frequency: 2000MHz
Max Shared VRAM: 2GB

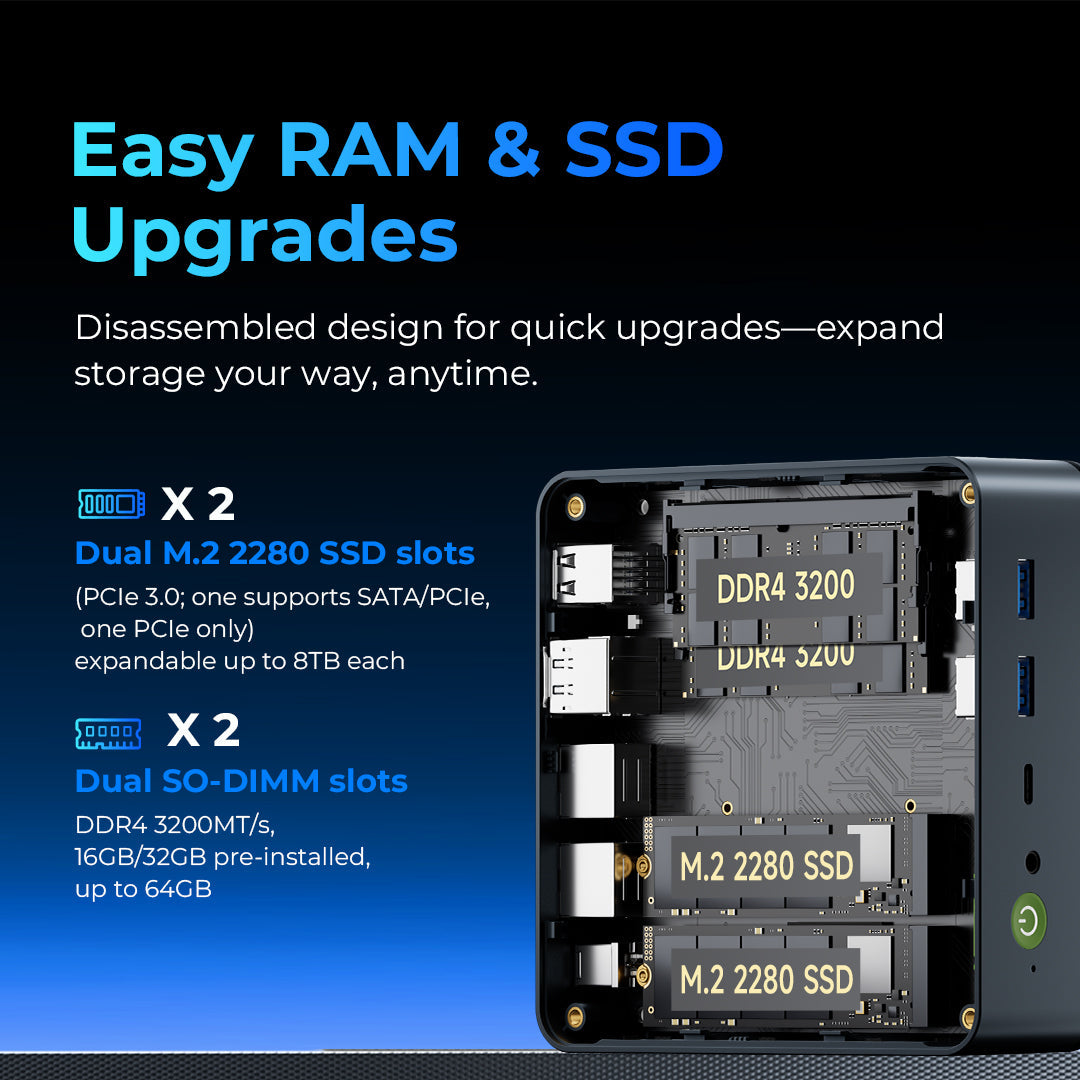

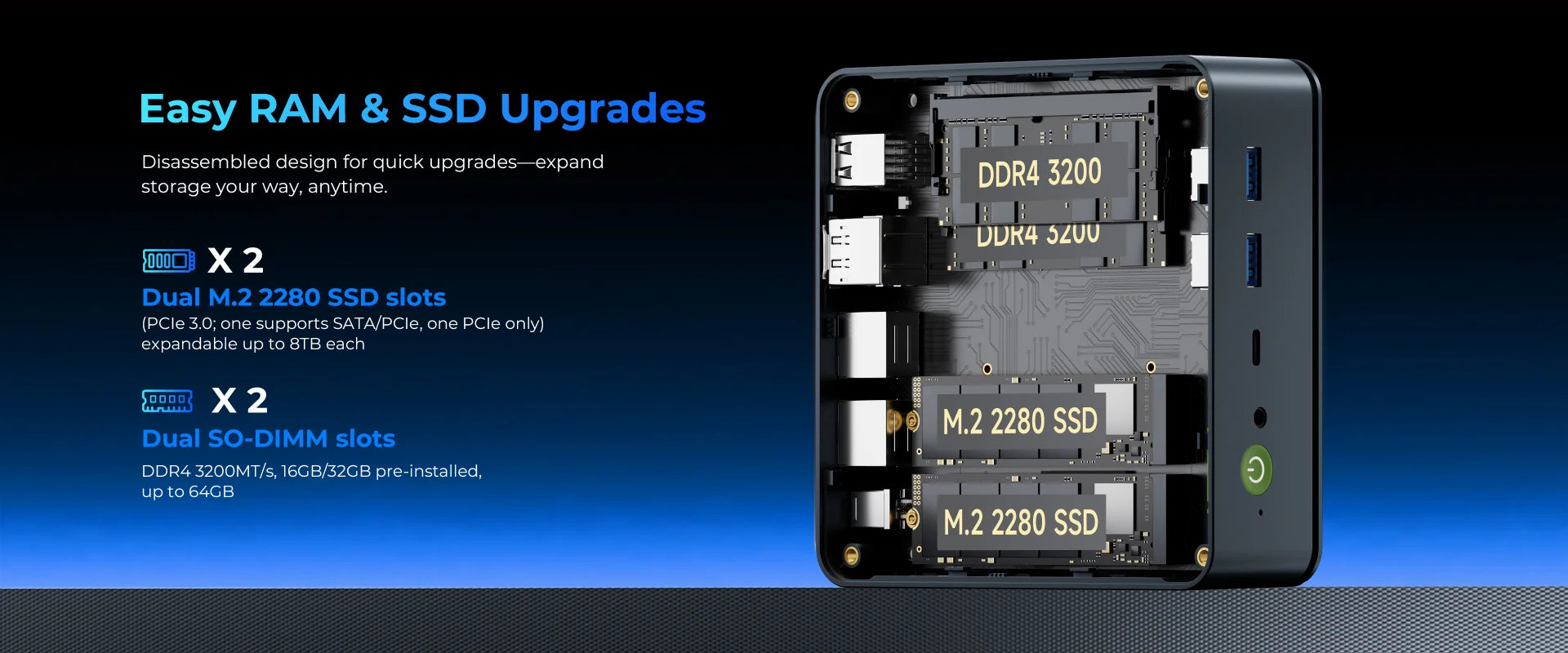

RAM
2 × SO-DIMM Slots
DDR4 3200 MT/s, Dual-Channel
16GB / 32GB Pre-installed
Expandable up to 64GB
DDR4 3200 MT/s, Dual-Channel
16GB / 32GB Pre-installed
Expandable up to 64GB
Storage
PCIe 3.0 M.2 2280 SSD
512GB Pre-installed
Expandable up to 8TB (Single SSD)
Slot 1: SATA + PCIe
Slot 2: PCIe Only
512GB Pre-installed
Expandable up to 8TB (Single SSD)
Slot 1: SATA + PCIe
Slot 2: PCIe Only
Graphics Output
HDMI 2.0 (4K@60Hz)
DisplayPort (Up to 8K@60Hz)
Type-C DP (Up to 8K)
DisplayPort (Up to 8K@60Hz)
Type-C DP (Up to 8K)

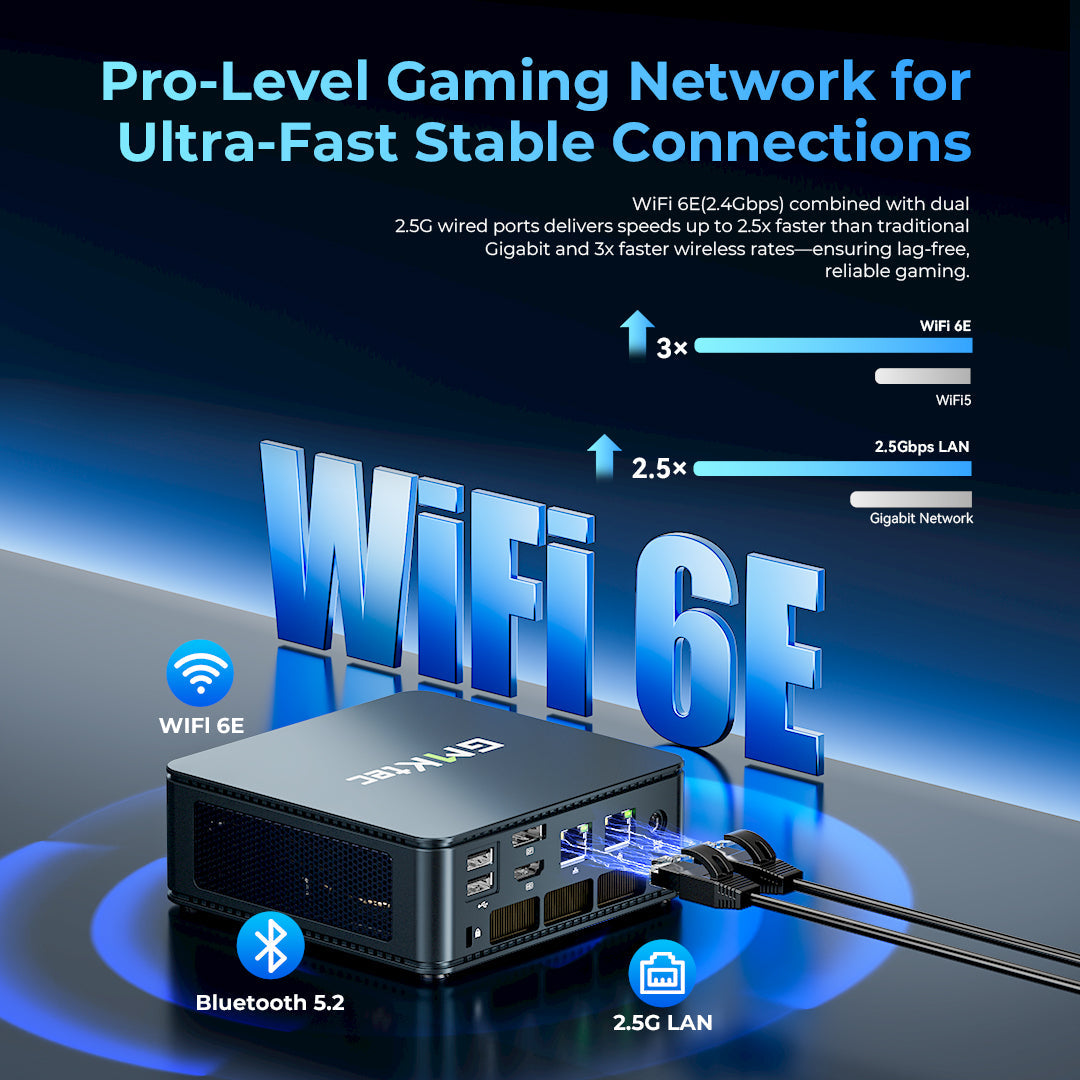

Wireless Connectivity
WiFi 6E (RZ616, Up to 2.4Gbps)
Bluetooth 5.2
Bluetooth 5.2
Wired Network
Dual LAN (2 × RJ45, 2.5G Realtek RTL8125)
Power Supply
DC IN 19V / 3.42A
Built-in CMOS Button Battery
Built-in CMOS Button Battery

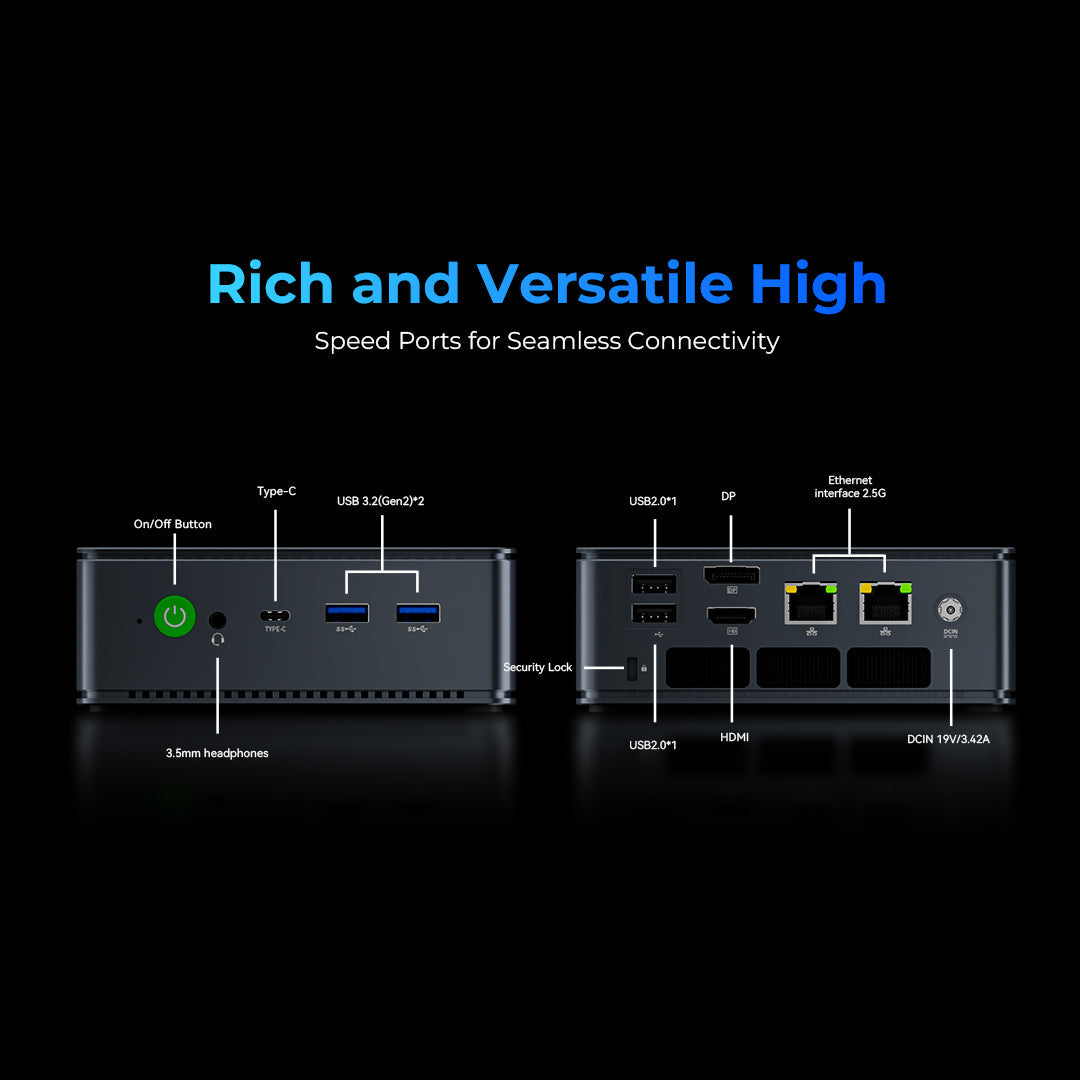

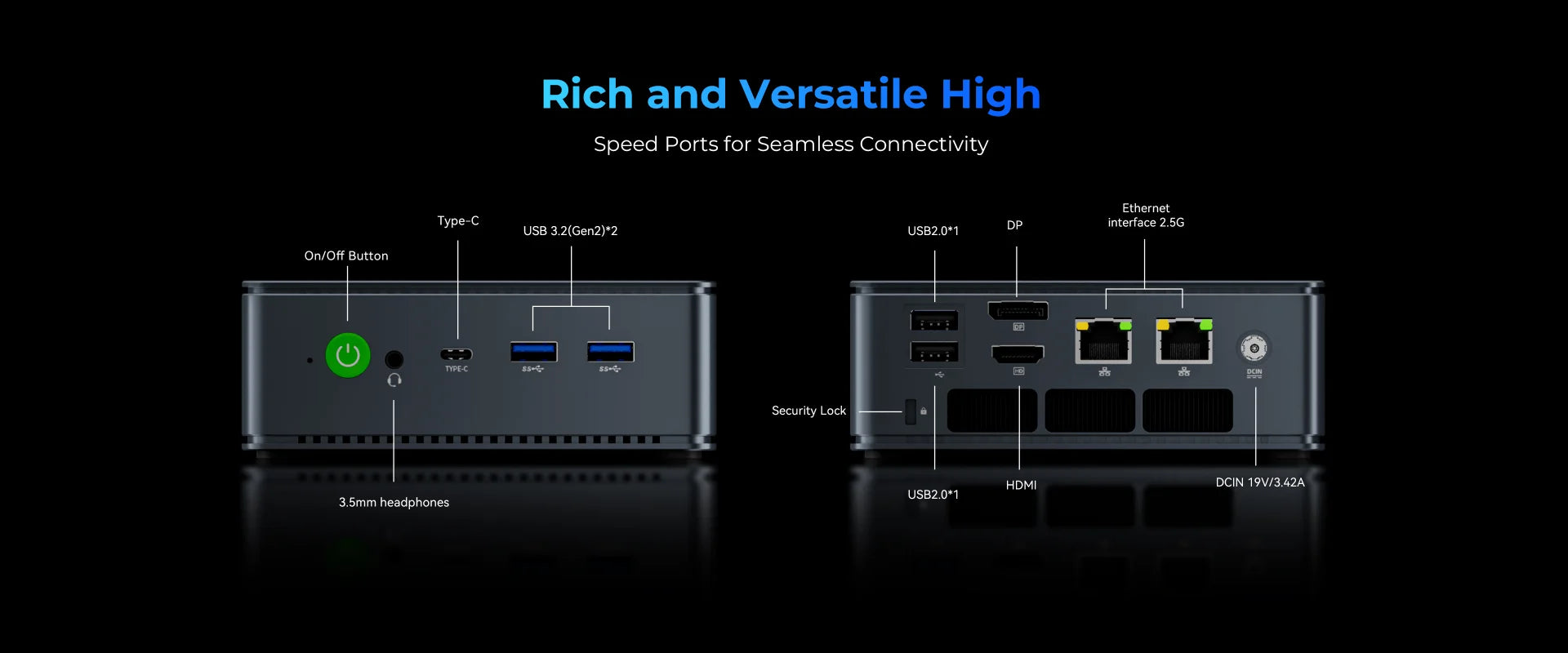

Interfaces
2 × USB 3.2 Gen2 (10Gbps, Front)
2 × USB 2.0 (Rear)
1 × Type-C (USB 3.2 Gen2, DP/PD, 10Gbps, Front)
1 × HDMI 2.0 (4K@60Hz)
1 × DisplayPort (Up to 8K@60Hz)
1 × 3.5mm Audio Jack, CTIA (Front)
DC Power Input (5.5 / 2.5mm)
Dual 2.5G Ethernet Ports
Reset Button: Reset When Powered On / Clear CMOS When Powered Off
2 × USB 2.0 (Rear)
1 × Type-C (USB 3.2 Gen2, DP/PD, 10Gbps, Front)
1 × HDMI 2.0 (4K@60Hz)
1 × DisplayPort (Up to 8K@60Hz)
1 × 3.5mm Audio Jack, CTIA (Front)
DC Power Input (5.5 / 2.5mm)
Dual 2.5G Ethernet Ports
Reset Button: Reset When Powered On / Clear CMOS When Powered Off
Operating System
Supports Windows 11 Pro
Supports 14 Languages
Default Language: English
Includes Chinese, French, German, Japanese, Korean, etc.
Supports 14 Languages
Default Language: English
Includes Chinese, French, German, Japanese, Korean, etc.
Weight
Bare Unit: 528g
Full Package: 1440g
Full Package: 1440g
Included Accessories
Power Adapter
HDMI Cable
VESA Mount
Manual
Warranty Card
HDMI Cable
VESA Mount
Manual
Warranty Card
Dimensions
128.8 × 127 × 47.8 mm
Packaging
Single Box: 190 × 190 × 110 mm
Carton: 8 Units, 400 × 390 × 240 mm, 12.2kg
Carton: 8 Units, 400 × 390 × 240 mm, 12.2kg
