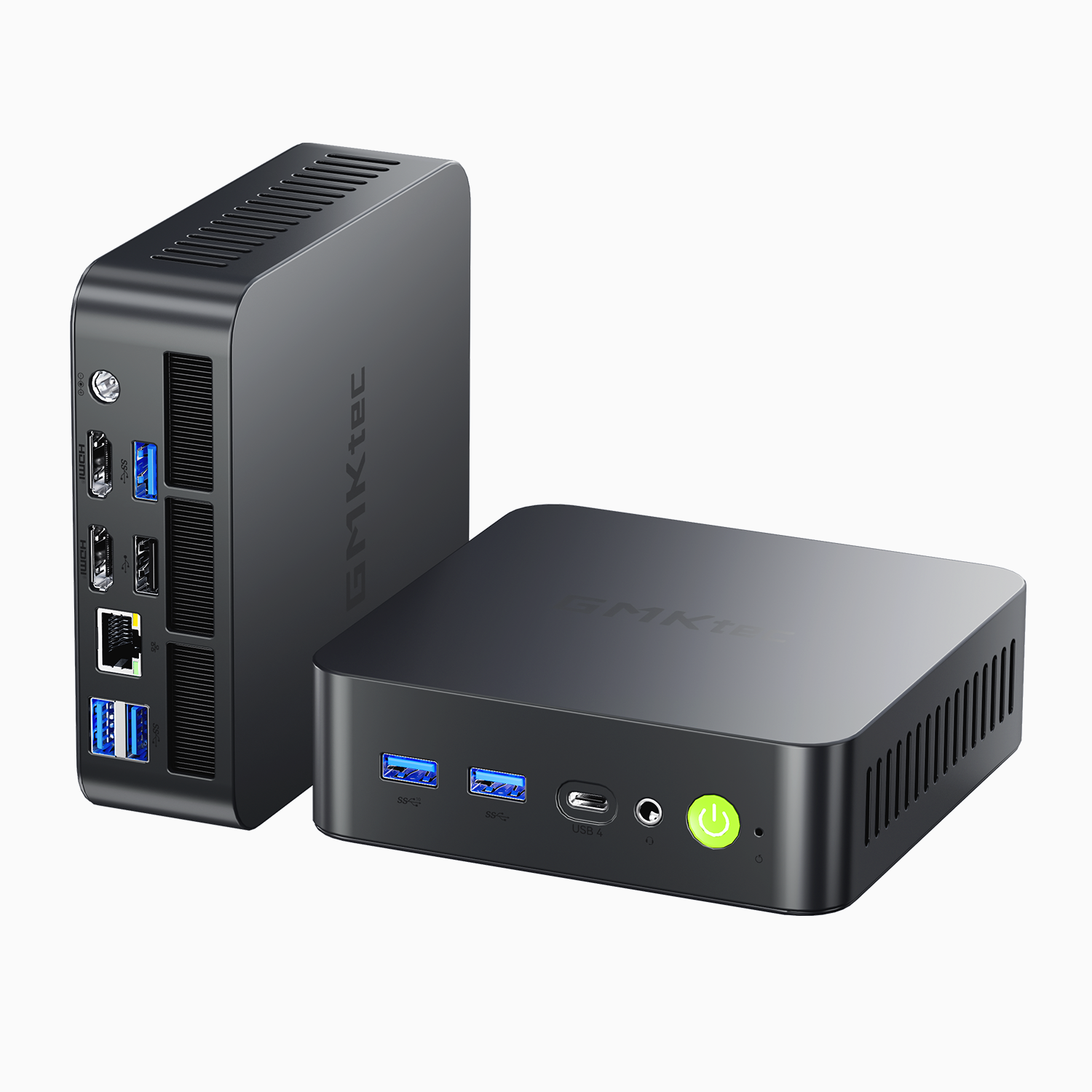

GMKtec NucBox K17 Plus Intel® Core™ Ultra 7 258V Mini PC
£679.99
£939.99
- Processor: Powered by the Intel® Core™ Ultra 7 258V with 8 cores, 8 threads and speeds up to 4.8GHz, delivering 115 TOPS of combined INT8 AI performance, including a 47 TOPS Intel® AI Boost NPU, for responsive AI-assisted work and multitasking.
- Graphics & Display: Features Intel® Arc™ 140V Graphics at up to 1.95GHz, supporting three displays via two HDMI 2.1 ports and USB4, with up to 8K@60Hz output through the HDMI 2.1 FRL port.
- Memory & Storage: Includes 32GB LPDDR5X onboard memory at up to 8533 MT/s and supports two M.2 2280 NVMe SSDs, with one PCIe 5.0 x4 slot and one PCIe 4.0 x2 slot supporting up to 8TB each and 16TB total storage.
- Connectivity & Expansion: Includes Wi-Fi 6E, Bluetooth 5.2, 2.5GbE LAN, six USB-A ports and a front USB4 port supporting up to 40Gbps data transfer, 100W PD 3.0 input, 4K@60Hz video output and external GPU connectivity.
- Compact Cooling Design: Features dual copper heat pipes and a single-fan cooling system in a compact 127.5 x 127 x 44.5mm chassis weighing approximately 460g, with quick-release SSD access, a security lock slot and VESA mounting support.
GMKtec NucBox K17 Plus Intel® Core™ Ultra 7 258V Mini PC
£679.99
£939.99
Specification
General
Model
GMKtec NucBox K17 Plus
CPU
Intel® Core™ Ultra 7 258V, Intel® Core™ Ultra Processors (Series 2), 8 cores / 8 threads, TSMC N3B process, base frequency 2.2GHz, max turbo up to 4.8GHz (P-core) / 3.7GHz (low-power E-core), 12MB Intel® Smart Cache, up to 115 TOPS combined AI performance (Int8)
CPU Model
Intel® Core™ Ultra 7 258V
CPU Socket / Package
FCBGA2833, package size: 27.5 × 27mm

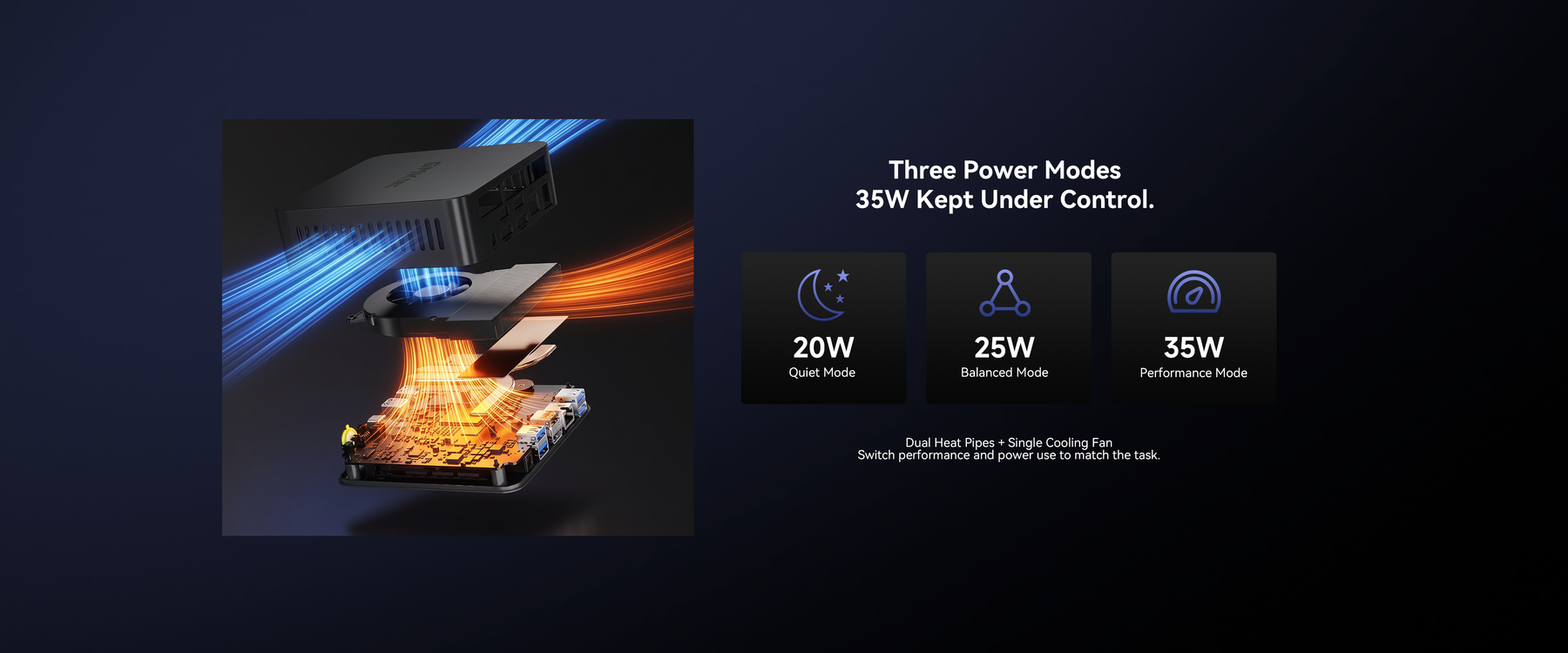

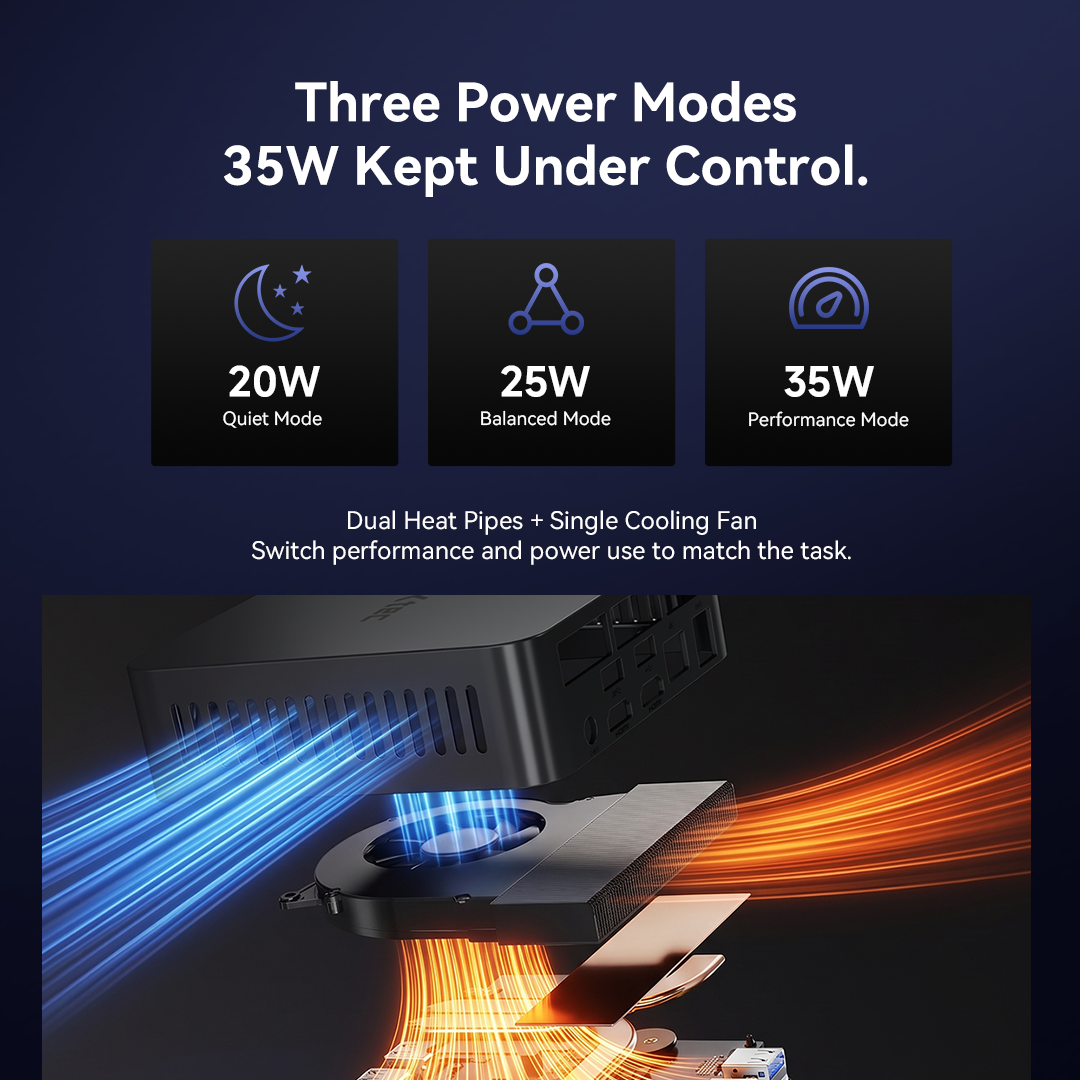

Power Modes
Silent: 20W
Balanced: 25W
Performance: 35W
Peak: 37W
Balanced: 25W
Performance: 35W
Peak: 37W
GPU
Intel® Arc™ 140V GPU, base clock 400MHz, max dynamic frequency 1.95GHz, up to 64 TOPS (Int8)
NPU
Intel® AI Boost NPU, up to 47 TOPS (Int8)
RAM
32GB LPDDR5X, up to 8533 MT/s, onboard memory (not user-upgradable)
Storage (SSD)
PCIe 4.0 M.2 2280 SSD, available in 512GB / 1TB / 2TB
Maximum Expandable Storage
Dual M.2 SSD support, up to 8TB × 2 (16TB total)
Storage Expansion
1 × M.2 2280 PCIe Gen5 x4 NVMe SSD slot
1 × M.2 2280 PCIe Gen4 x2 NVMe SSD slot
M.2 SATA SSDs are not supported
1 × M.2 2280 PCIe Gen4 x2 NVMe SSD slot
M.2 SATA SSDs are not supported
Display
No integrated display
Video Output
1 × HDMI 2.1 TMDS, up to 4K@60Hz
1 × HDMI 2.1 FRL, up to 8K@60Hz
1 × USB4, up to 4K@60Hz
Supports triple-display output
1 × HDMI 2.1 FRL, up to 8K@60Hz
1 × USB4, up to 4K@60Hz
Supports triple-display output
Wireless Connectivity
Wi-Fi 6E (802.11 a/b/g/n/ac/ax, RZ616)
Wi-Fi Speed
Up to 2.4Gbps
Bluetooth
Bluetooth 5.2
Ethernet
1 × 2.5GbE RJ45 LAN port (Intel® I226-V)
Power Input
DC IN 20V / 5A, 100W power adapter

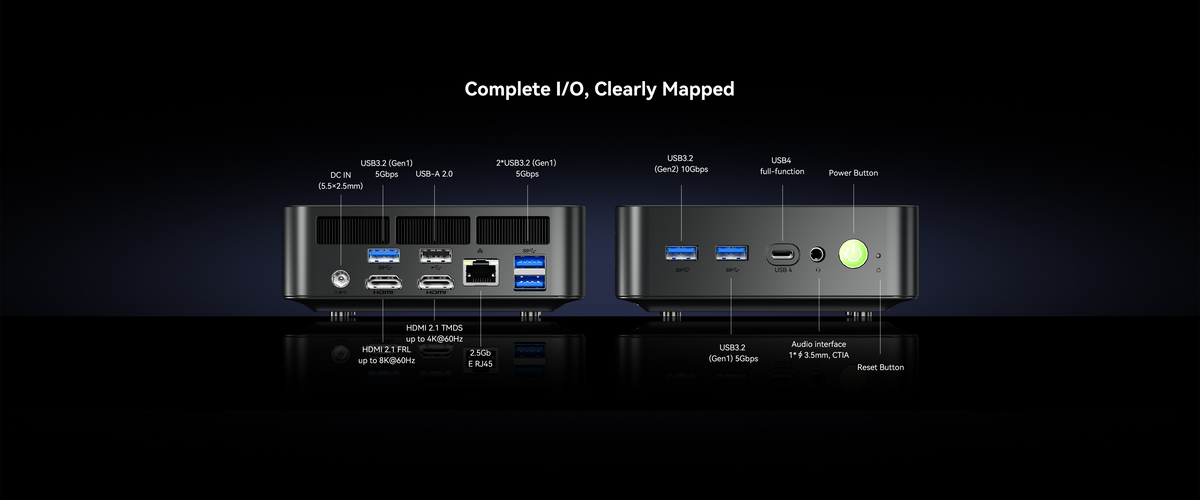

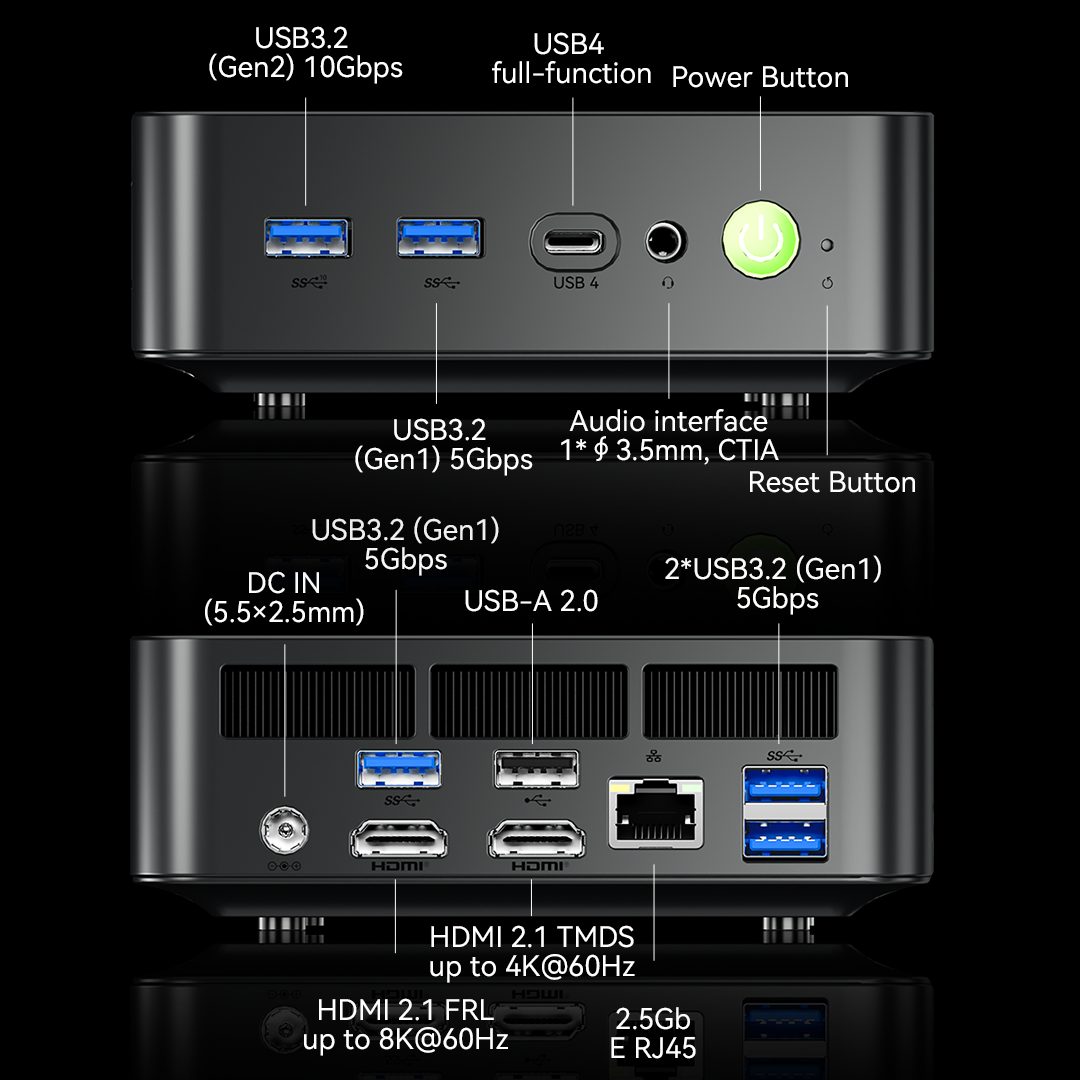

Front Interfaces
1 × USB 3.2 Gen 2 Type-A (10Gbps)
1 × USB 3.2 Gen 1 Type-A (5Gbps)

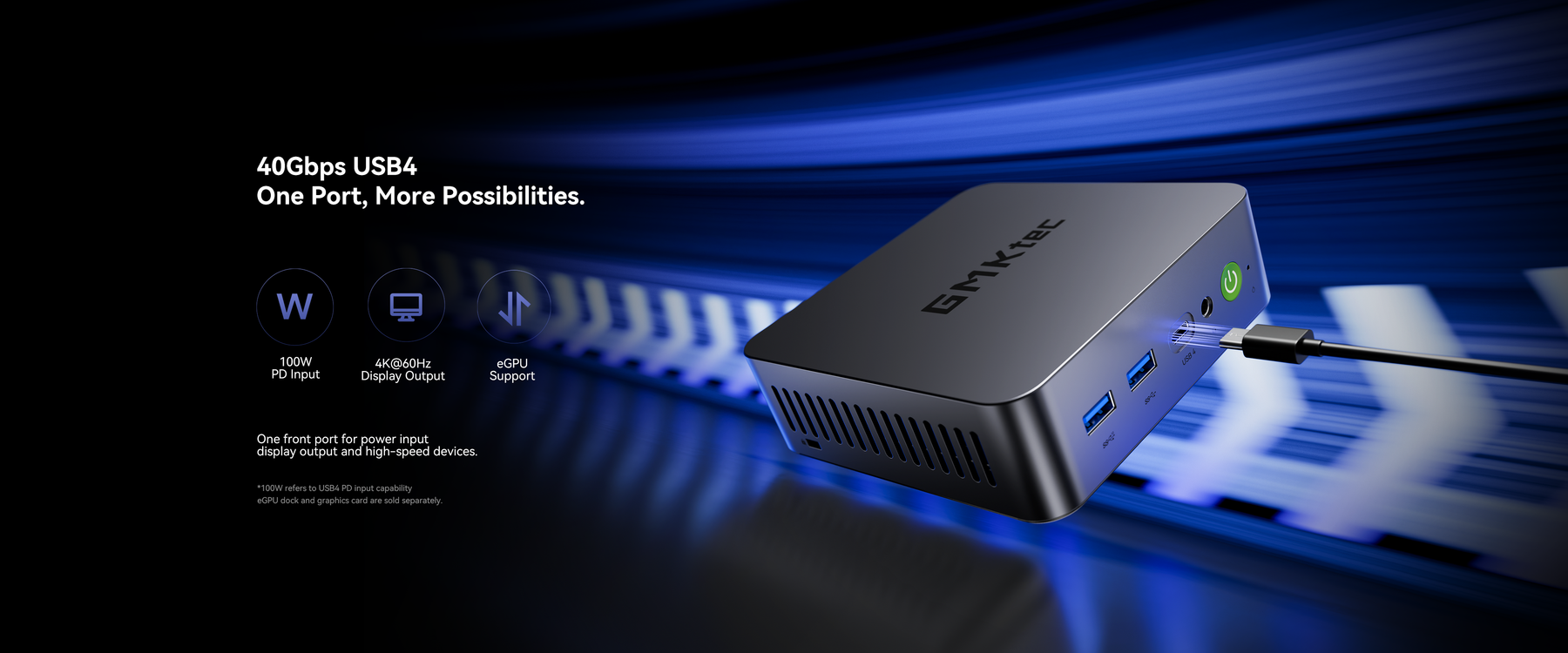

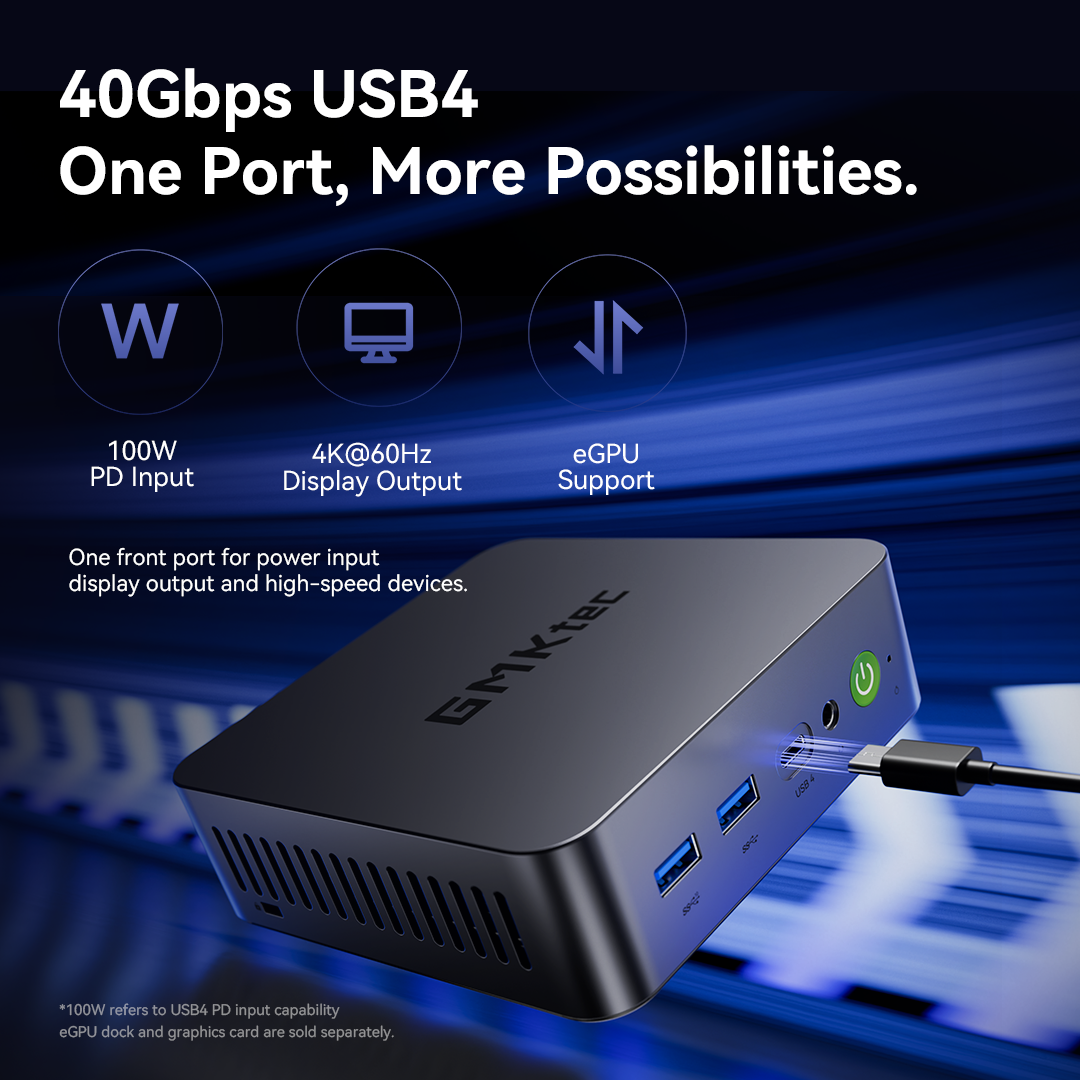

1 × USB4 Type-C (up to 40Gbps data transfer, PD 3.0 100W input, 4K@60Hz video output and external GPU support)
1 × 3.5mm audio jack (CTIA)
1 × Power button
1 × Reset button
1 × USB 3.2 Gen 1 Type-A (5Gbps)
1 × USB4 Type-C (up to 40Gbps data transfer, PD 3.0 100W input, 4K@60Hz video output and external GPU support)
1 × 3.5mm audio jack (CTIA)
1 × Power button
1 × Reset button
Rear Interfaces
3 × USB 3.2 Gen 1 Type-A (5Gbps)
1 × USB 2.0 Type-A (480Mbps)
2 × HDMI 2.1
1 × 2.5GbE RJ45 LAN port
1 × DC IN port
1 × USB 2.0 Type-A (480Mbps)
2 × HDMI 2.1
1 × 2.5GbE RJ45 LAN port
1 × DC IN port
Security
1 × Security lock slot
Cooling System
Dual copper heat pipes with single-fan cooling
Operating System
Supports Windows 11 Pro
Supports 14 languages
Default language: English
Supports 14 languages
Default language: English
Dimensions

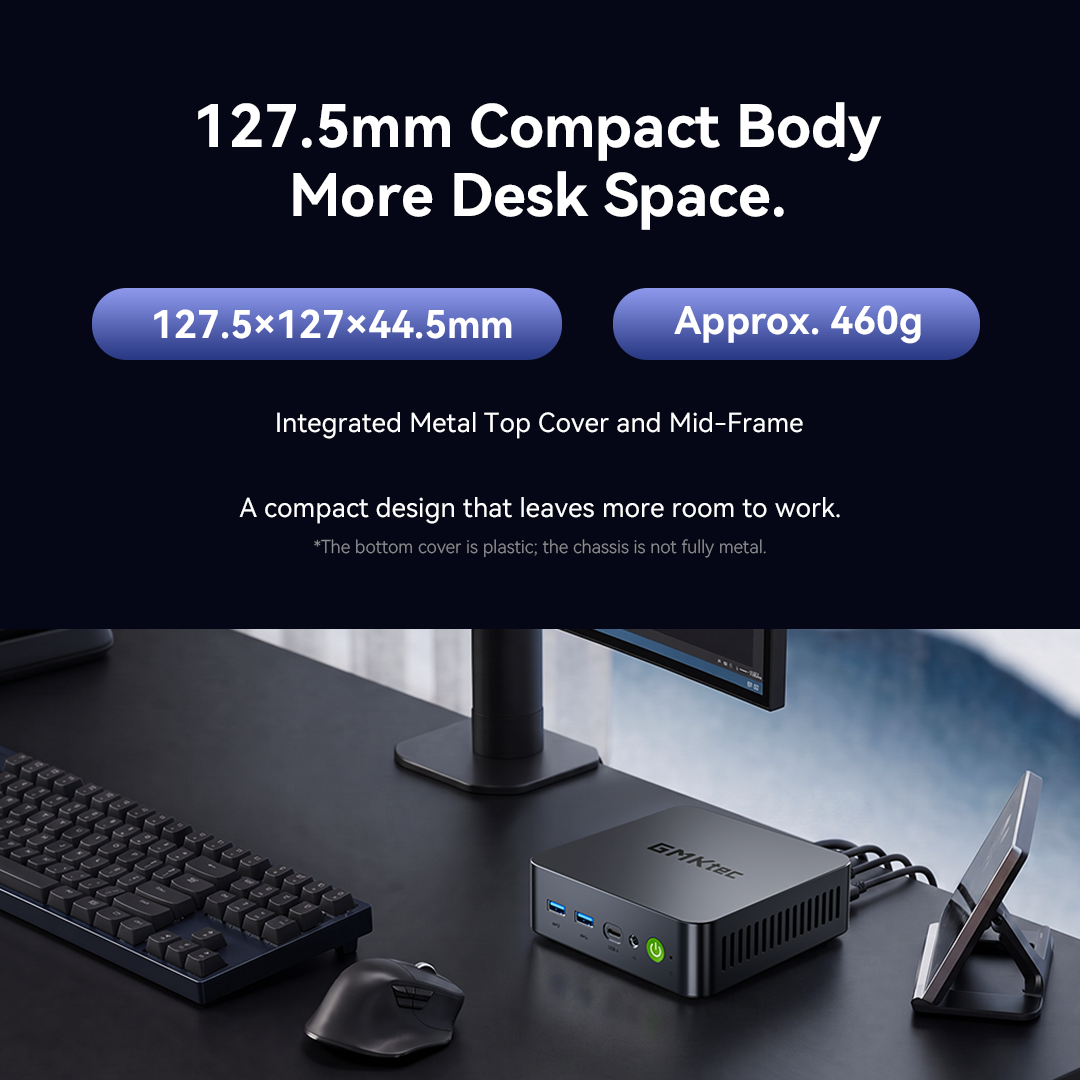

127.5 × 127 × 44.5mm
Weight
Bare unit: Approx. 460g
Full package: Approx. 1.3kg
Full package: Approx. 1.3kg
Colour
Grey and black
Chassis Construction
Integrated metal upper cover and mid-frame with a plastic bottom cover
Included Accessories
100W power adapter
HDMI cable
VESA mount
User manual
Warranty card
HDMI cable
VESA mount
User manual
Warranty card
Operating Temperature
0–40°C
Warranty
1-year limited warranty
