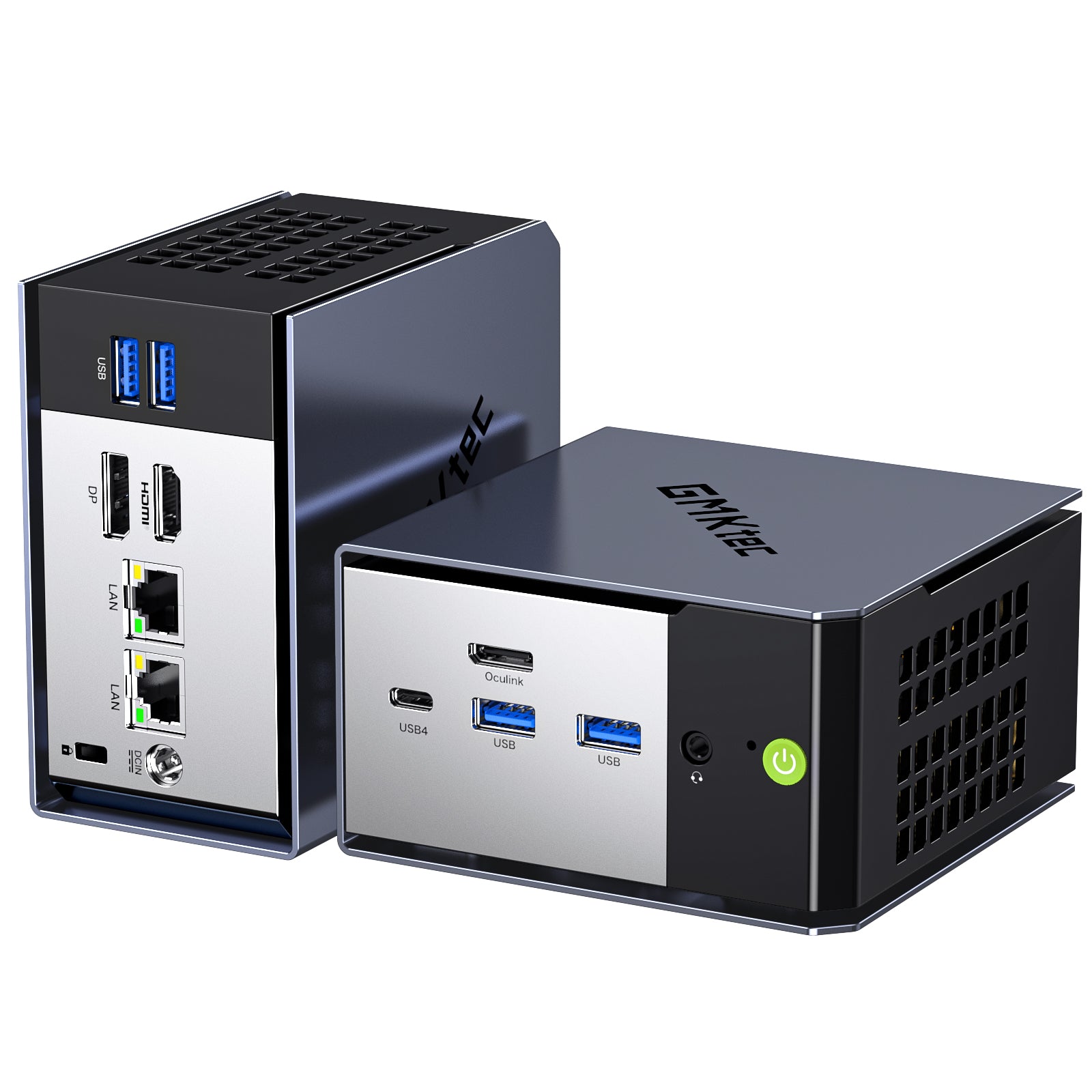

GMKtec EVO-X1 Pro AMD Ryzen™ AI 9 HX 470 AI Mini PC
£1,249.99
£1,779.99
- Processor: Powered by AMD Ryzen™ AI 9 HX 470 with 12 cores, 24 threads and up to 5.2GHz boost for powerful desktop-class performance.
- AI Capability: Delivers up to 86 TOPS total AI performance with a dedicated NPU offering up to 55 TOPS, with GMKtec Claw pre-installed for ready-to-use local AI.
- Graphics & Expansion: Features AMD Radeon™ 890M Graphics with 16 compute units and up to 3.1GHz graphics frequency, plus OCuLink PCIe 4.0 x4 for external GPU expansion.
- Memory & Storage: Equipped with 64GB onboard LPDDR5 6400MT/s memory and dual M.2 2280 PCIe 4.0 x4 SSD slots, supporting up to 16TB total storage.
- Connectivity: WiFi 7, Bluetooth 5.4, dual 2.5G LAN, USB4, HDMI 2.1 and DisplayPort 2.1 with triple-display output at up to 8K resolution.
- Ideal For: Local AI models, creative workflows, gaming, home offices, small businesses and other demanding everyday workloads.
EVO-X1 Pro Early Bird Deal
Use this code at checkout to save £20 on EVO-X1 Pro.
X1PL20
Limited-time early bird offer. Cannot be combined with selected discounts.
GMKtec EVO-X1 Pro AMD Ryzen™ AI 9 HX 470 AI Mini PC
£1,249.99
£1,779.99
Specification
General

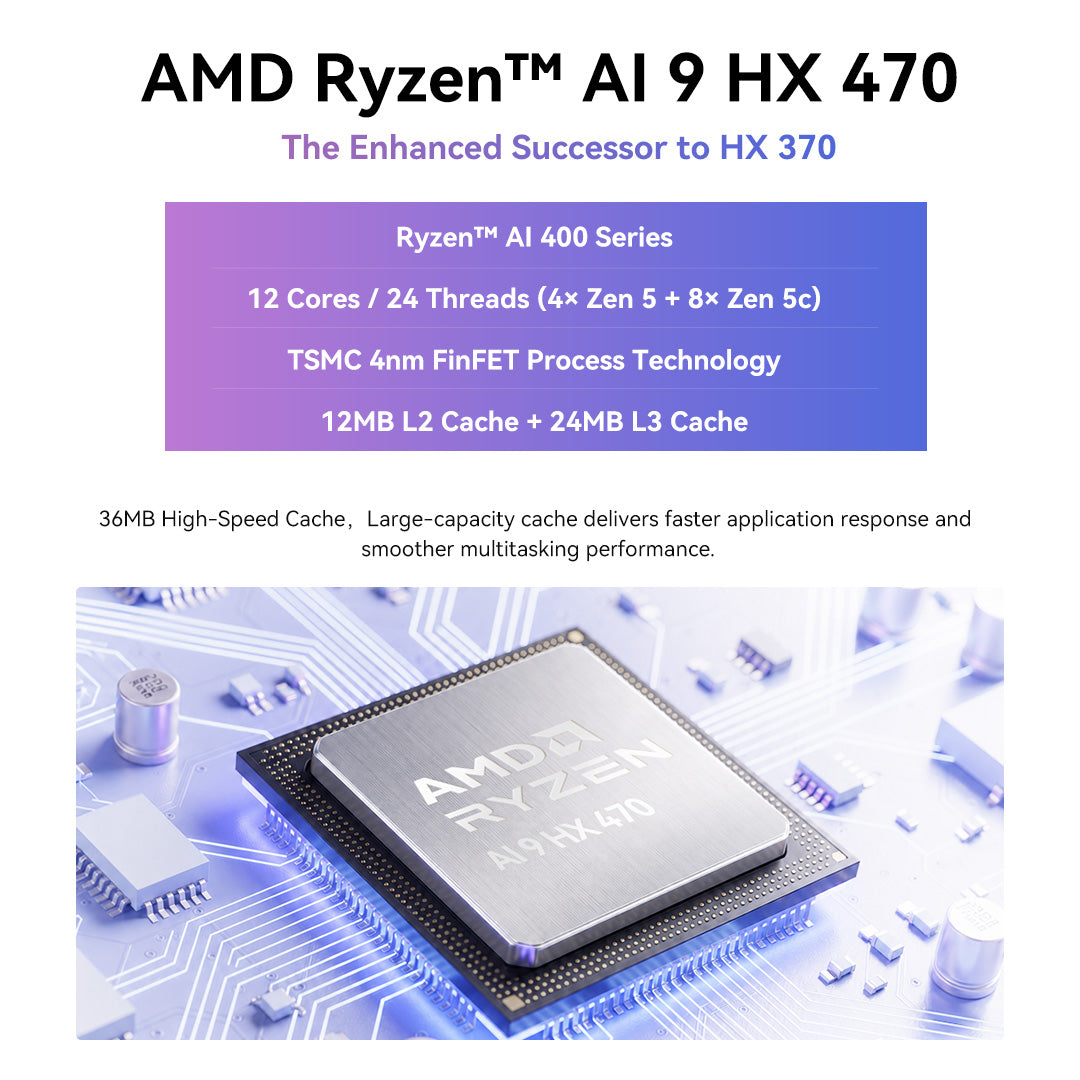

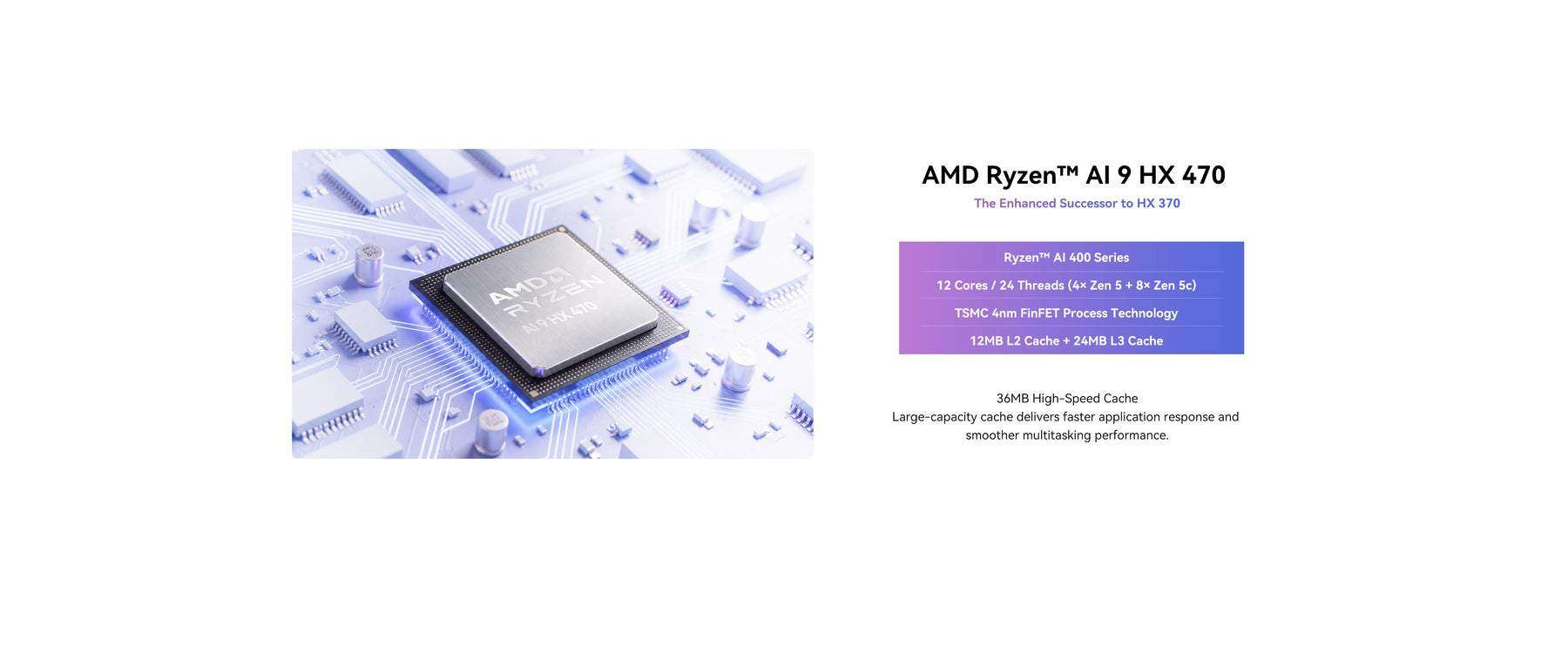

CPU
AMD Ryzen™ AI 9 HX 470
• Ryzen AI 400 Series
• 12 Cores / 24 Threads
• 4 × Zen 5 + 8 × Zen 5c Cores
• TSMC 4nm FinFET Process Technology
• 2.0GHz Base Clock
• Up to 5.2GHz Max Boost Clock
• 12MB L2 Cache / 24MB L3 Cache
• Ryzen AI 400 Series
• 12 Cores / 24 Threads
• 4 × Zen 5 + 8 × Zen 5c Cores
• TSMC 4nm FinFET Process Technology
• 2.0GHz Base Clock
• Up to 5.2GHz Max Boost Clock
• 12MB L2 Cache / 24MB L3 Cache
AI Engine
AMD Ryzen™ AI
• Dedicated NPU Performance: Up to 55 TOPS
• Total AI Performance: Up to 86 TOPS
• GMKtec Claw Pre-installed for Ready-to-use Local AI
• Dedicated NPU Performance: Up to 55 TOPS
• Total AI Performance: Up to 86 TOPS
• GMKtec Claw Pre-installed for Ready-to-use Local AI
GPU
AMD Radeon™ 890M Graphics
• 16 Compute Units
• Up to 3.1GHz Graphics Frequency
• 16 Compute Units
• Up to 3.1GHz Graphics Frequency

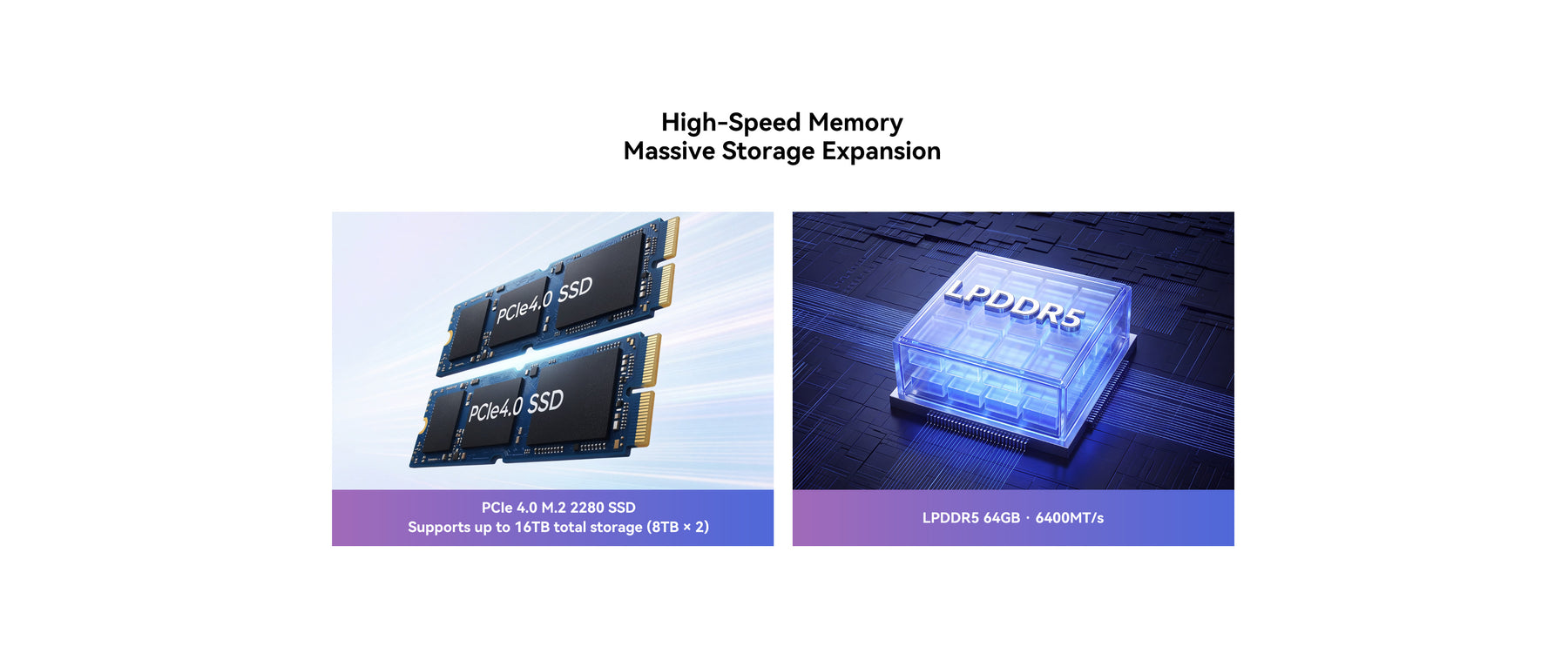

Memory
64GB Onboard LPDDR5 6400MT/s Memory
• 64GB Standard Configuration
• Onboard and Non-upgradeable
• 64GB Standard Configuration
• Onboard and Non-upgradeable

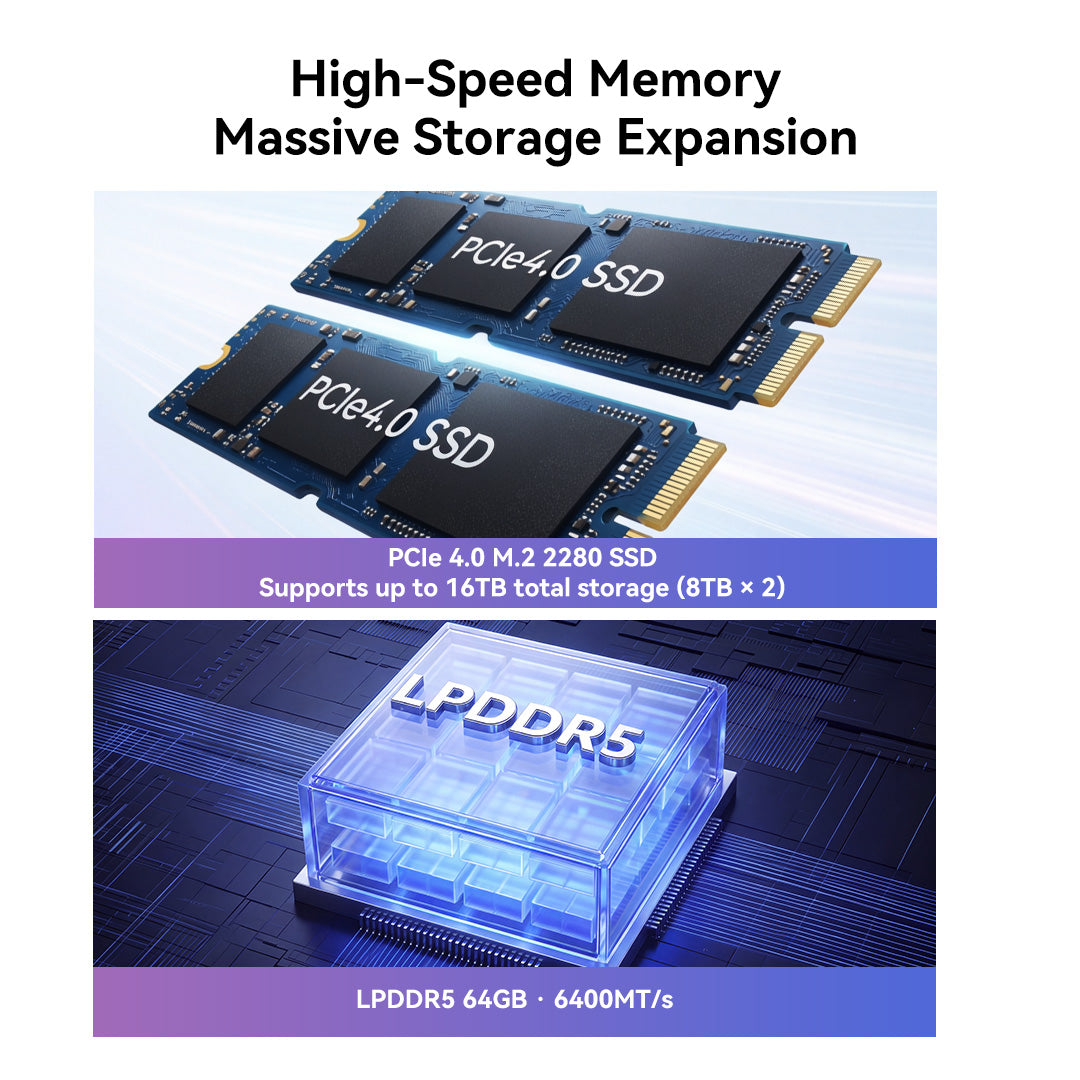

Storage
Dual M.2 2280 PCIe 4.0 ×4 Storage
• 2 × M.2 2280 SSD Slots
• 1TB and 2TB Standard Configurations
• Supports PCIe 3.0 and PCIe 4.0 NVMe SSDs
• Maximum Supported Capacity: Up to 16TB Total
• Maximum Capacity per Slot: Up to 8TB
• SATA SSDs Not Supported
• 2 × M.2 2280 SSD Slots
• 1TB and 2TB Standard Configurations
• Supports PCIe 3.0 and PCIe 4.0 NVMe SSDs
• Maximum Supported Capacity: Up to 16TB Total
• Maximum Capacity per Slot: Up to 8TB
• SATA SSDs Not Supported

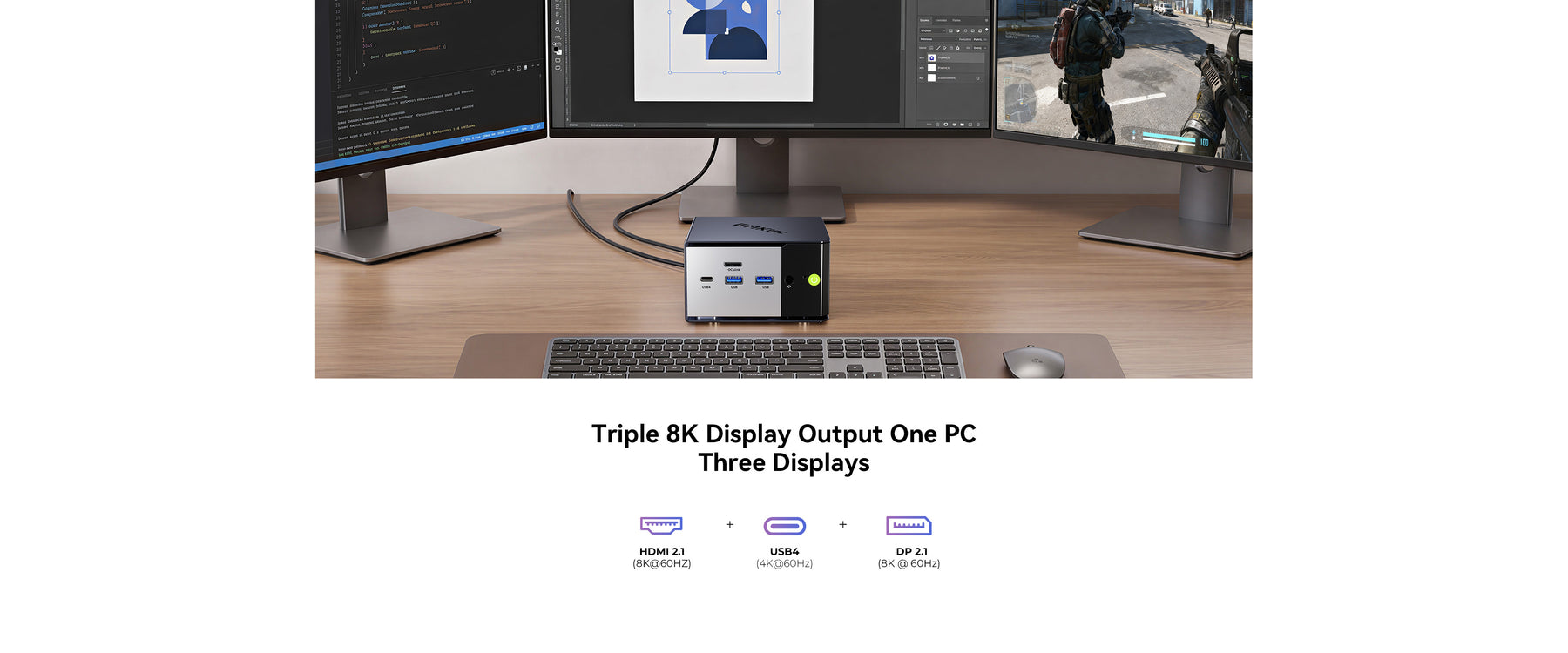

Video Output
Triple-display Output
• 1 × HDMI 2.1, Up to 8K@60Hz
• 1 × DisplayPort 2.1, Up to 8K@60Hz
• 1 × USB4 Display Output, Up to 4K@60Hz
• Maximum Resolution: Up to 8K@60Hz
• 1 × HDMI 2.1, Up to 8K@60Hz
• 1 × DisplayPort 2.1, Up to 8K@60Hz
• 1 × USB4 Display Output, Up to 4K@60Hz
• Maximum Resolution: Up to 8K@60Hz

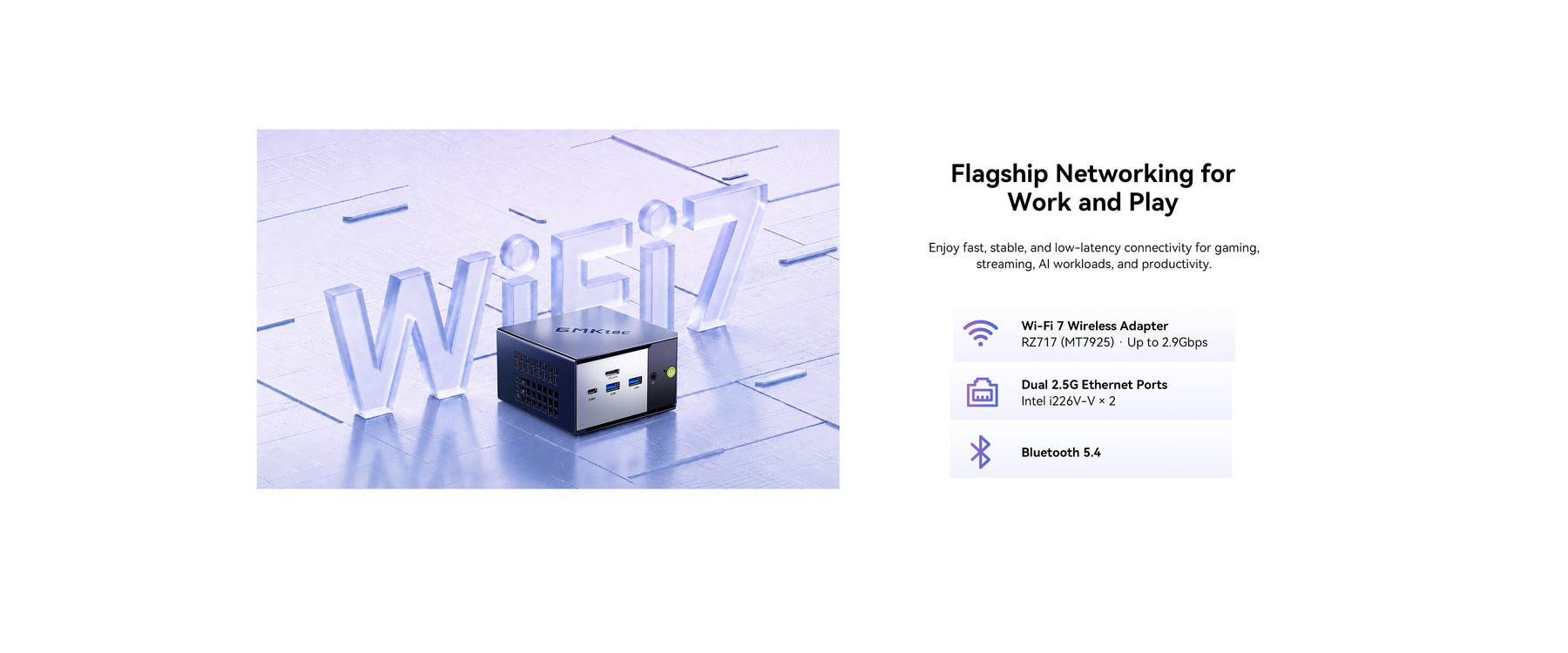

Wireless and Network
Wi-Fi 7 + Bluetooth 5.4 + Dual 2.5G LAN
• Wireless Module: AMD RZ717 with MediaTek MT7925 Chipset
• Maximum Theoretical Wireless Speed: Up to 2.9Gbps
• Bluetooth 5.4
• 2 × 2.5G RJ45 Ethernet Ports
• 2 × Intel I226-V Ethernet Controllers
• Wireless Module: AMD RZ717 with MediaTek MT7925 Chipset
• Maximum Theoretical Wireless Speed: Up to 2.9Gbps
• Bluetooth 5.4
• 2 × 2.5G RJ45 Ethernet Ports
• 2 × Intel I226-V Ethernet Controllers

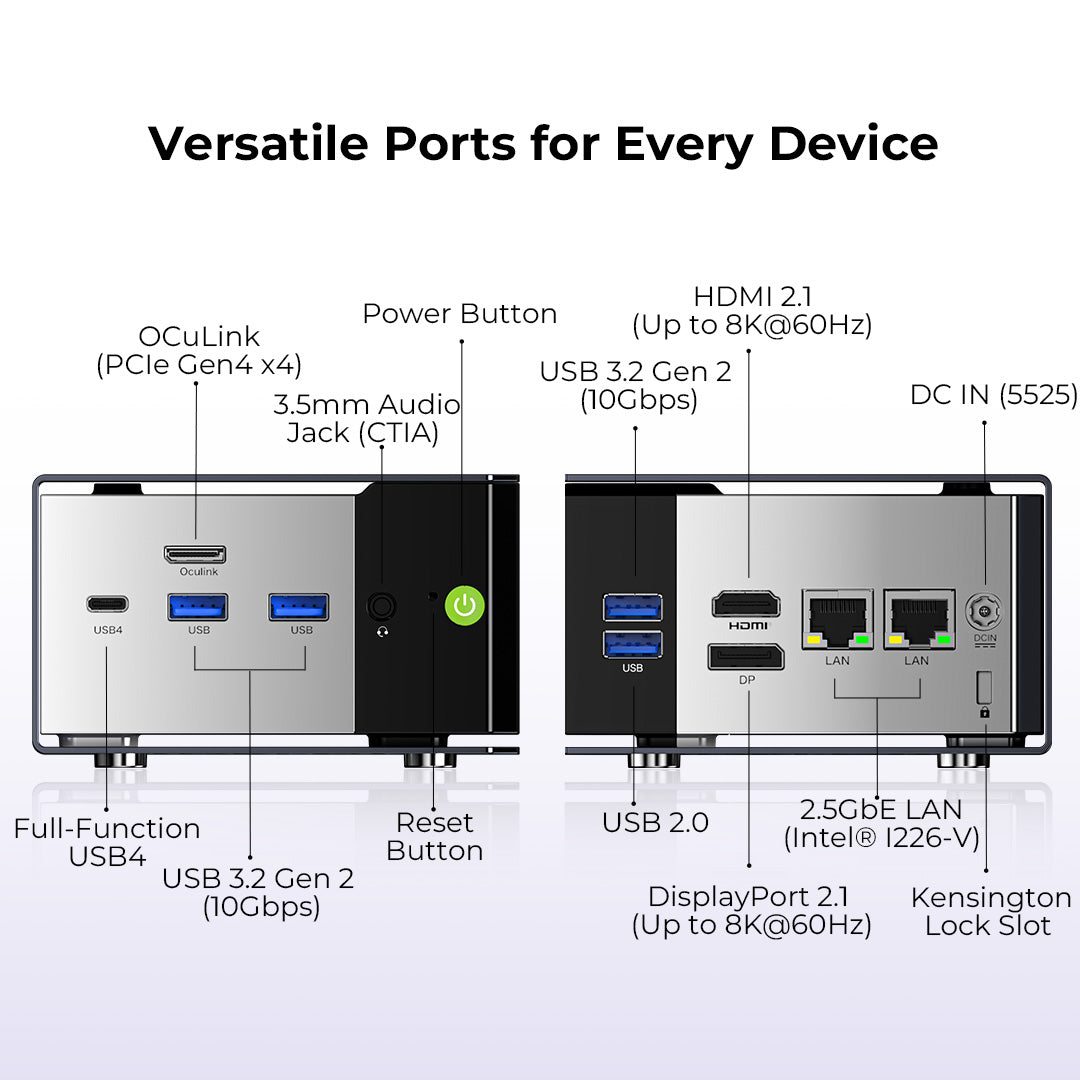

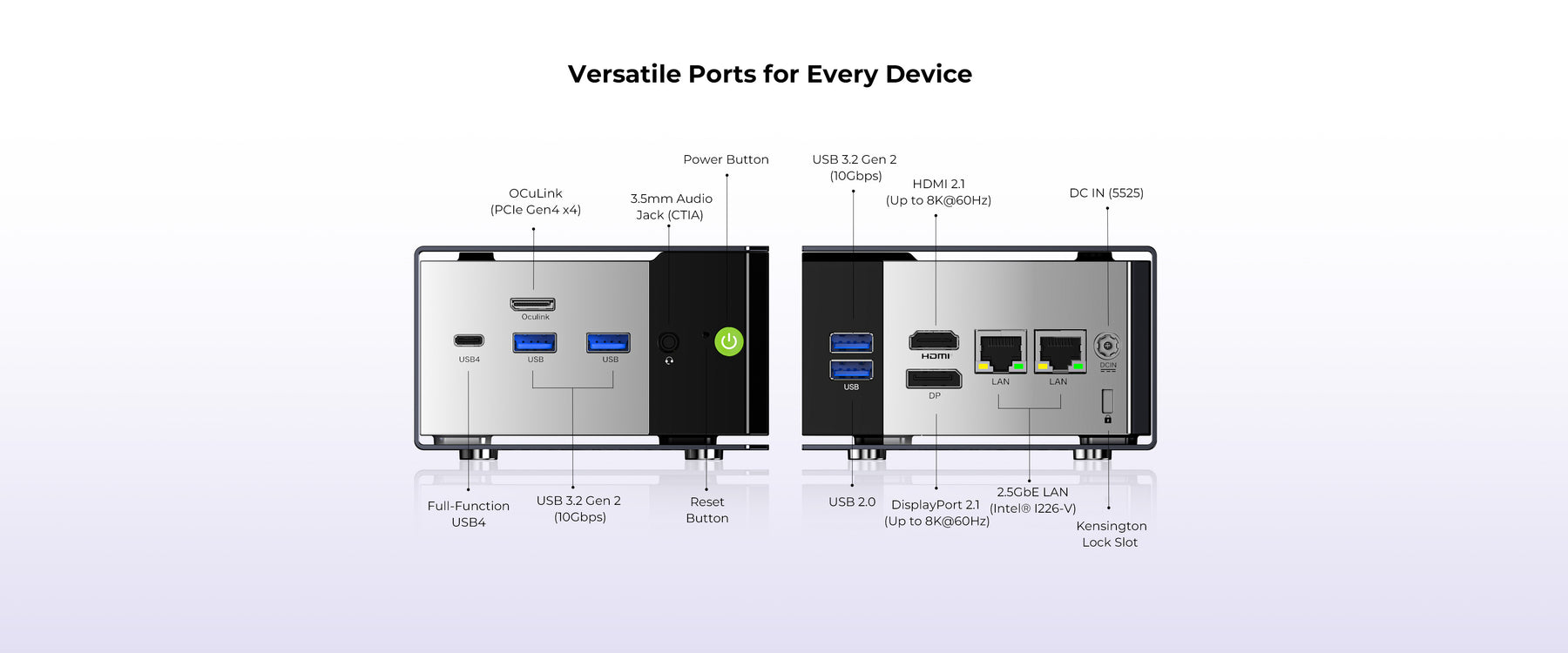

Front Panel I/O
Front Panel I/O and OCuLink Expansion
• 2 × USB-A 3.2 Gen2, Up to 10Gbps
• 1 × Full-featured USB4, Up to 40Gbps
• USB4 Supports PD 3.0 Power Input Up to 100W
• USB4 Supports Display Output Up to 4K@60Hz
• 1 × OCuLink, PCIe 4.0 ×4
• 1 × 3.5mm CTIA Audio Combo Jack
• 1 × Power Button with White LED
• 1 × Reset Button
• 2 × USB-A 3.2 Gen2, Up to 10Gbps
• 1 × Full-featured USB4, Up to 40Gbps
• USB4 Supports PD 3.0 Power Input Up to 100W
• USB4 Supports Display Output Up to 4K@60Hz
• 1 × OCuLink, PCIe 4.0 ×4
• 1 × 3.5mm CTIA Audio Combo Jack
• 1 × Power Button with White LED
• 1 × Reset Button
Rear Panel I/O
Rear Panel I/O
• 2 × USB-A 3.2 Gen2, Up to 10Gbps
• 1 × HDMI 2.1, Up to 8K@60Hz
• 1 × DisplayPort 2.1, Up to 8K@60Hz
• 2 × 2.5G RJ45 Ethernet Ports
• 1 × DC IN 5525 Power Connector
• 1 × Security Lock Slot
• 2 × USB-A 3.2 Gen2, Up to 10Gbps
• 1 × HDMI 2.1, Up to 8K@60Hz
• 1 × DisplayPort 2.1, Up to 8K@60Hz
• 2 × 2.5G RJ45 Ethernet Ports
• 1 × DC IN 5525 Power Connector
• 1 × Security Lock Slot

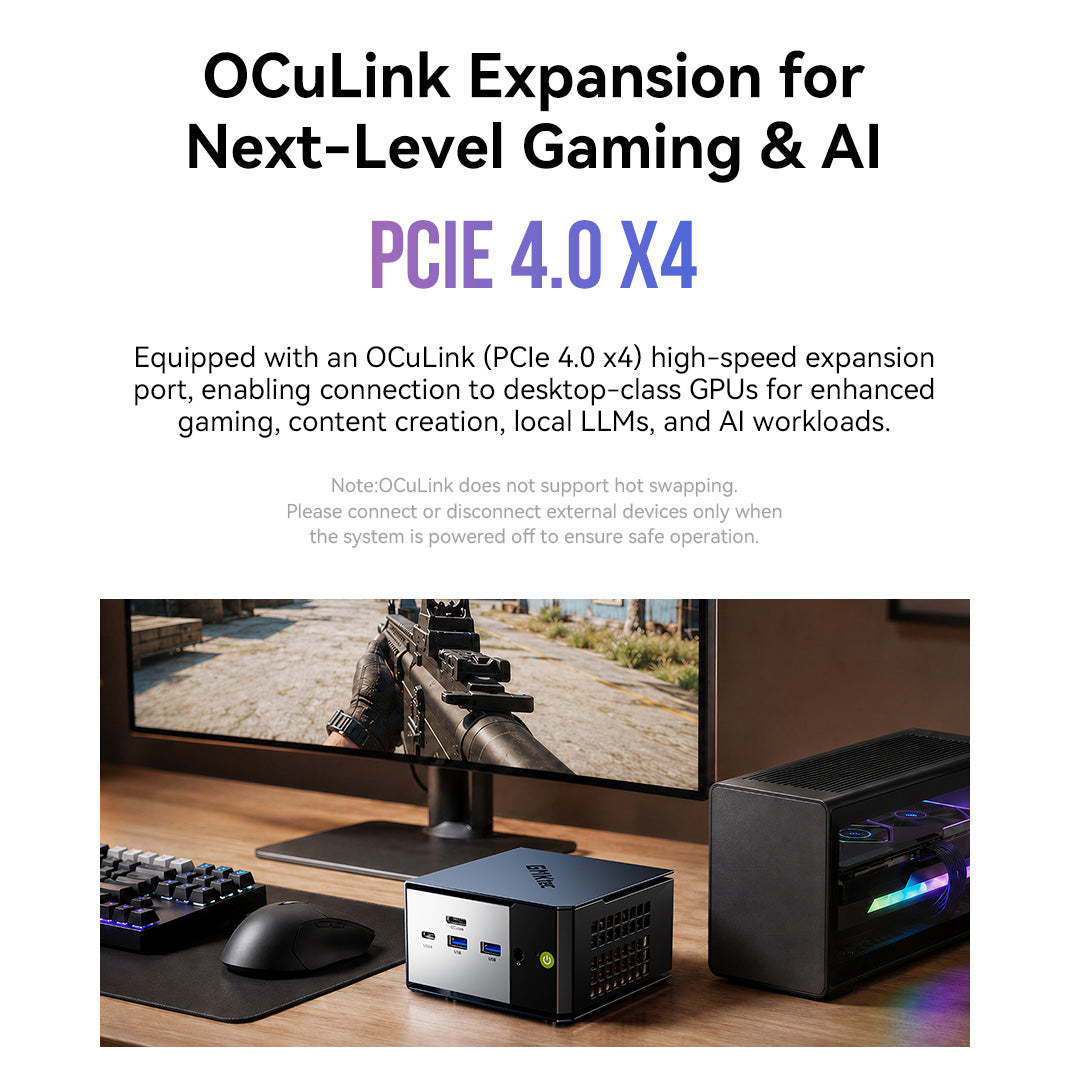

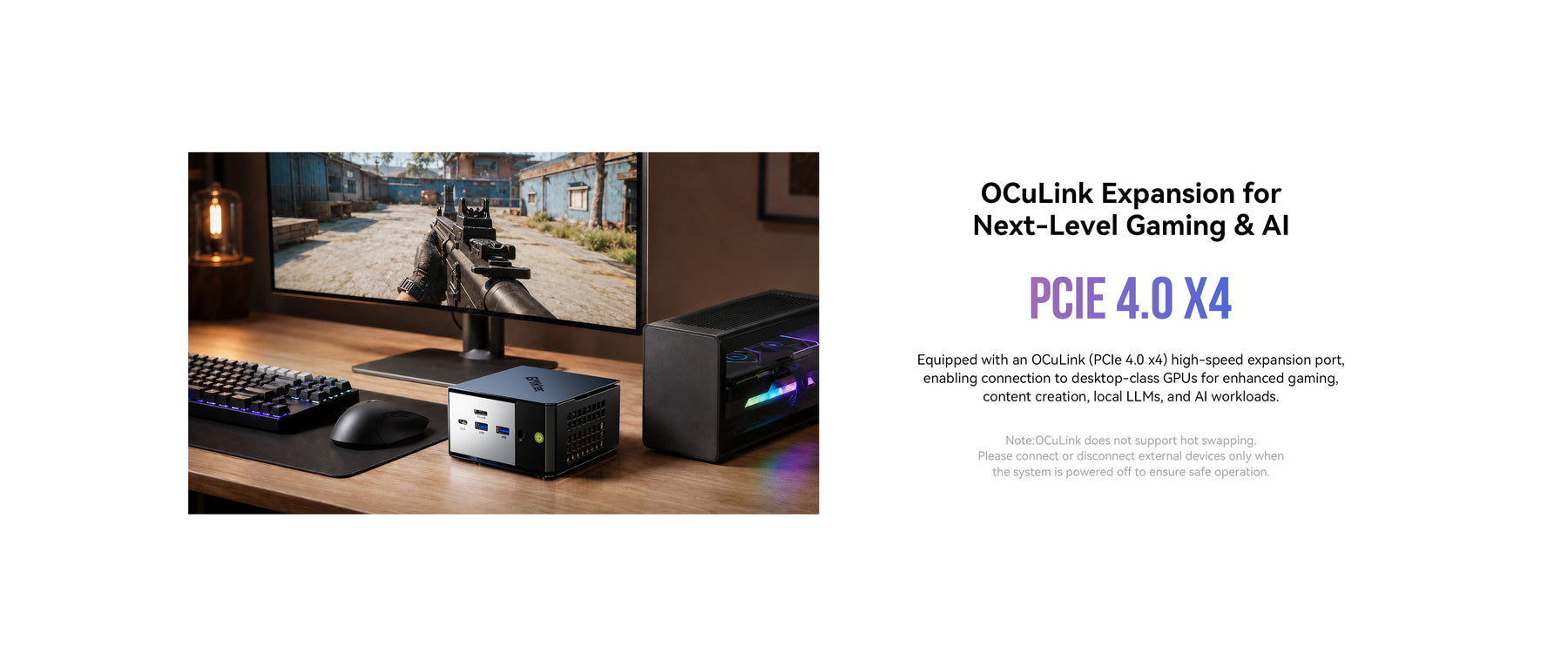

OCuLink Safety Notice
OCuLink Does Not Support Hot-plugging
• Connect or disconnect an OCuLink device only when the Mini PC is fully powered off.
• Connecting or disconnecting an OCuLink device while the Mini PC is powered on may damage the motherboard.
• Connect or disconnect an OCuLink device only when the Mini PC is fully powered off.
• Connecting or disconnecting an OCuLink device while the Mini PC is powered on may damage the motherboard.
Power
120W DC Power Input
• DC Input: 19V / 6.32A
• Supplied Power Adapter: 120W
• USB4 Supports PD 3.0 Power Input Up to 100W
• Built-in CMOS Battery
• DC Input: 19V / 6.32A
• Supplied Power Adapter: 120W
• USB4 Supports PD 3.0 Power Input Up to 100W
• Built-in CMOS Battery

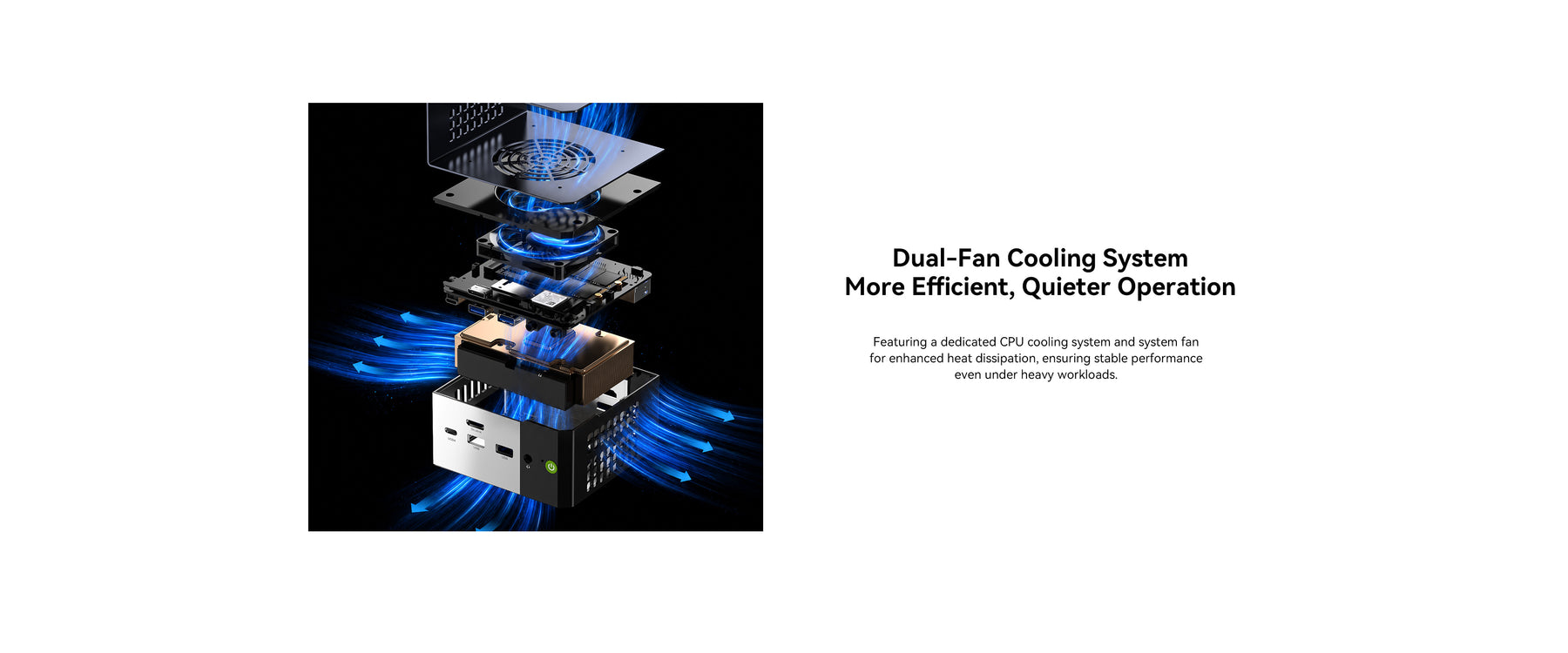

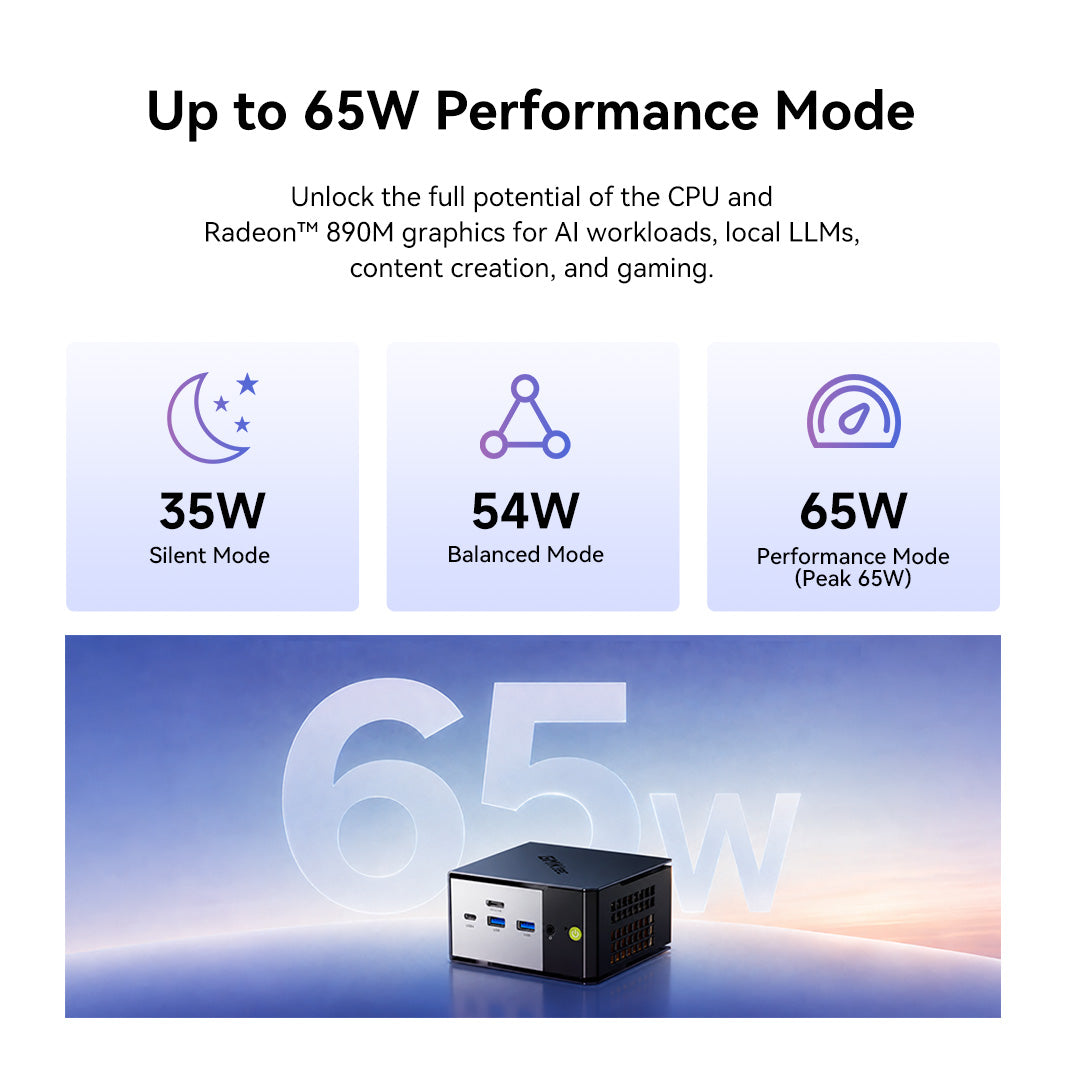

Cooling System and Performance Modes

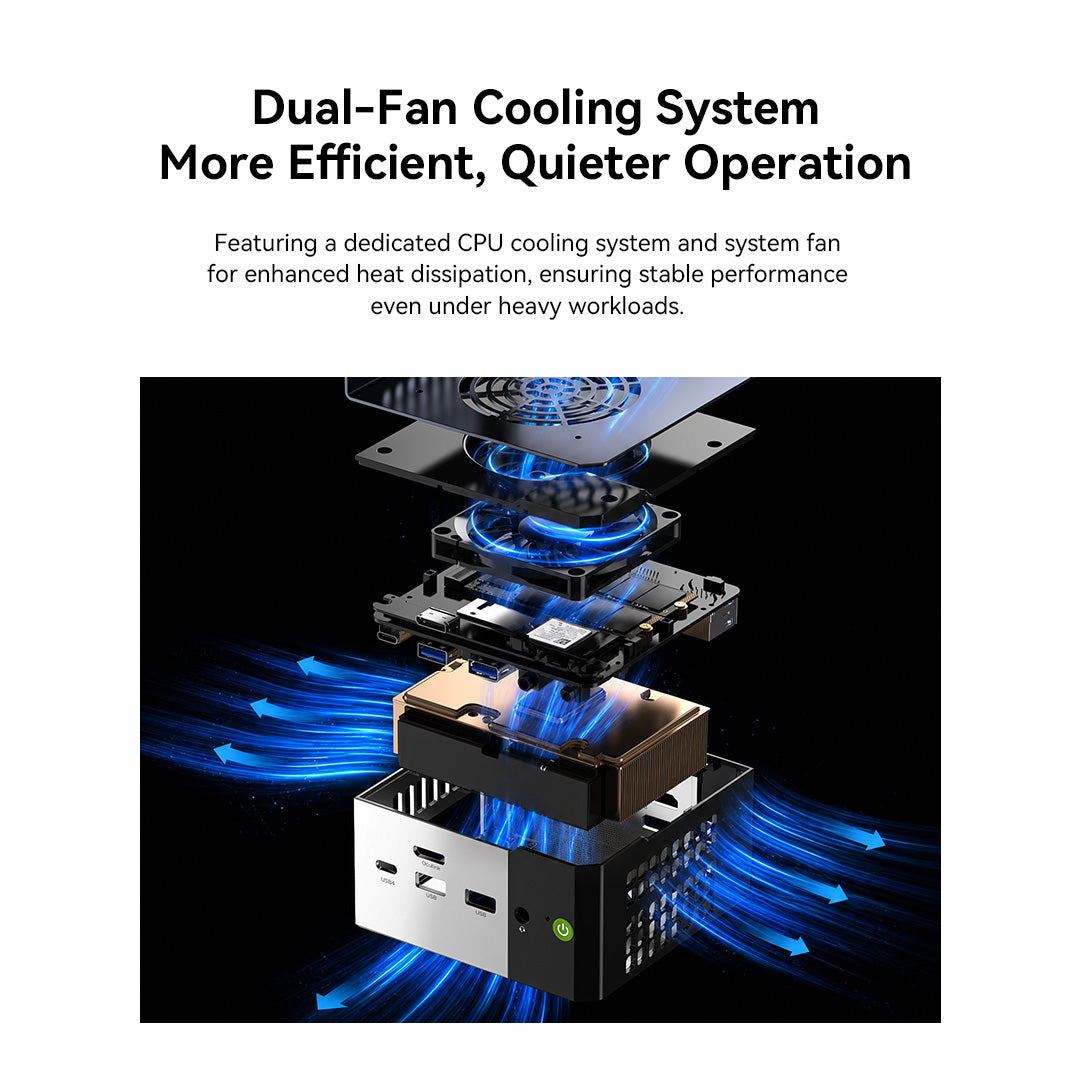

Vapour Chamber Dual-fan Cooling System
• Vapour Chamber Cooling
• Dual-fan Cooling Design
• Dedicated System Fan with Integrated Lighting
• Silent Mode: 35W
• Balanced Mode: 54W
• Performance Mode: Up to 65W Peak
• Vapour Chamber Cooling
• Dual-fan Cooling Design
• Dedicated System Fan with Integrated Lighting
• Silent Mode: 35W
• Balanced Mode: 54W
• Performance Mode: Up to 65W Peak
Design and Physical Specifications
Compact Metal Mini PC
• Dimensions: 107 × 111 × 63mm
• Net Weight: Approx. 590g
• Colour: Metal Grey
• CNC-machined, Sandblasted and Anodised Metal Frame
• Plastic Internal Components
• Quick-release SSD Access Design
• Stand Included
• Dimensions: 107 × 111 × 63mm
• Net Weight: Approx. 590g
• Colour: Metal Grey
• CNC-machined, Sandblasted and Anodised Metal Frame
• Plastic Internal Components
• Quick-release SSD Access Design
• Stand Included
Operating System
Windows 11 Pro Support
• Default System Language: English
• Supports 14 System Languages
• Microsoft Office 365 Not Included
• Default System Language: English
• Supports 14 System Languages
• Microsoft Office 365 Not Included
Package Contents
GMKtec EVO-X1 Pro Mini PC
• 120W Power Adapter
• HDMI Cable
• Stand
• User Manual
• Warranty Card
• Keyboard and Mouse Optional, Not Included
• 120W Power Adapter
• HDMI Cable
• Stand
• User Manual
• Warranty Card
• Keyboard and Mouse Optional, Not Included
Warranty and Operating Environment
• Warranty: 1 Year
• Operating Temperature: 0°C to 40°C
• Operating Temperature: 0°C to 40°C
