In Stock

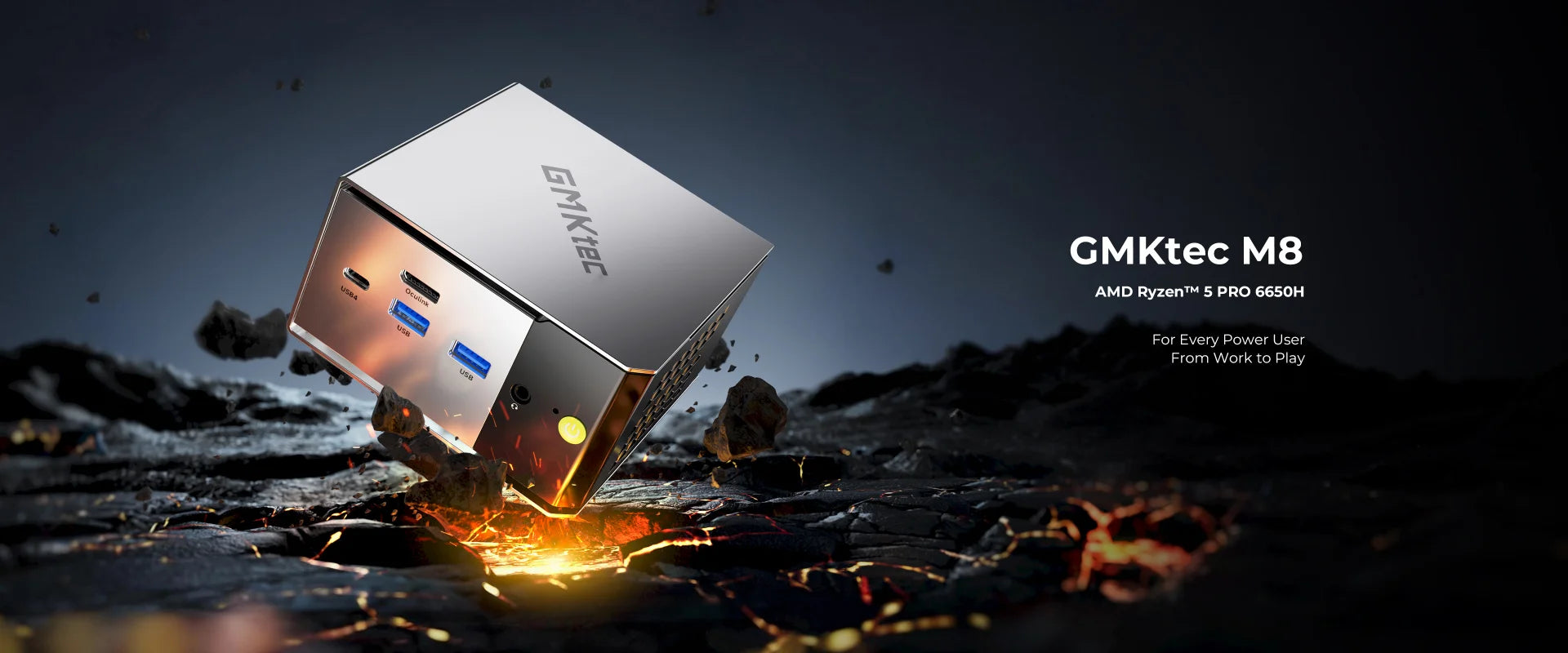

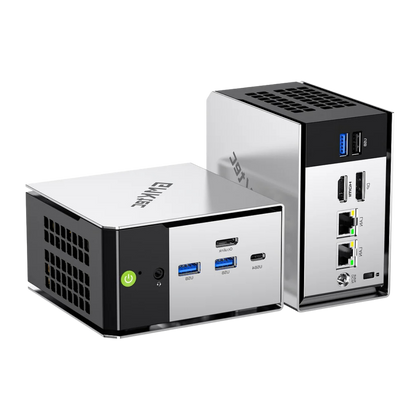

GMKtec NucBox M8 AMD Ryzen™ 5 PRO 6650H Mini PC
£329.99
£409.99
- CPU & Graphics: AMD Ryzen™ 5 PRO 6650H processor with 6 cores, 12 threads, boost speeds of up to 4.5 GHz, and AMD Radeon™ 660M graphics
- Memory & Storage: 16 GB LPDDR5-6400 memory with M.2 2280 SSD storage, plus dual PCIe 4.0 slots supporting expansion up to 16 TB
- Display & Connectivity: HDMI, DisplayPort and USB4 with support for up to 8K output, plus Wi-Fi 6E, Bluetooth 5.2, dual 2.5 Gigabit LAN and OCuLink
- Ideal For: Home office, multitasking, media use and high-performance everyday computing
GMKtec NucBox M8 AMD Ryzen™ 5 PRO 6650H Mini PC
£329.99
£409.99
Specification
General
CPU

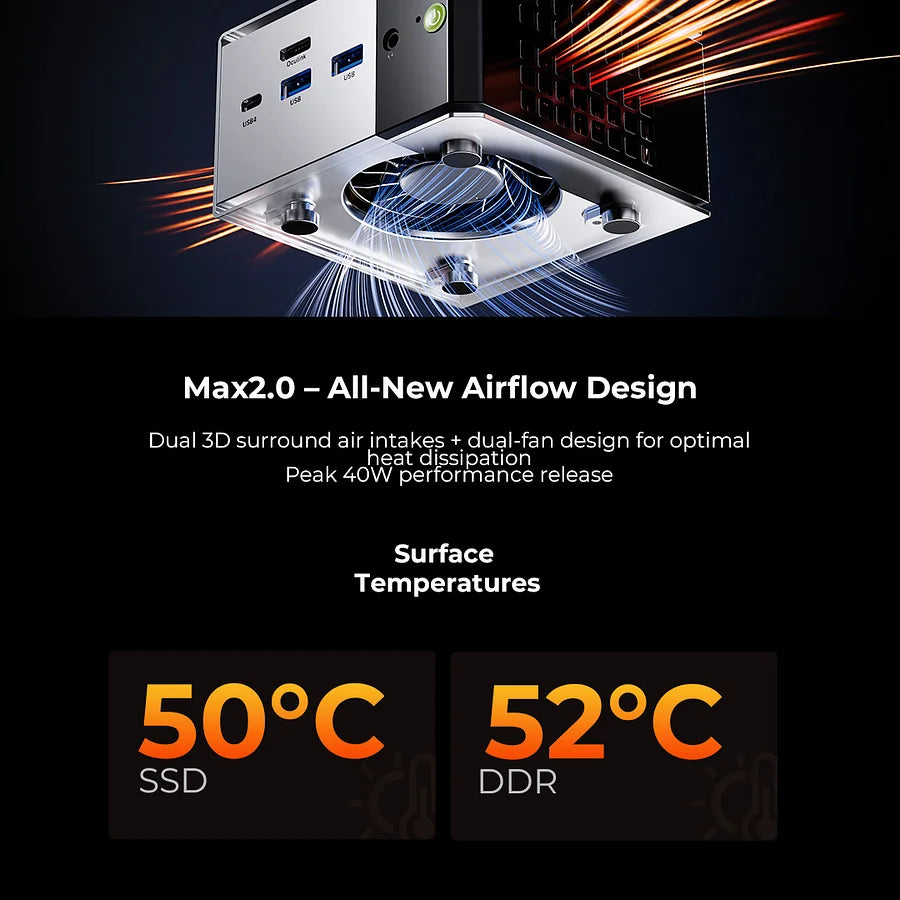

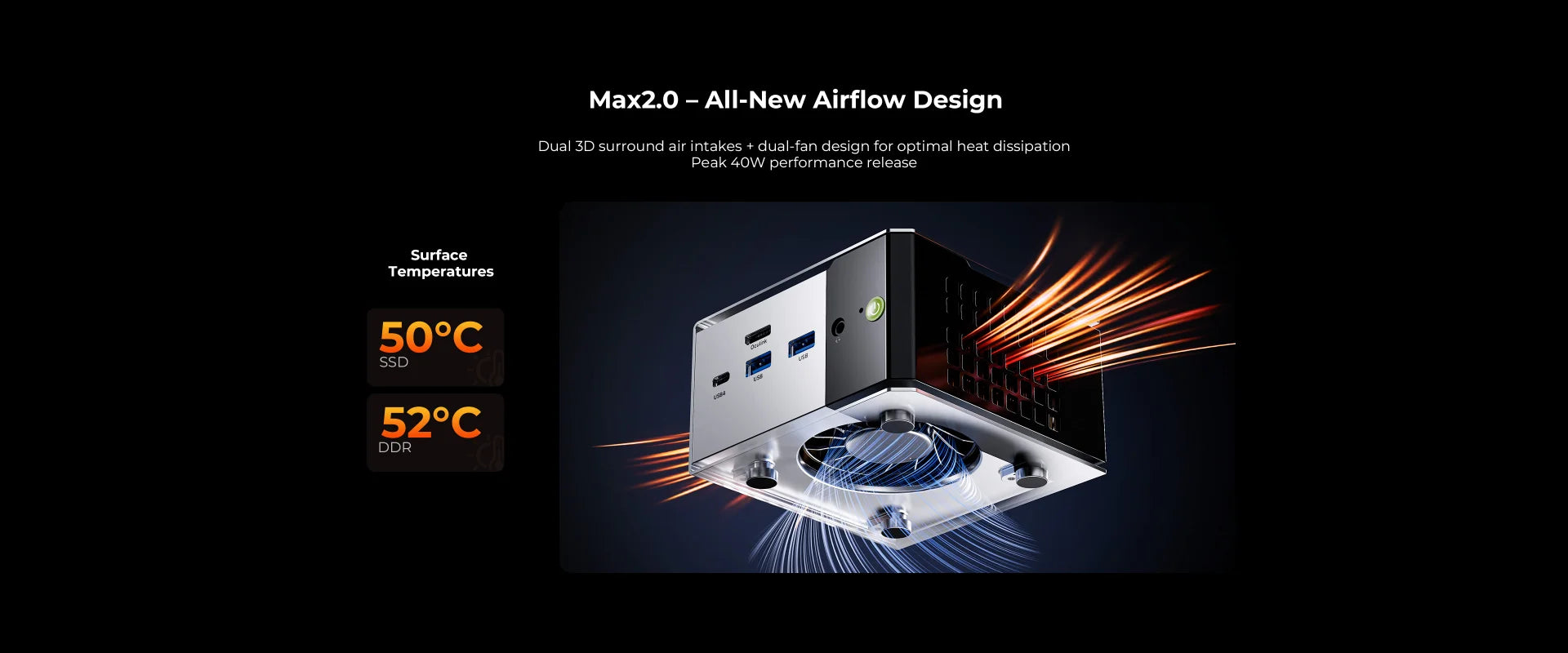

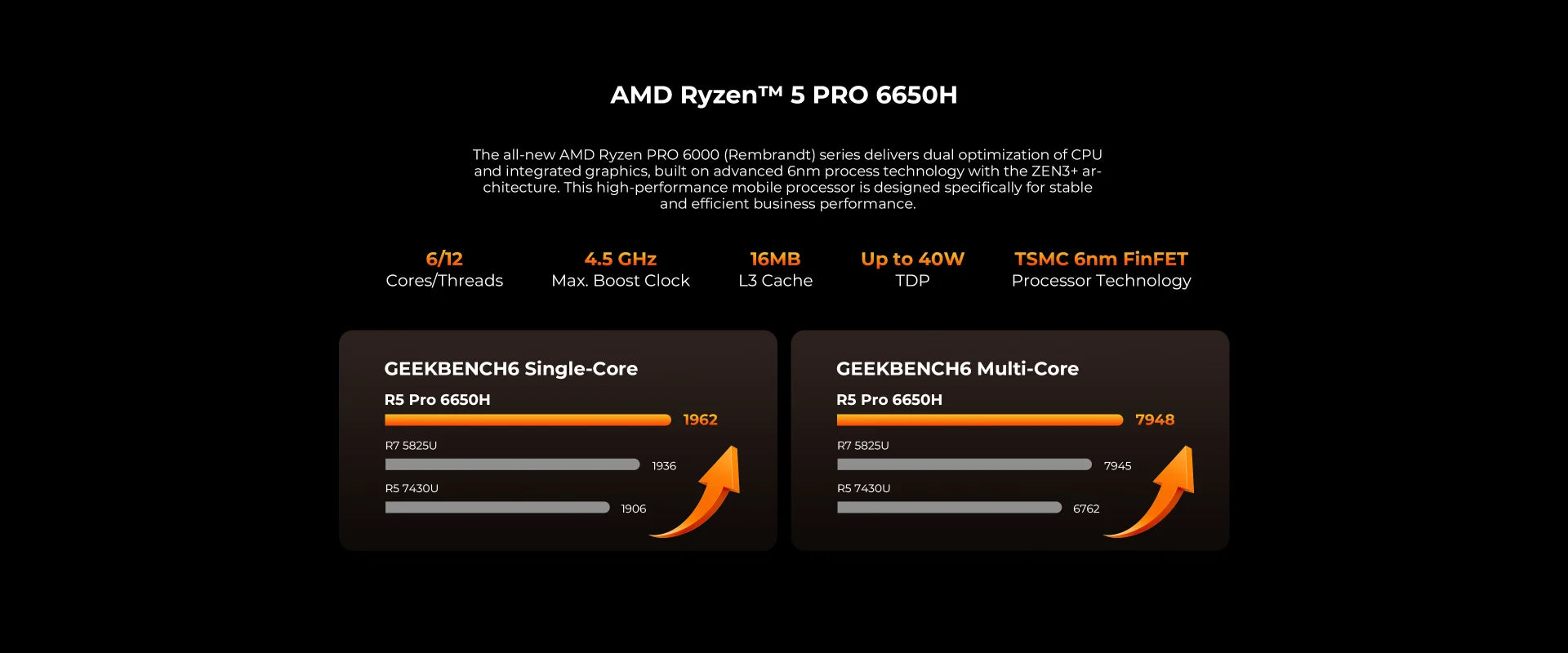

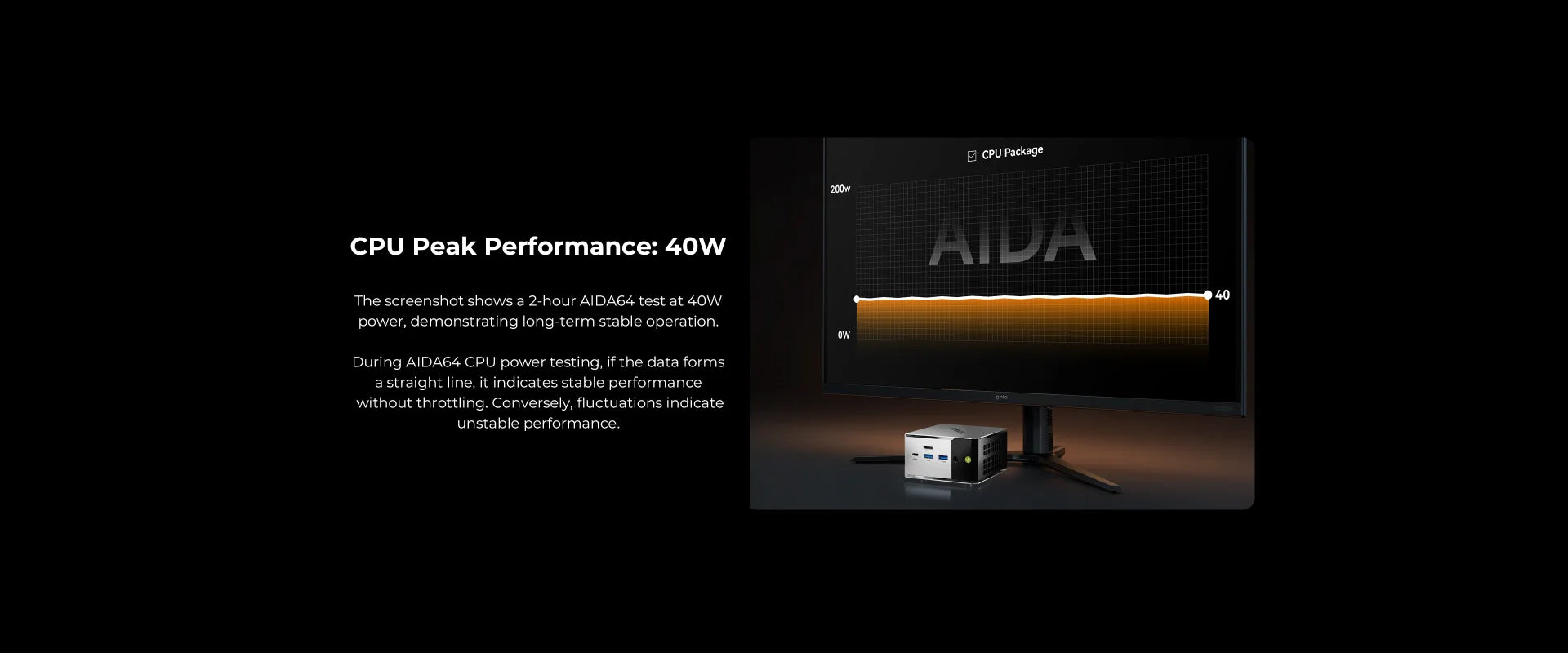

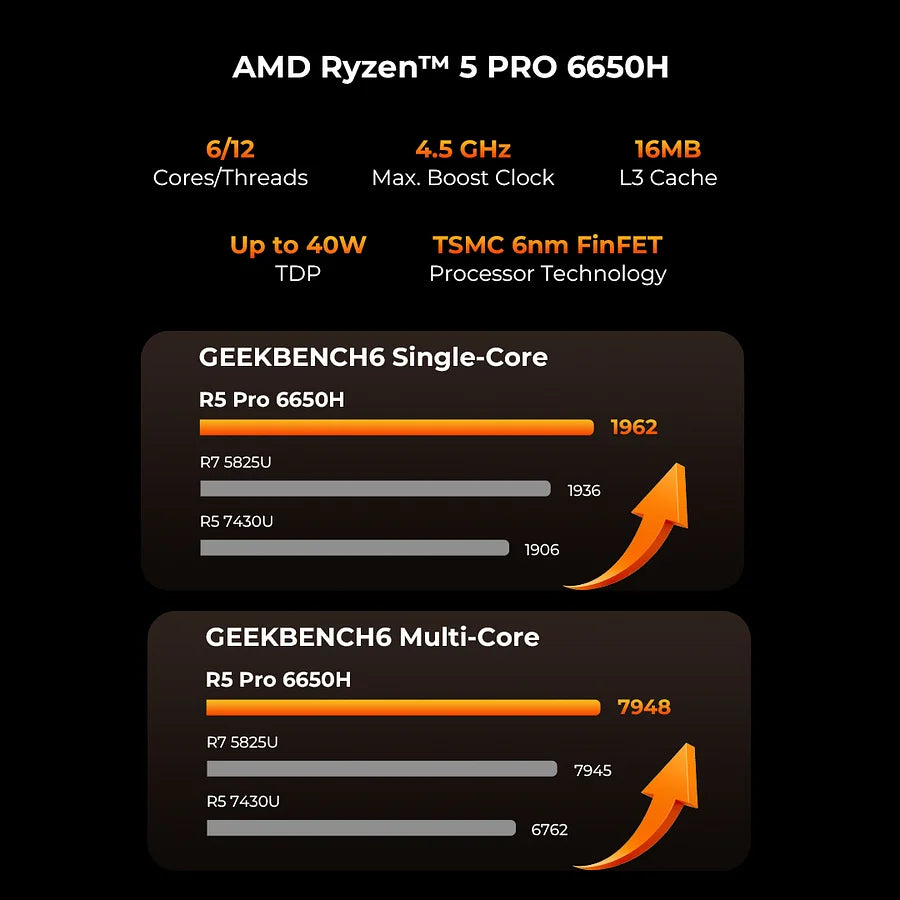

AMD Ryzen PRO 6000 Series, 6 cores / 12 threads, TSMC 6nm FinFET process, base frequency: 3.3GHz, MAX 4.5GHz; 3MB L2 Cache / 16MB L3 Cache; Zen 3+ CPU architecture; Silent mode: 28W, Balanced mode: 35W, Performance mode: 40W (peak 40W)
CPU Model
AMD Ryzen™ 5 PRO 6650H
CPU Package
TSMC 6nm FinFET process
GPU
AMD Radeon™ 660M, 6 cores 1900 MHz; GPU max capacity 2GB
Memory

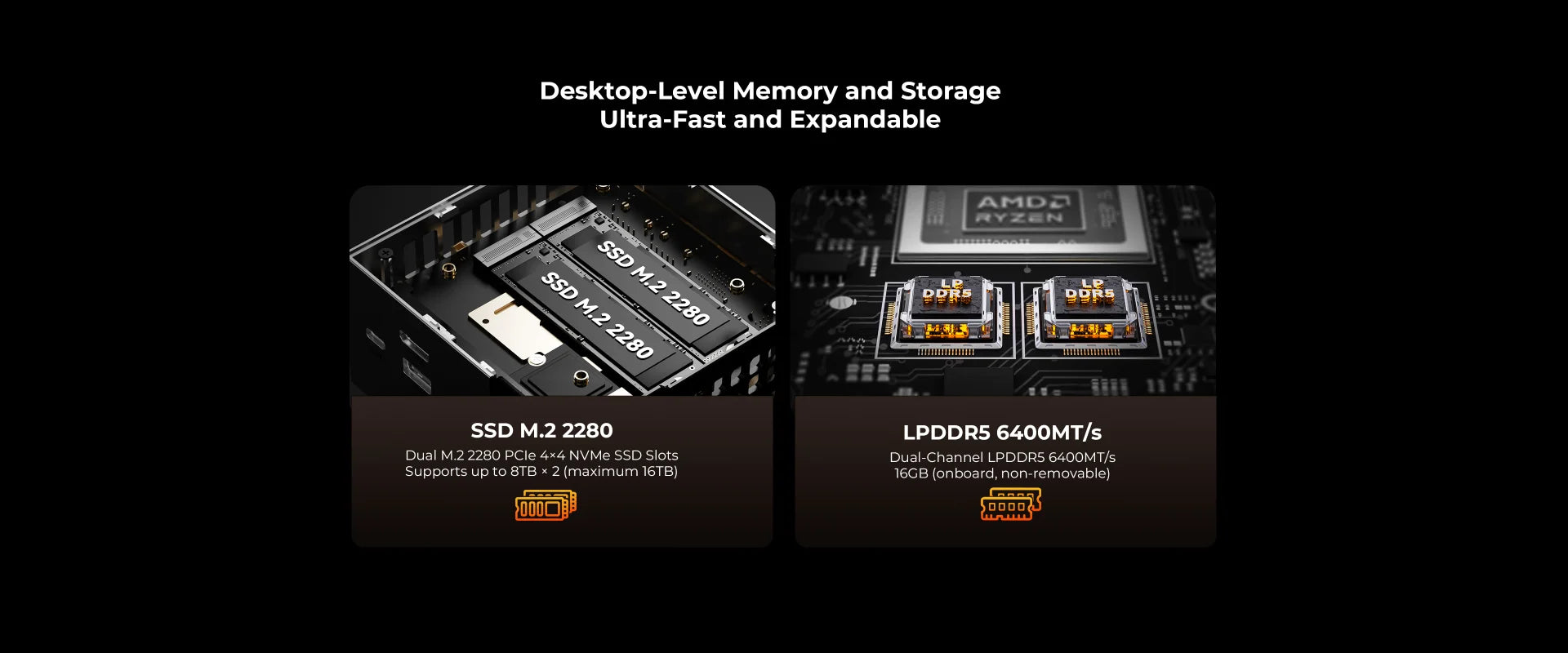

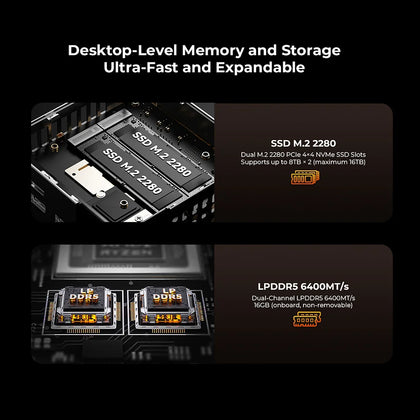

LPDDR5 6400MT/s 16GB onboard (dual-chip design, non-removable), theoretical max 64GB
Storage
PCIe 3.0 M.2 2280 SSD; 512GB / 1TB pre-installed; primary SSD slot next to WiFi module
Internal Expansion
2×M.2 2280 PCIe 4.0×4 (max 8TB each, total 16TB); supports PCIe 3.0/4.0, not compatible with SATA drives
Graphics Output

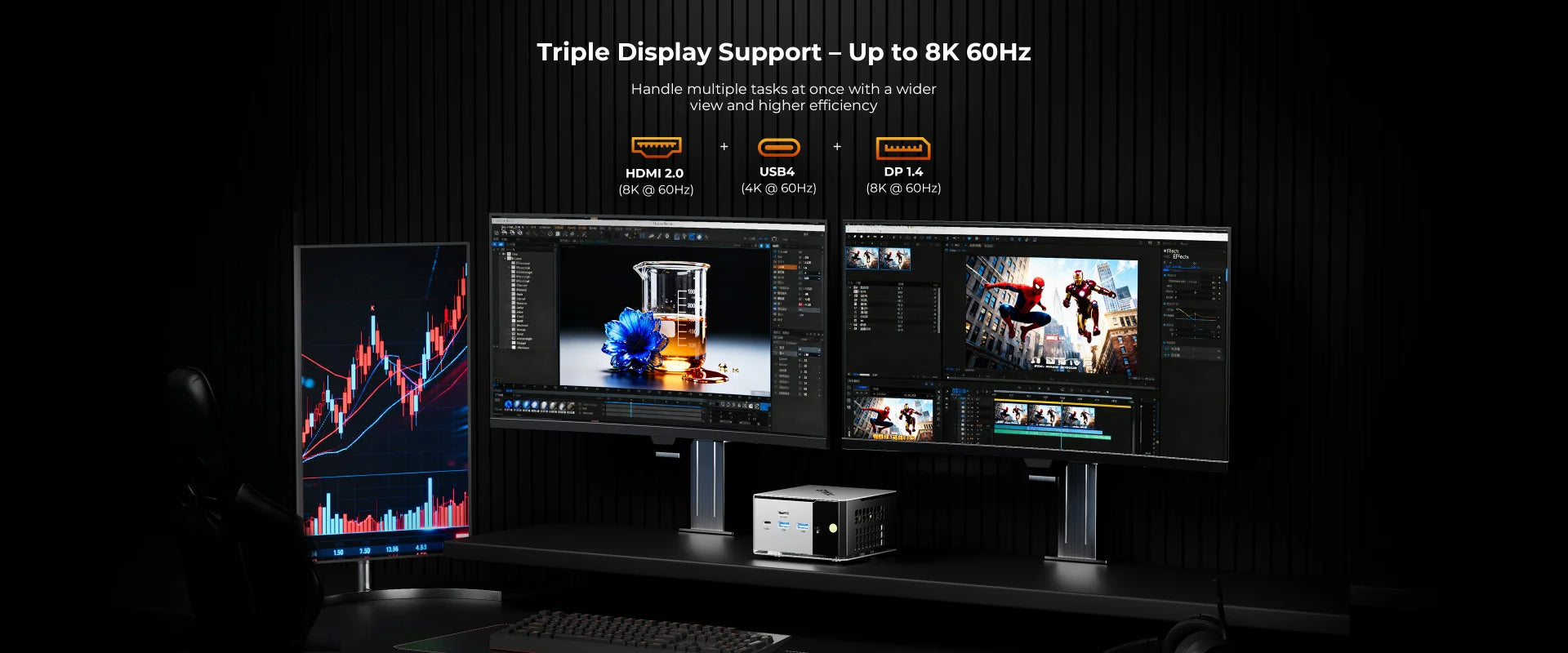

HDMI + DP + USB4 triple-screen output, supports up to 8K resolution
Networking
WiFi 6E (802.11 a/b/g/n/ac/ax RZ616, up to 2.4Gbps), Bluetooth 5.2, Dual 2.5G LAN (RTL8125BG)
Power
DC IN 20V 5A (100W); built-in button cell battery

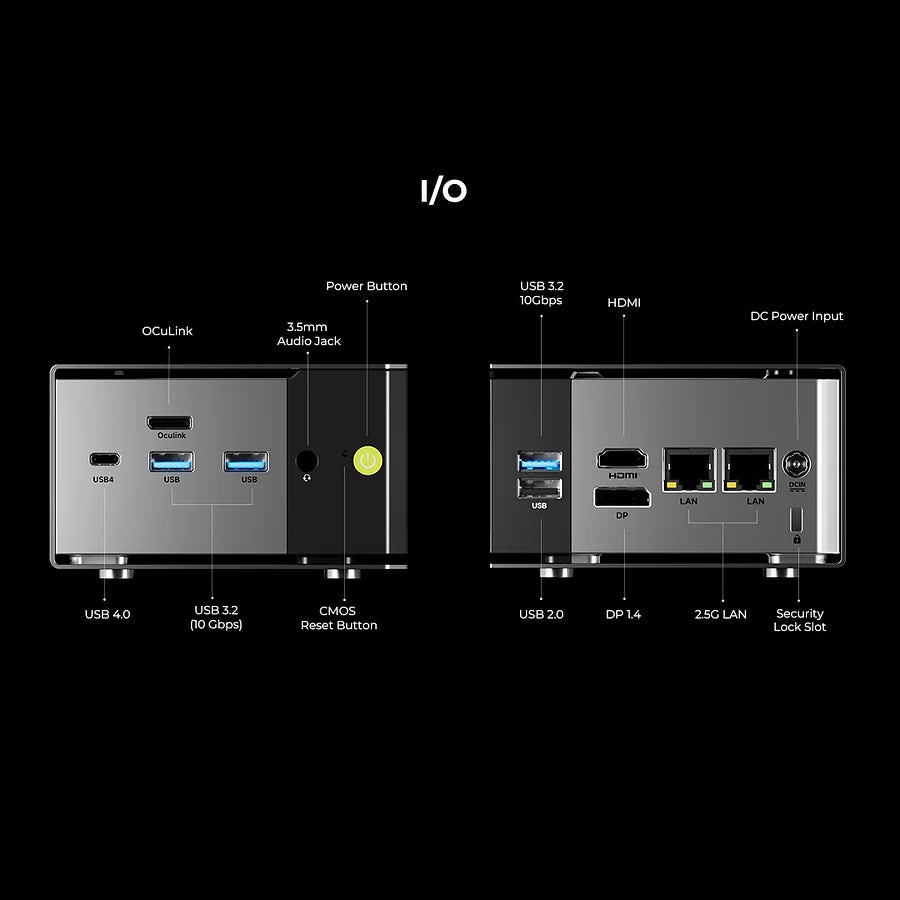

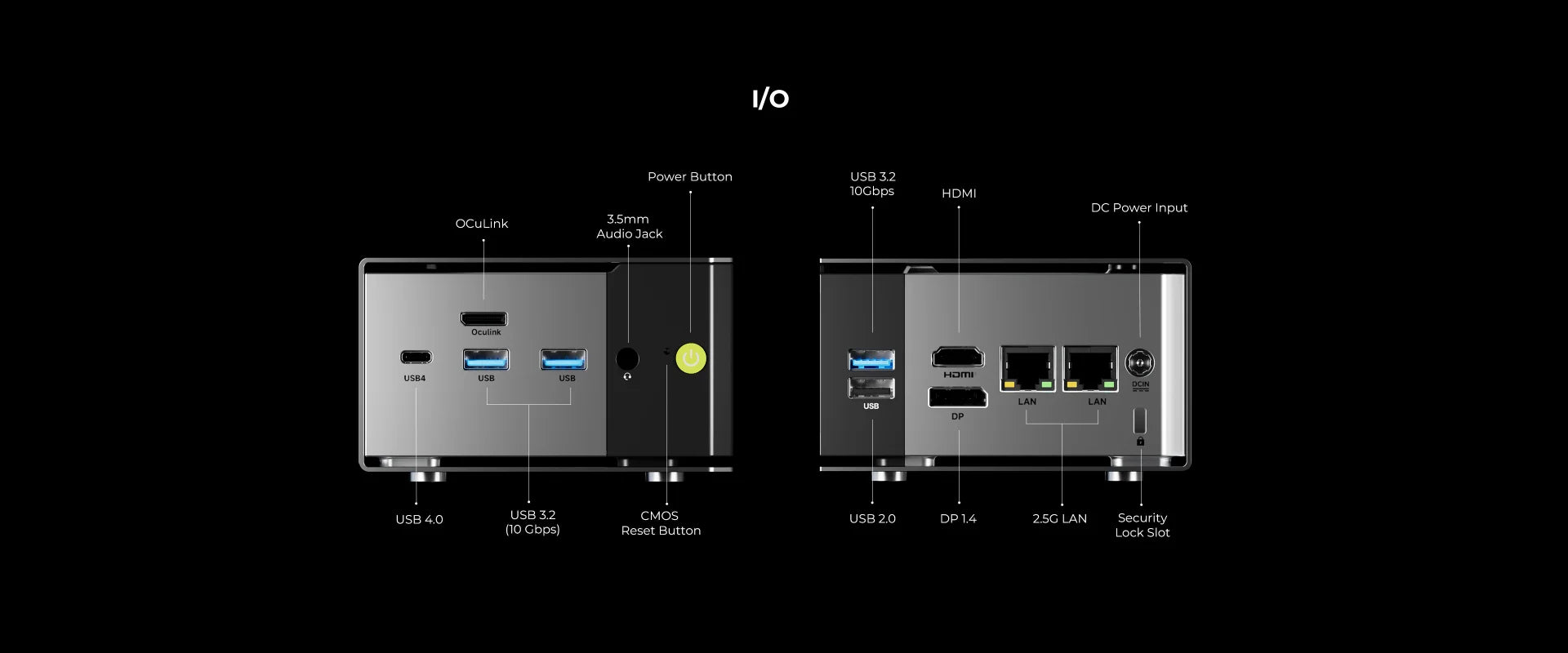

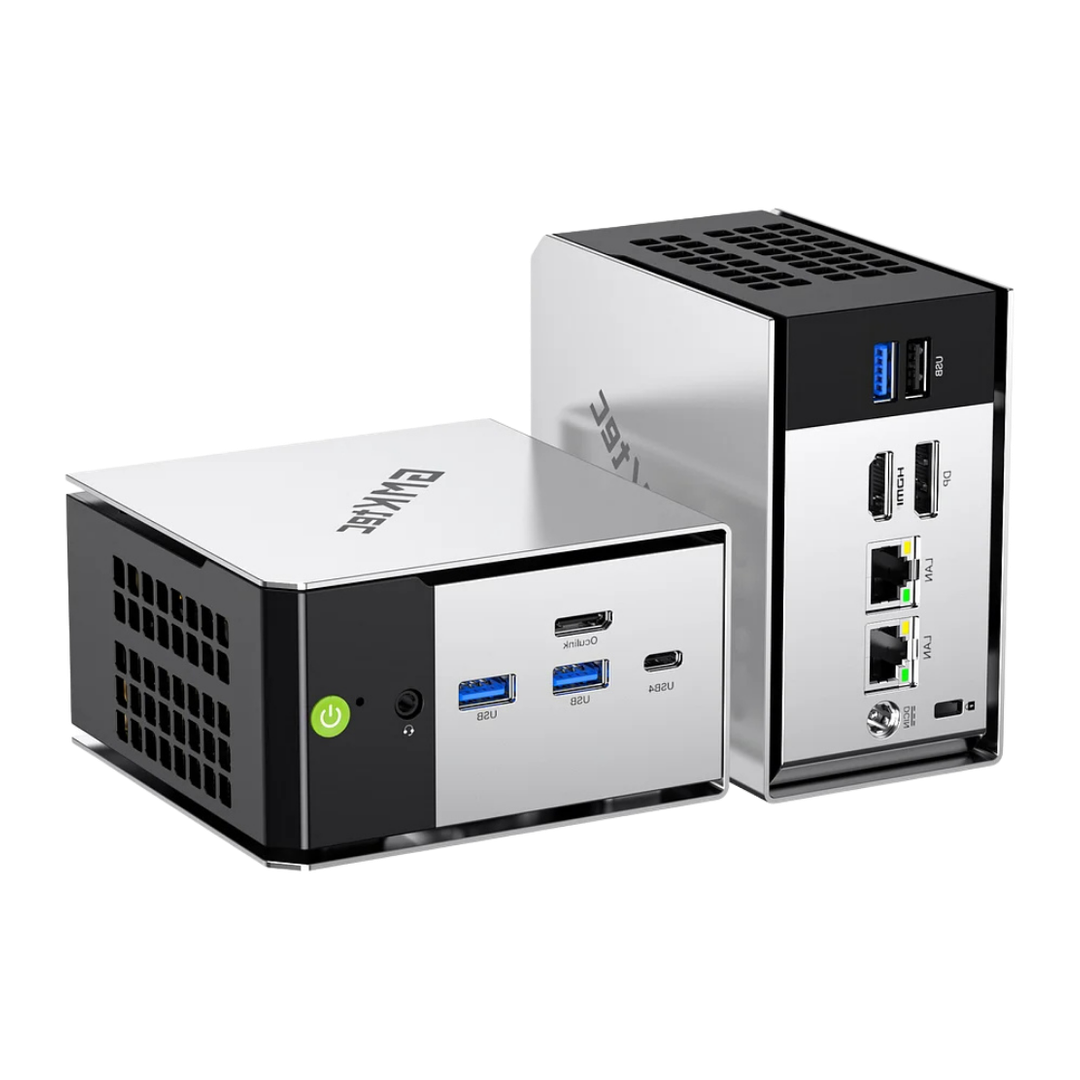

Front I/O
• 2×USB 3.2 Gen2 (10Gbps)

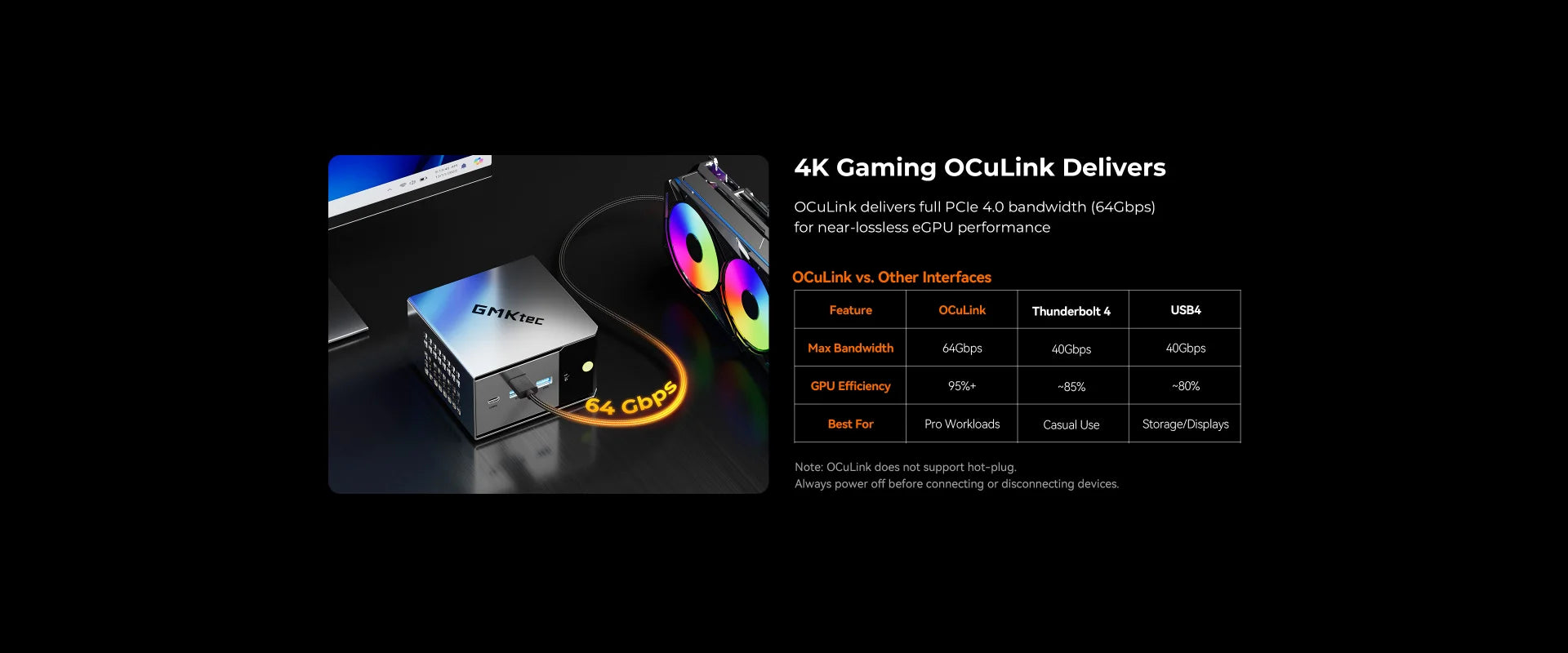

• 1×OCulink (PCIe Gen4 ×4)

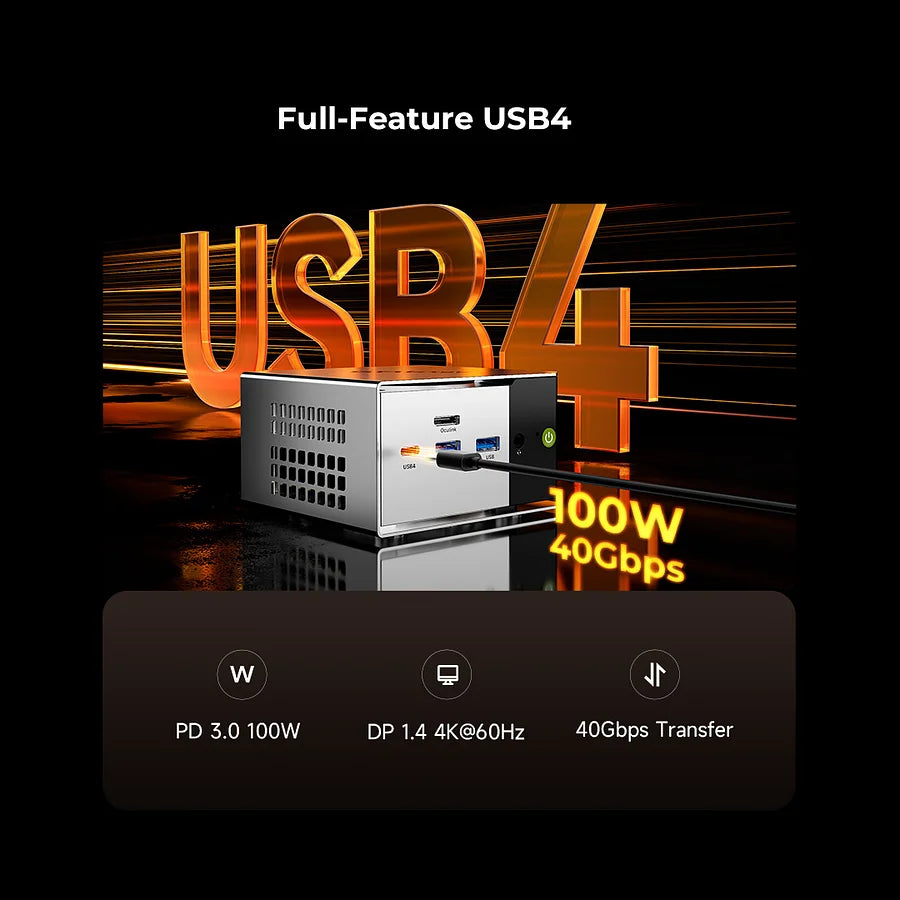

• 1×USB4 (full function, supports 40Gbps / PD3.0 100W input / DP1.4 4K@60Hz)
• 1×3.5mm Audio Jack (CTIA standard)
• 1×Power button (white LED indicator)
• 1×Reset button (system reset when powered on, CMOS clear when powered off)
⚠️ Note: The OCulink port does not support hot plugging. Please connect/disconnect only when the system is powered off to avoid motherboard damage.
• 1×OCulink (PCIe Gen4 ×4)
• 1×USB4 (full function, supports 40Gbps / PD3.0 100W input / DP1.4 4K@60Hz)
• 1×3.5mm Audio Jack (CTIA standard)
• 1×Power button (white LED indicator)
• 1×Reset button (system reset when powered on, CMOS clear when powered off)
⚠️ Note: The OCulink port does not support hot plugging. Please connect/disconnect only when the system is powered off to avoid motherboard damage.
Rear I/O
• 1×USB 3.2 Gen2 (10Gbps)
• 1×USB 2.0 (480Mbps)
• 1×HDMI 2.0 (8K@60Hz)
• 1×DisplayPort 1.4 (8K@60Hz)
• 2×RJ45 LAN (2.5Gbps)
• 1×DC IN (5.5/2.5mm)
• 1×Security lock hole
• 1×USB 2.0 (480Mbps)
• 1×HDMI 2.0 (8K@60Hz)
• 1×DisplayPort 1.4 (8K@60Hz)
• 2×RJ45 LAN (2.5Gbps)
• 1×DC IN (5.5/2.5mm)
• 1×Security lock hole
OS
Windows 11 Pro pre-installed; supports Linux and Ubuntu
Dimensions
107 × 111 × 63 mm
Weight
Approx. 490g (bare unit); 1.7kg (package)
Package Contents
Power adapter, HDMI cable, User manual, Warranty card (no VESA mount included)
