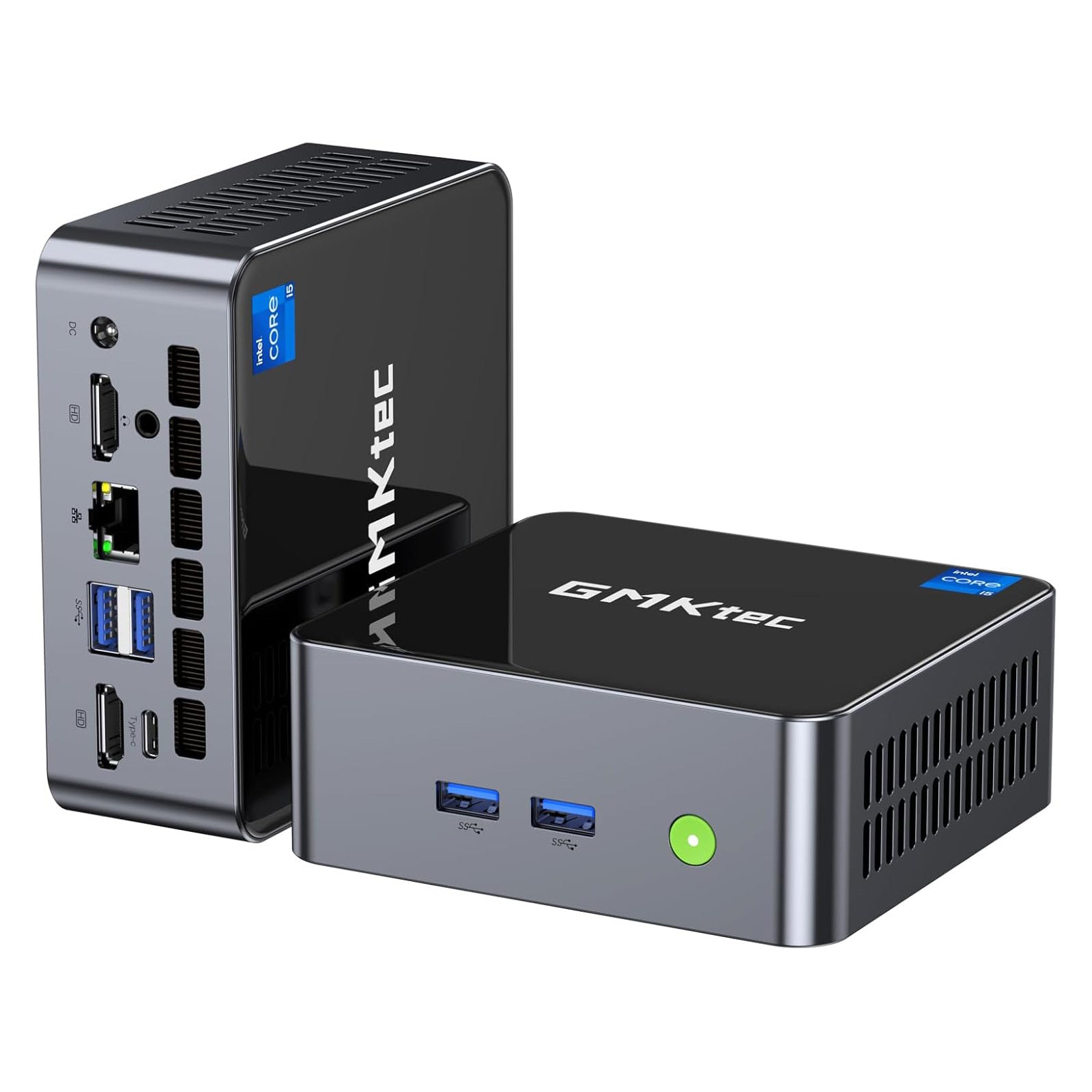

GMKtec NucBox M3 Pro 13th Gen Intel® Core™ i5-13500H Mini PC
£289.99
£339.99
- Powerful 13th Gen Intel® Core™ performance: Powered by the Intel® Core™ i5-13500H processor with 12 cores, 16 threads, up to 4.7GHz turbo speed and 45W peak performance.
- Intel® Iris® Xe eligible graphics: 80EU integrated graphics up to 1.45GHz support smooth office work, 4K media playback and everyday creative tasks.
- Expandable DDR4 memory: Dual SO-DIMM DDR4 3200MT/s slots support up to 64GB RAM for faster multitasking and smoother workflows.
- Dual M.2 SSD expansion: M.2 2280 PCIe 4.0 and M.2 2242 SATA/PCIe slots support high-capacity storage upgrades for work, media and files.
- Triple 4K display support: Connect up to three displays via 2× HDMI 2.0 and 1× USB-C with DP output for efficient multi-screen productivity.
- Fast wired and wireless networking: WiFi 6, Bluetooth 5.2 and 2.5G LAN deliver stable, high-speed connectivity for work, streaming and downloads.
- Compact premium design: A 114 × 106 × 42.5mm mini body with CNC metal frame, tempered glass top and VESA mount support saves desk space.
- Quiet copper-pipe cooling: Copper-pipe turbine cooling and dual-direction airflow help keep performance stable, quiet and efficient.
- Windows 11 Pro pre-installed: Ready to use out of the box for business, home office, study and everyday productivity.
GMKtec NucBox M3 Pro 13th Gen Intel® Core™ i5-13500H Mini PC
£289.99
£339.99
Specification
General
CPU
13th Gen Intel® Core™ i5-13500H
12 Cores / 16 Threads
Intel 7 Process Technology
Max Turbo Frequency: up to 4.7GHz
18MB Intel® Smart Cache
12 Cores / 16 Threads
Intel 7 Process Technology
Max Turbo Frequency: up to 4.7GHz
18MB Intel® Smart Cache
GPU
Intel® Iris® Xe Graphics eligible
80 Execution Units
Graphics Max Dynamic Frequency: up to 1.45GHz
Suitable for office work, 4K video playback and everyday creative tasks
80 Execution Units
Graphics Max Dynamic Frequency: up to 1.45GHz
Suitable for office work, 4K video playback and everyday creative tasks
Power Modes
Silent Mode: 28W
Balanced Mode: 35W
Performance Mode: 40W
Peak Power: 45W
Balanced Mode: 35W
Performance Mode: 40W
Peak Power: 45W

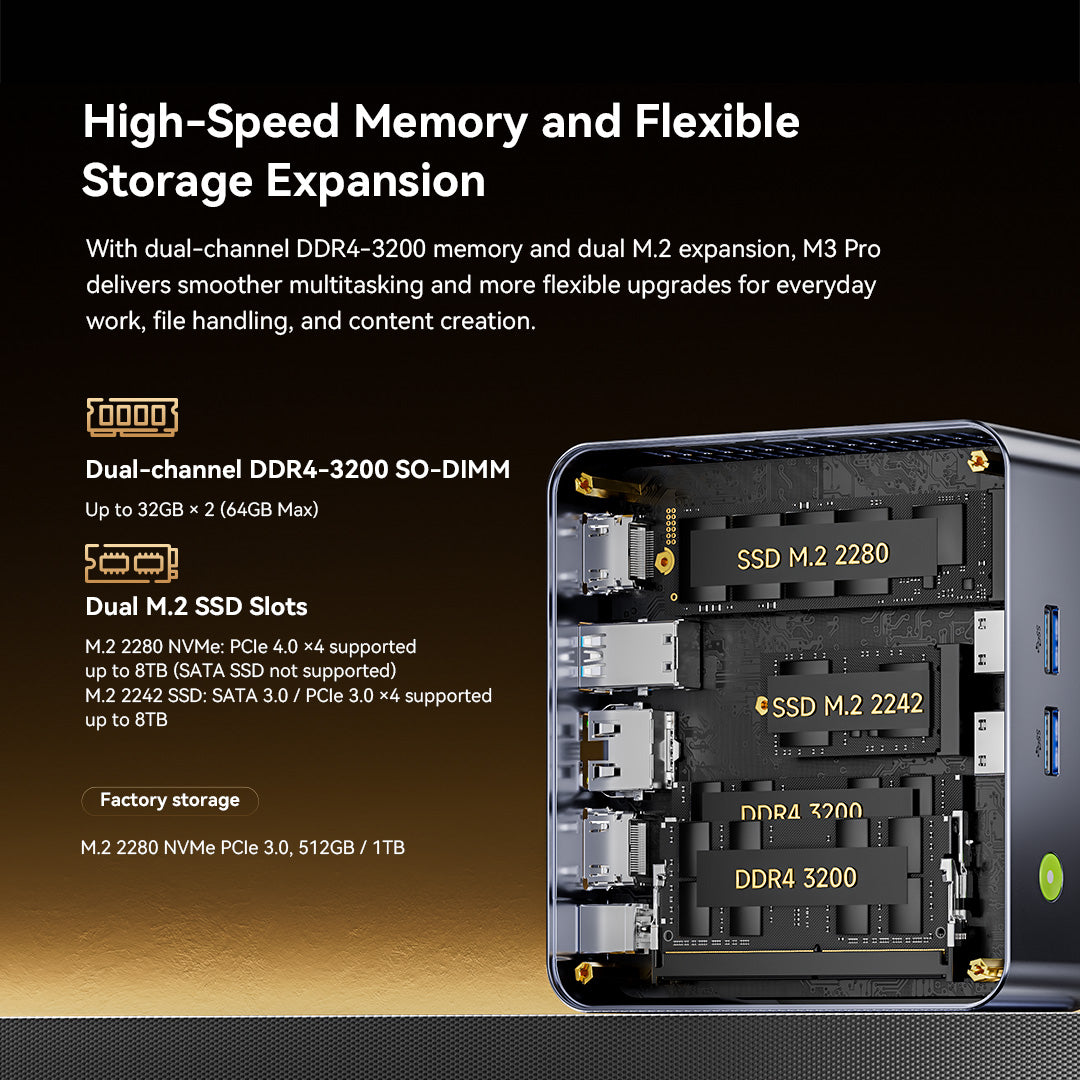

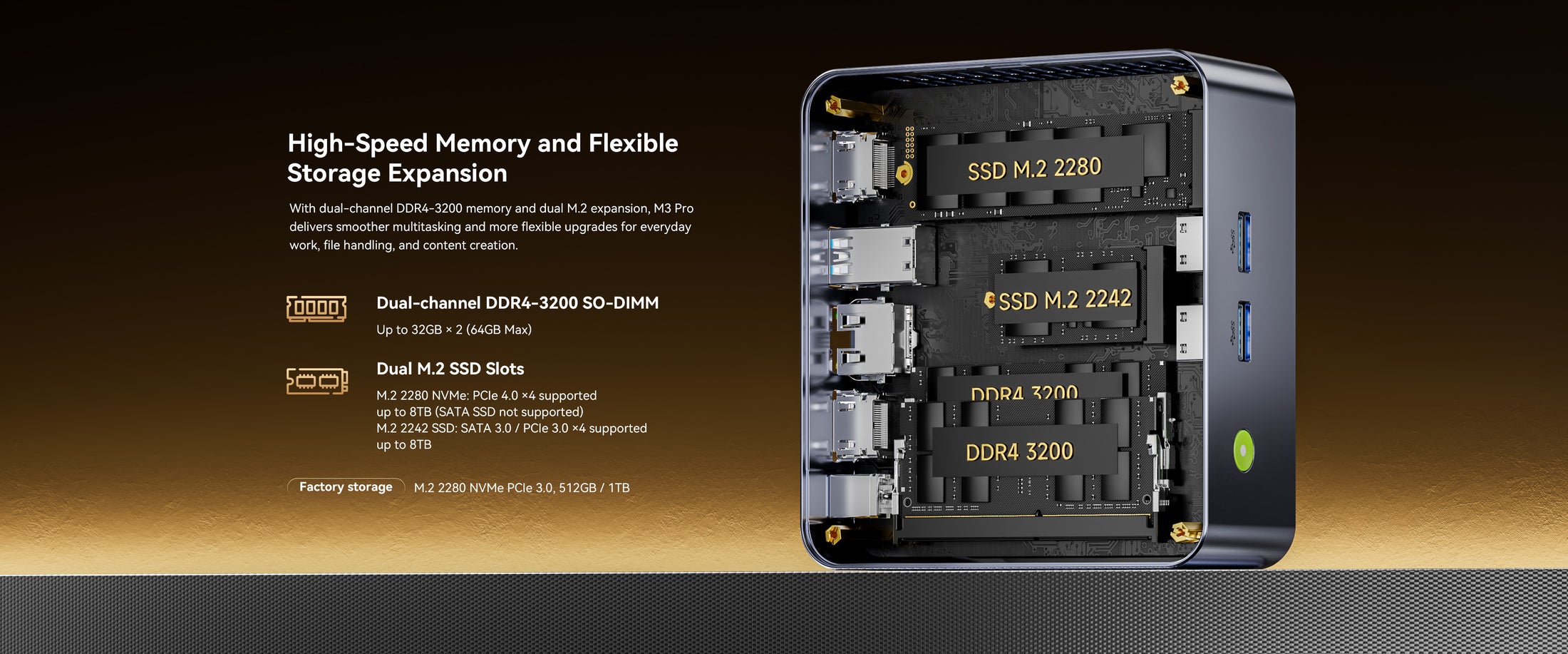

Memory
DDR4 3200 MT/s SO-DIMM
2 × SO-DIMM slots
16GB / 32GB options available
Maximum Memory: up to 64GB, 32GB × 2
Dual-channel memory required
DDR5 is not supported
2 × SO-DIMM slots
16GB / 32GB options available
Maximum Memory: up to 64GB, 32GB × 2
Dual-channel memory required
DDR5 is not supported
Storage
M.2 2280 NVMe SSD
512GB / 1TB options available
Included SSD Interface: PCIe 3.0
Motherboard design supports PCIe 4.0
1 × M.2 2280 PCIe 4.0 ×4 slot, up to 8TB
1 × M.2 2242 slot, supports SATA 3.0 and PCIe 3.0 ×4, up to 8TB
Dual M.2 SSD slots supported
M.2 2280 SATA SSD is not supported
512GB / 1TB options available
Included SSD Interface: PCIe 3.0
Motherboard design supports PCIe 4.0
1 × M.2 2280 PCIe 4.0 ×4 slot, up to 8TB
1 × M.2 2242 slot, supports SATA 3.0 and PCIe 3.0 ×4, up to 8TB
Dual M.2 SSD slots supported
M.2 2280 SATA SSD is not supported
Display Output
Triple display output supported
2 × HDMI 2.0, up to 4K@60Hz
1 × USB-C with DisplayPort output, up to 4K@60Hz
Maximum Resolution: 4096 × 2160
2 × HDMI 2.0, up to 4K@60Hz
1 × USB-C with DisplayPort output, up to 4K@60Hz
Maximum Resolution: 4096 × 2160

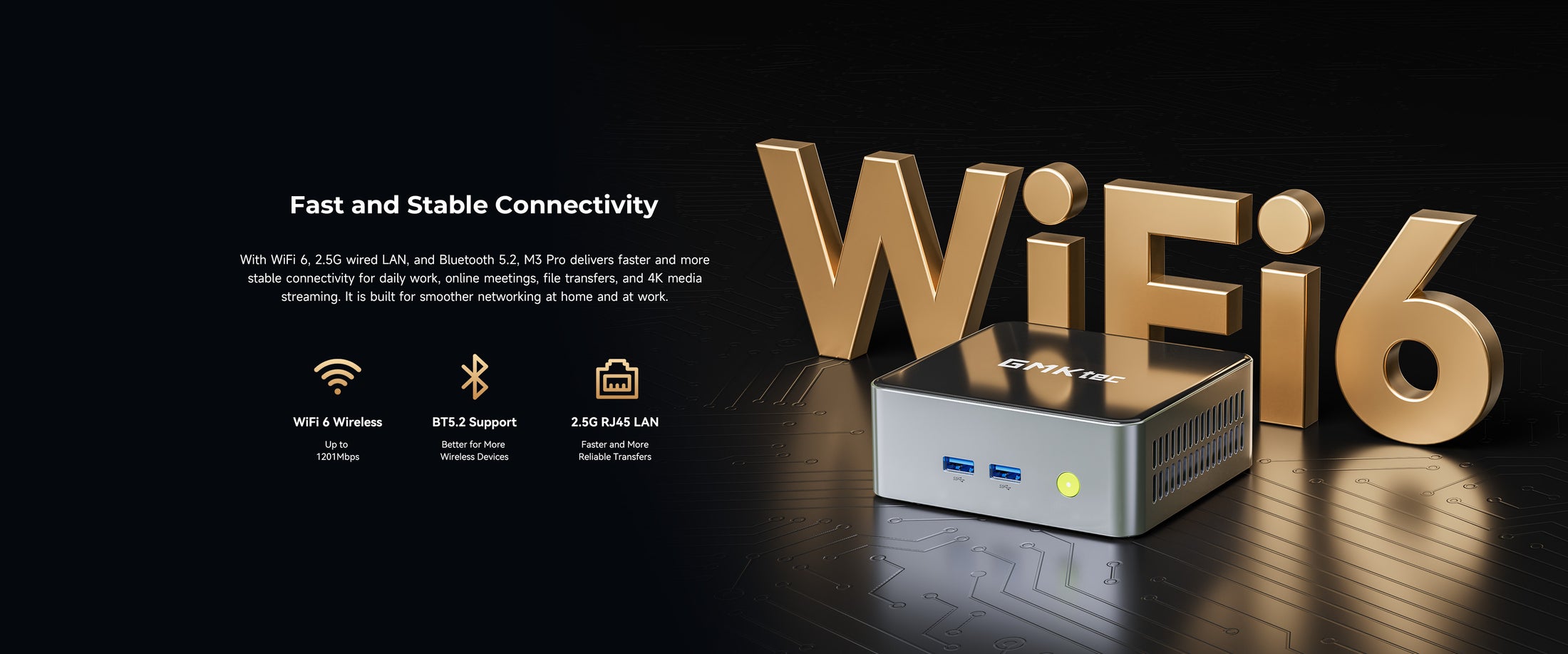

Network
WiFi 6
Realtek 8852BE wireless module
802.11a/b/g/n/ac/ax supported
Theoretical wireless speed: up to 1201Mbps
Bluetooth 5.2
1 × RJ45 2.5G Ethernet port
LAN speed: 2500M / 1000M / 100M / 10M
Intel i226 Ethernet chip
Realtek 8852BE wireless module
802.11a/b/g/n/ac/ax supported
Theoretical wireless speed: up to 1201Mbps
Bluetooth 5.2
1 × RJ45 2.5G Ethernet port
LAN speed: 2500M / 1000M / 100M / 10M
Intel i226 Ethernet chip

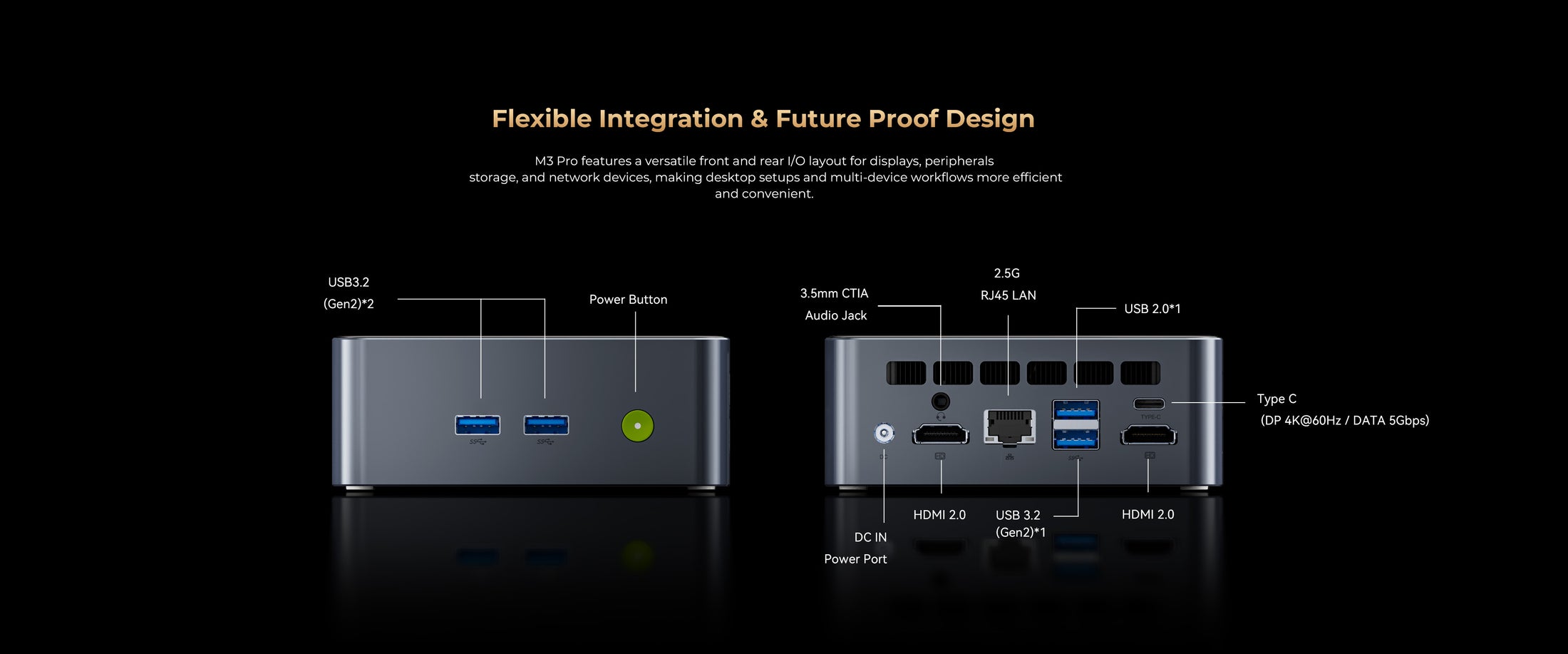

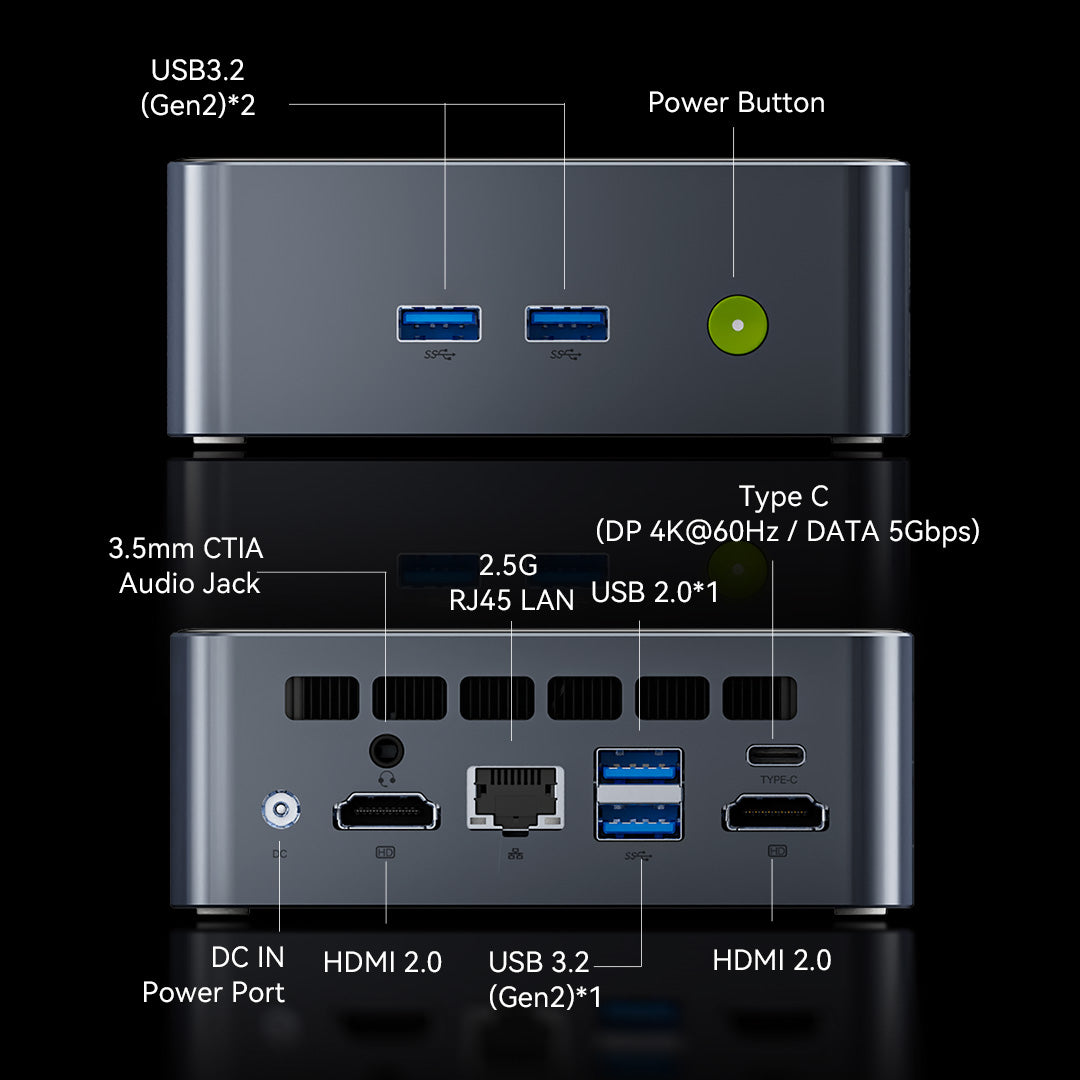

Front I/O
2 × USB-A 3.2 Gen 2, up to 10Gbps
Power button
White power indicator light
Power button
White power indicator light
Rear I/O
1 × USB-A 3.2 Gen 2, up to 10Gbps
1 × USB-A 2.0, up to 480Mbps
2 × HDMI 2.0, 4K@60Hz
1 × USB-C, DP output 4K@60Hz / Data 5Gbps
1 × RJ45 2.5G LAN
1 × 3.5mm CTIA headphone jack
1 × DC IN power port
1 × USB-A 2.0, up to 480Mbps
2 × HDMI 2.0, 4K@60Hz
1 × USB-C, DP output 4K@60Hz / Data 5Gbps
1 × RJ45 2.5G LAN
1 × 3.5mm CTIA headphone jack
1 × DC IN power port
Power Supply
DC IN, 5.5 / 2.5mm
20V / 5A, 100W power adapter
External power adapter required
Built-in button cell battery
20V / 5A, 100W power adapter
External power adapter required
Built-in button cell battery
Cooling
Copper-pipe single-fan cooling design
Dual-direction convection airflow
Designed for quieter and more stable performance
Dual-direction convection airflow
Designed for quieter and more stable performance
Dimensions
Product Dimensions: 114 × 106 × 42.5mm
Package Dimensions: 120 × 158 × 164mm
Package Dimensions: 120 × 158 × 164mm
Weight
Bare Unit Weight: approx. 430g
Full Package Weight: approx. 1470g
Full Package Weight: approx. 1470g
Design & Materials
Grey Black colour
Metal sandblasted anodised middle frame
Tempered glass mirror top cover
Plastic bottom shell
Compact square mini PC design
Metal sandblasted anodised middle frame
Tempered glass mirror top cover
Plastic bottom shell
Compact square mini PC design

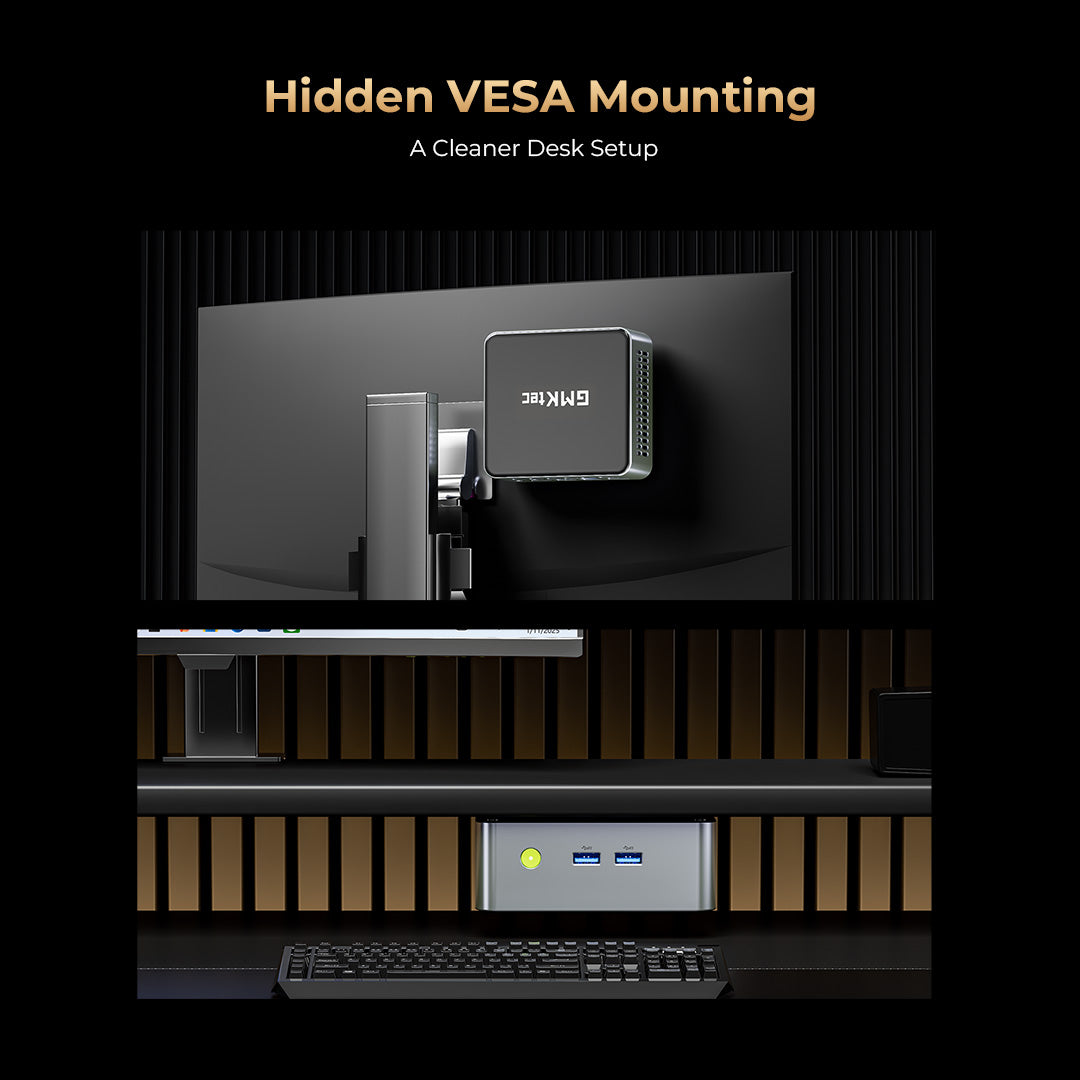

Mounting
VESA mount supported
Can be mounted behind a compatible monitor for a cleaner desktop setup
Can be mounted behind a compatible monitor for a cleaner desktop setup
Operating System
Windows 11 Pro
Default system language: English
14 languages supported
Ships without Office 365
Default system language: English
14 languages supported
Ships without Office 365
Package Contents
GMKtec NucBox M3 Pro Mini PC
Power Adapter
HDMI Cable
VESA Mount
User Manual
Warranty Card
Power Adapter
HDMI Cable
VESA Mount
User Manual
Warranty Card
Warranty & Certifications
1-Year Warranty
Operating Temperature: 0°C to 40°C
Certifications: CCC, CE, FCC, RoHS, MIC, CEC, China Energy Efficiency, UL Report, Air Transport Identification Report
Operating Temperature: 0°C to 40°C
Certifications: CCC, CE, FCC, RoHS, MIC, CEC, China Energy Efficiency, UL Report, Air Transport Identification Report
