In Stock

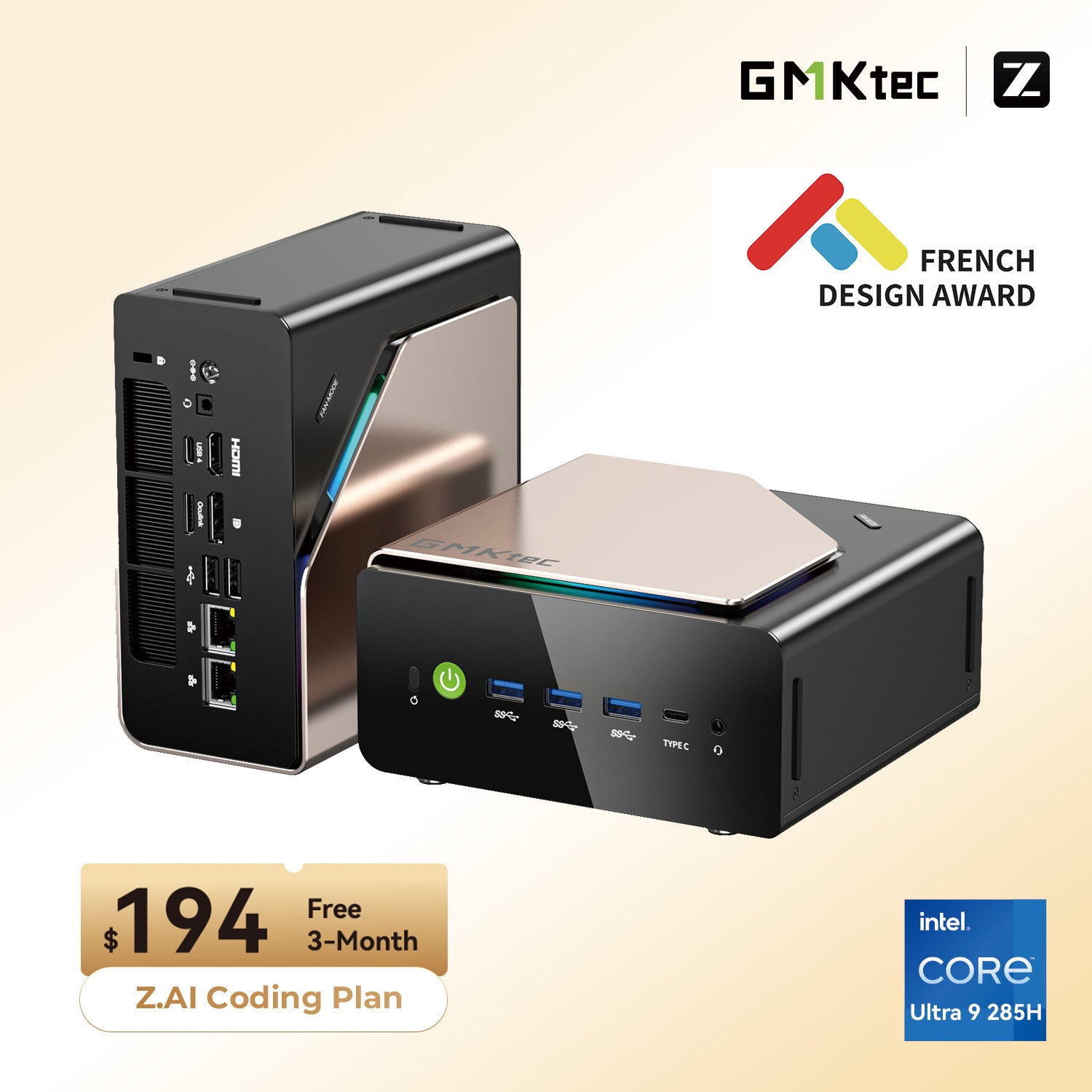

GMKtec EVO-T1 Intel Core Ultra 9 285H AI Mini PC
£679.99
£979.99
VAT included where applicable. If you are contacted regarding customs clearance for your shipment, please contact our support team for assistance.
- Processor & AI Performance: Intel® Core™ Ultra 9 285H processor with 16 cores, 16 threads and speeds of up to 5.4 GHz, delivering up to 99 TOPS of AI performance with Intel® AI Boost
- Memory & Storage: 64 GB DDR5 6400 MT/s memory with support for up to 12 TB of storage across 3 × M.2 PCIe 4.0 SSD slots
- Graphics: Intel® Arc™ 140T GPU for strong graphics performance, creative workloads and AI-assisted tasks
- Display & Connectivity: Supports up to four displays with output up to 8K @ 60 Hz or 4K @ 144 Hz, plus HDMI 2.1, DisplayPort 1.4, USB4, Wi-Fi 6 and Bluetooth 5.2
- Ideal For: Local AI workloads, content creation, multitasking and high-performance desktop computing
GMKtec EVO-T1 Intel Core Ultra 9 285H AI Mini PC
£679.99
£979.99
Specification
General
Model Name
EVO-T1
CPU
Intel® Core™ Ultra Processors (Series 2)
• 16 cores / 16 threads (6P+8E+2LP hybrid architecture)
• TSMC N3B process
• Max 5.4 GHz
• 24 MB L3 Cache
• TDP: 45-80W (80W max design)
• Overall peak TOPS (Int8): 99 TOPS
• 16 cores / 16 threads (6P+8E+2LP hybrid architecture)
• TSMC N3B process
• Max 5.4 GHz
• 24 MB L3 Cache
• TDP: 45-80W (80W max design)
• Overall peak TOPS (Int8): 99 TOPS
CPU Model
Ultra 9 285H
CPU Socket/Package
FCBGA2049 50 mm x 25 mm
GPU
Intel® Arc™ 140T GPU
• Max dynamic frequency: 2.35 GHz
• GPU peak TOPS (Int8): 77 TOPS
• Max dynamic frequency: 2.35 GHz
• GPU peak TOPS (Int8): 77 TOPS

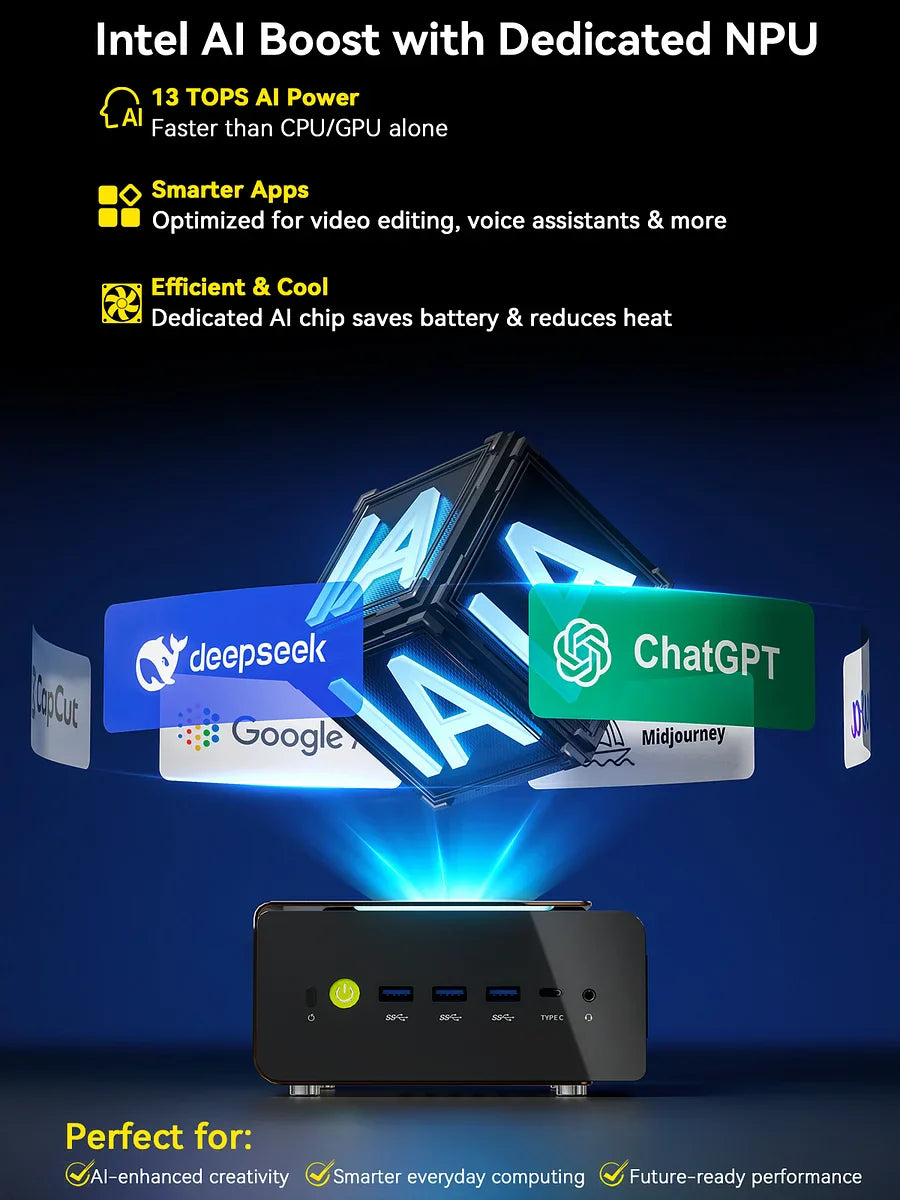

NPU
Intel® AI Boost
• NPU peak TOPS (Int8): 13 TOPS
• NPU peak TOPS (Int8): 13 TOPS
Memory (RAM)
2×DDR5 SO-DIMM dual channel
• 32GB×2=64GB 5600 MT/s
• Supports up to DDR5 6400 MT/s
• 32GB×2=64GB 5600 MT/s
• Supports up to DDR5 6400 MT/s
Primary Storage (ROM)
3×M.2 2280 PCIe4.0×4 SSD
• 1TB/2TB
• 1TB/2TB
Internal Storage Expansion
3×M.2 2280 PCIe4.0×4 slots
• Maximum total storage: 12TB (4TB×3)
• Maximum total storage: 12TB (4TB×3)
Video Output
Through HDMI 2.1×1+DP1.4×1+USB4×1+Type-C×1
• Supports simultaneous quad-display output
• HDMI 2.1: 8K@60Hz or 4K@144Hz (supports CEC)
• DP 1.4 (supports DP++)
• Supports simultaneous quad-display output
• HDMI 2.1: 8K@60Hz or 4K@144Hz (supports CEC)
• DP 1.4 (supports DP++)

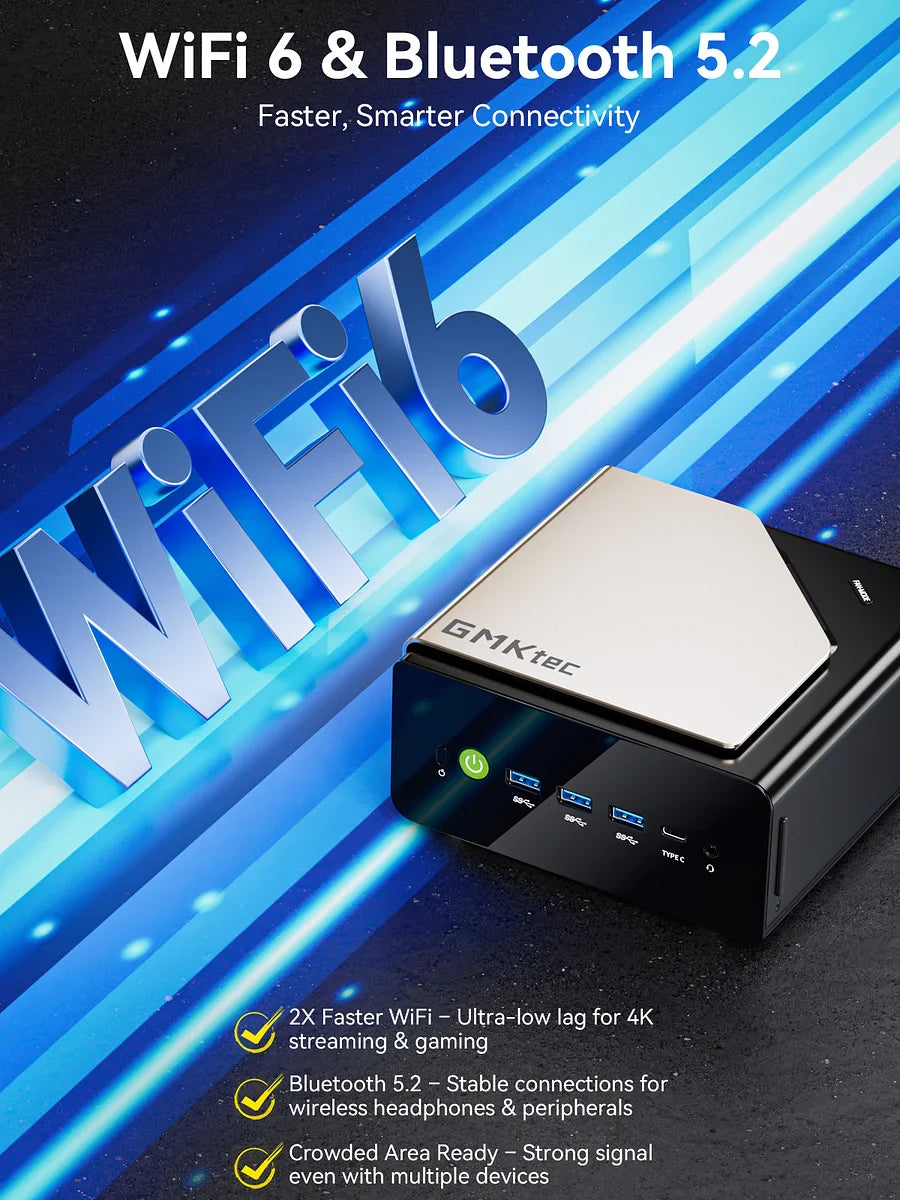

Network
WiFi 6 (AX200)
• Max speed: 2.4Gbps
• Bluetooth 5.2
• Max speed: 2.4Gbps
• Bluetooth 5.2
Power
• Built-in button battery
• Charger: DC IN 19V 6.32A 120W or 19V/7.89A 150W max
• Charger: DC IN 19V 6.32A 120W or 19V/7.89A 150W max

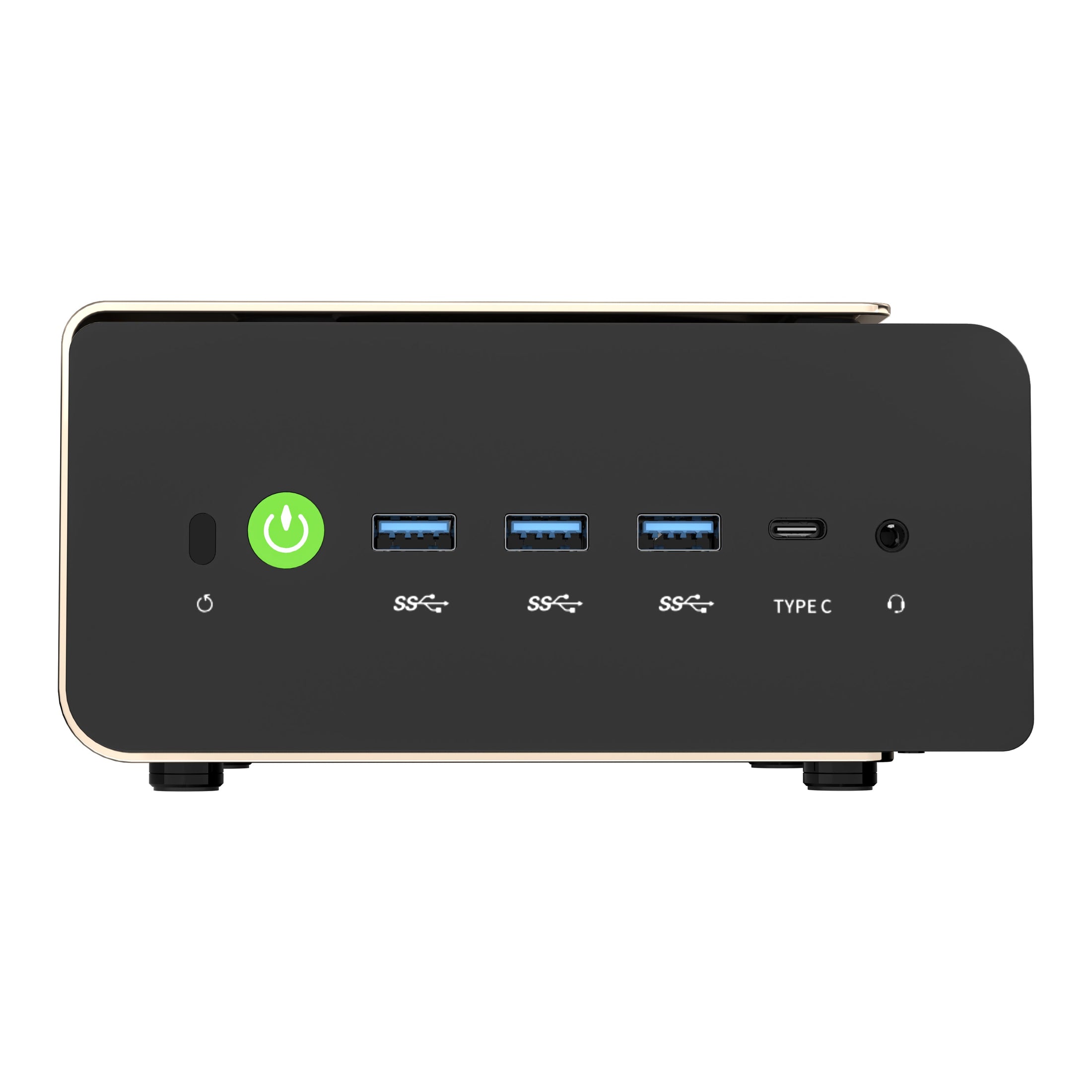

Front I/O
• 1×3.5mm Combo audio jack
• 1×USB3.2 Gen2 Type-C (PD/DP/Data)
• 3×USB3.2 Gen2 Type-A
• Power button with white LED
• Clear CMOS button
• 1×USB3.2 Gen2 Type-C (PD/DP/Data)
• 3×USB3.2 Gen2 Type-A
• Power button with white LED
• Clear CMOS button

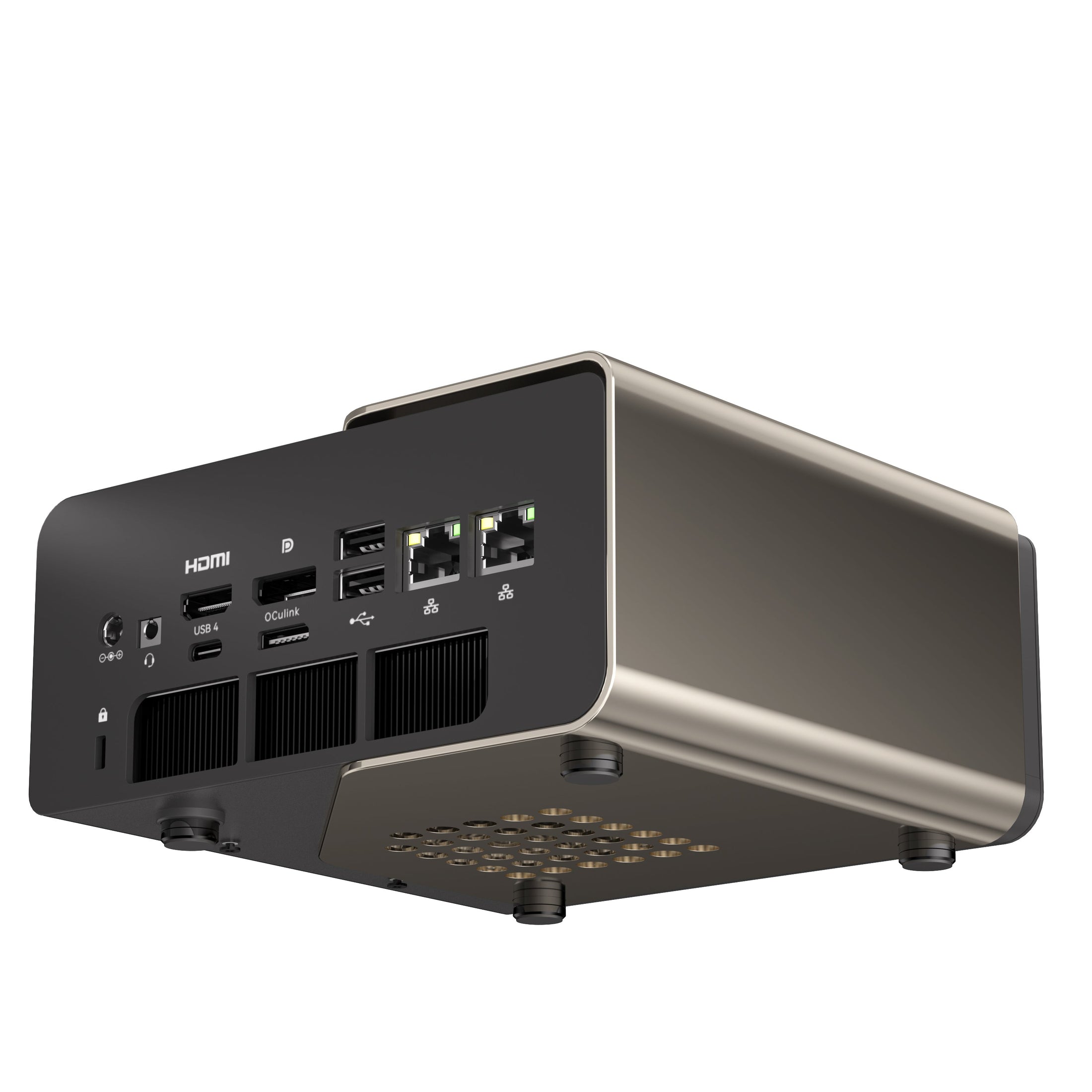

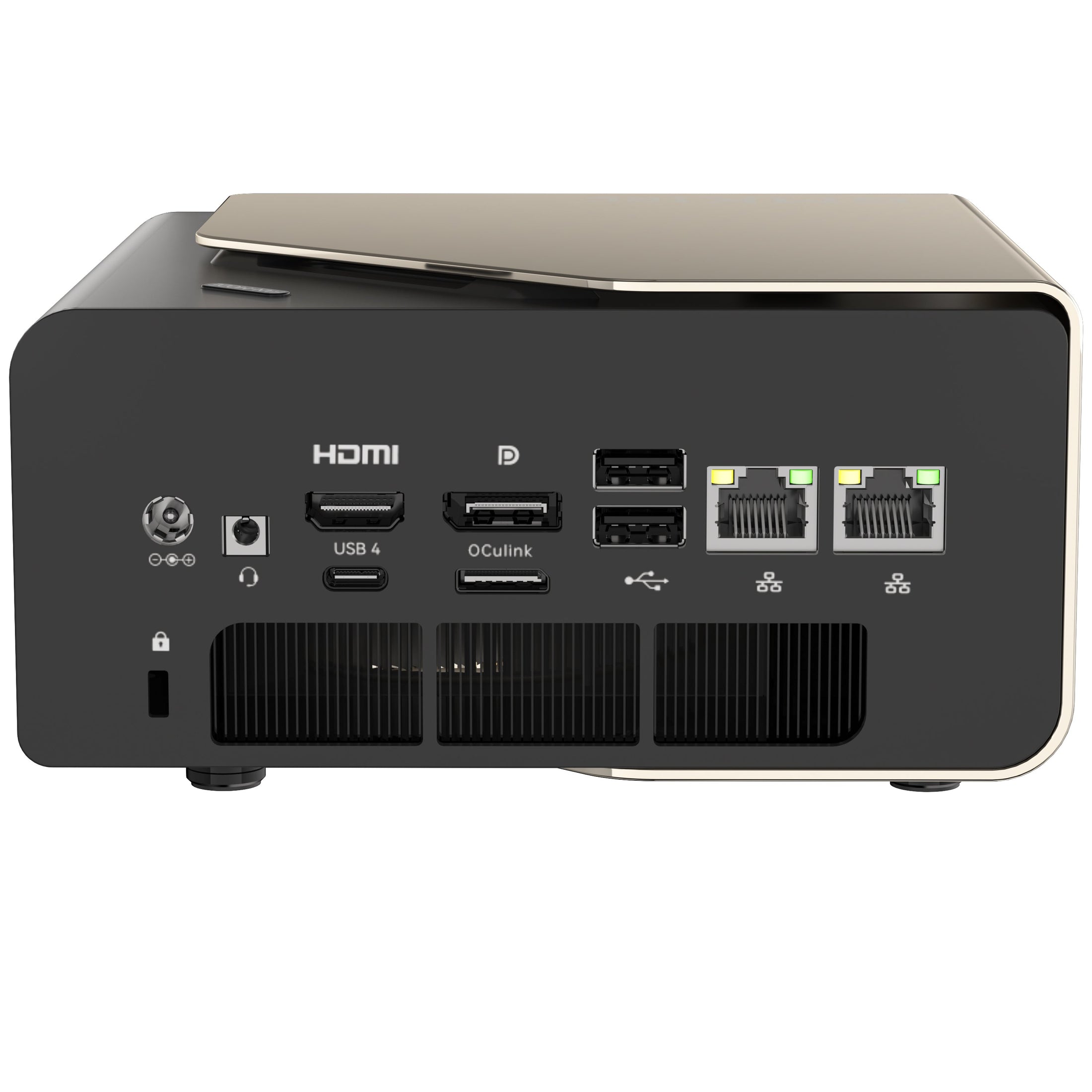

Rear I/O
• 1×5.5×2.5mm charging port
• 1×3.5mm Combo audio jack
• 1×HDMI 2.1
• 1×DP 1.4
• 1×Oculink (PCIe Gen4×4, no hot-plug)
• 2×USB2.0 Type-A (stacked)

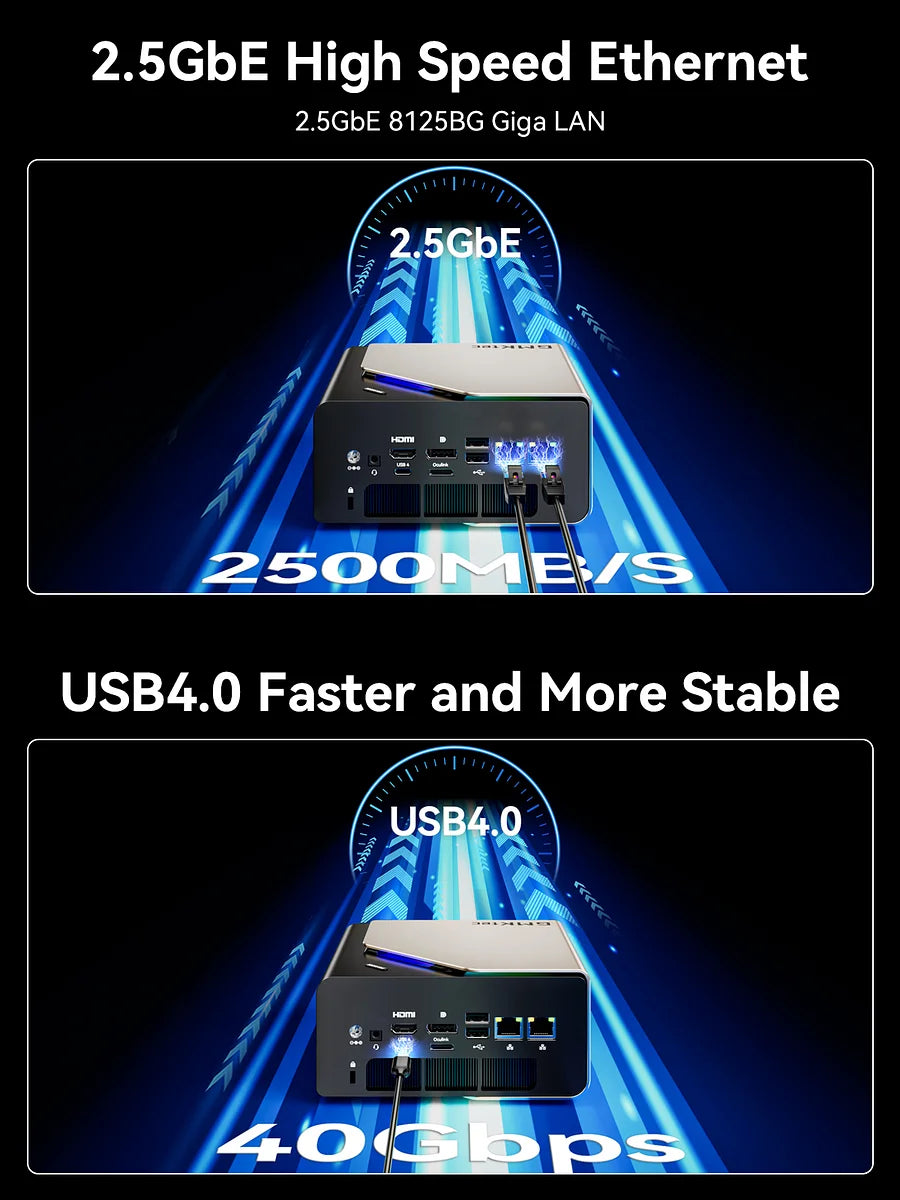

• 2×2.5G LAN (Realtek 8125BG)
• System fan/LED control button (13 lighting effects)
• 1×3.5mm Combo audio jack
• 1×HDMI 2.1
• 1×DP 1.4
• 1×Oculink (PCIe Gen4×4, no hot-plug)
• 2×USB2.0 Type-A (stacked)
• 2×2.5G LAN (Realtek 8125BG)
• System fan/LED control button (13 lighting effects)
OS
Windows 11 Pro
Dimensions
• 154*151*73.6mm
• 910g (Bare metal weight)
• 910g (Bare metal weight)
Key Features
• AI desktop computing center with 182W+ performance score
• Three performance modes: Silent (35W), Balanced (54W), Performance (80W)
• Dual cooling system with VC heat dissipation and intelligent fan control
• WiFi 6 + dual 2.5G LAN for fast networking
• Quad-display support (4K simultaneous output)
• Oculink interface for external GPU expansion
• Built-in 32B Deepseek local AI model
• Three performance modes: Silent (35W), Balanced (54W), Performance (80W)
• Dual cooling system with VC heat dissipation and intelligent fan control
• WiFi 6 + dual 2.5G LAN for fast networking
• Quad-display support (4K simultaneous output)
• Oculink interface for external GPU expansion
• Built-in 32B Deepseek local AI model
